xiB-64, xiB, xiX, xiSpec, xiRay, xiJ, Legacy, xiX-XL, xiX-Xtreme, MX377 accessory

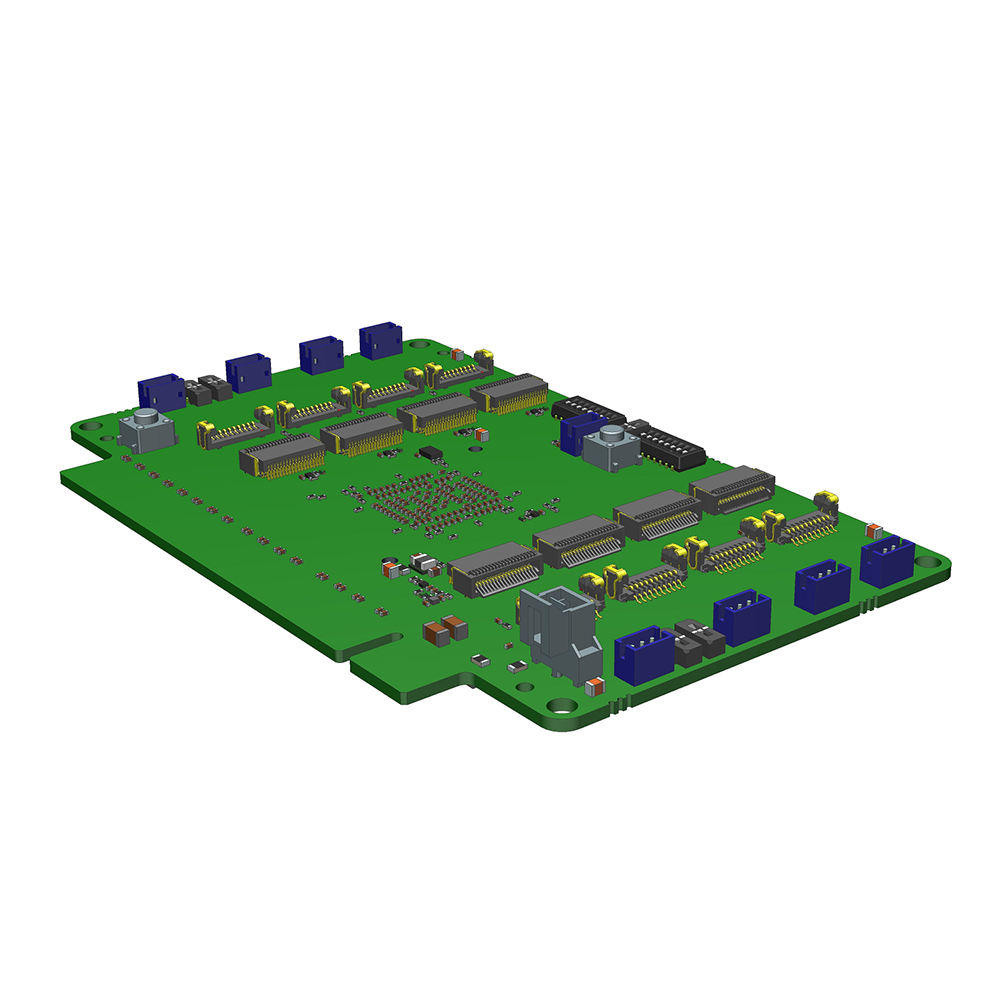

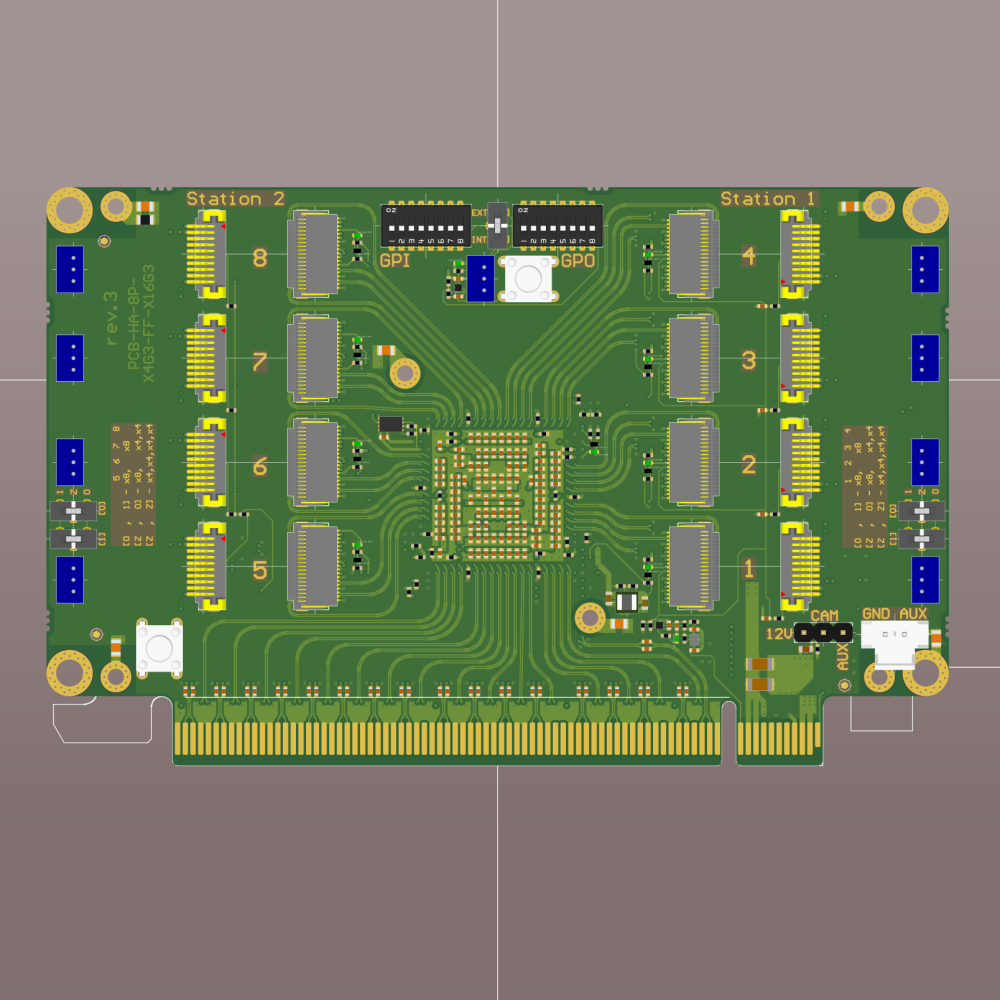

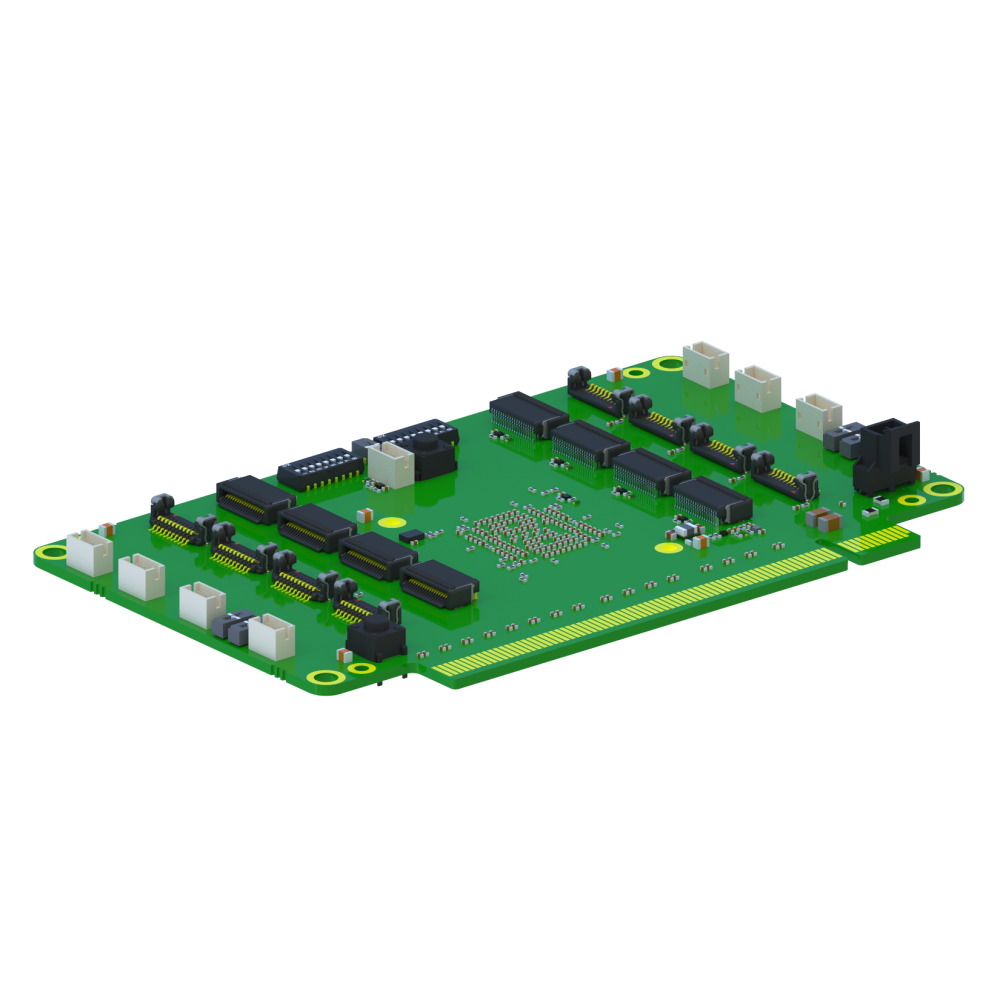

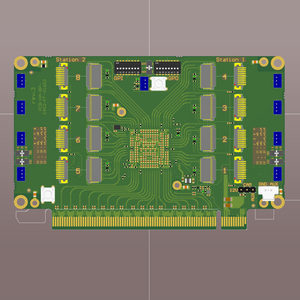

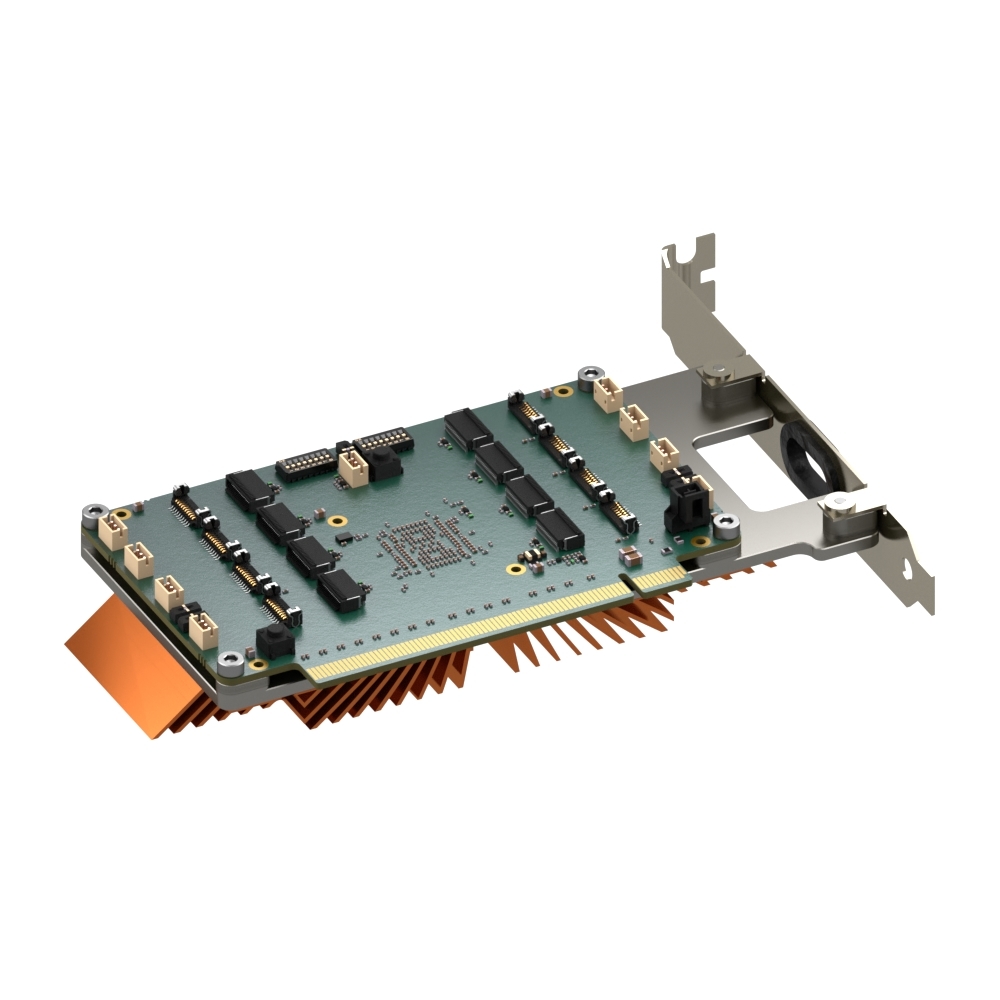

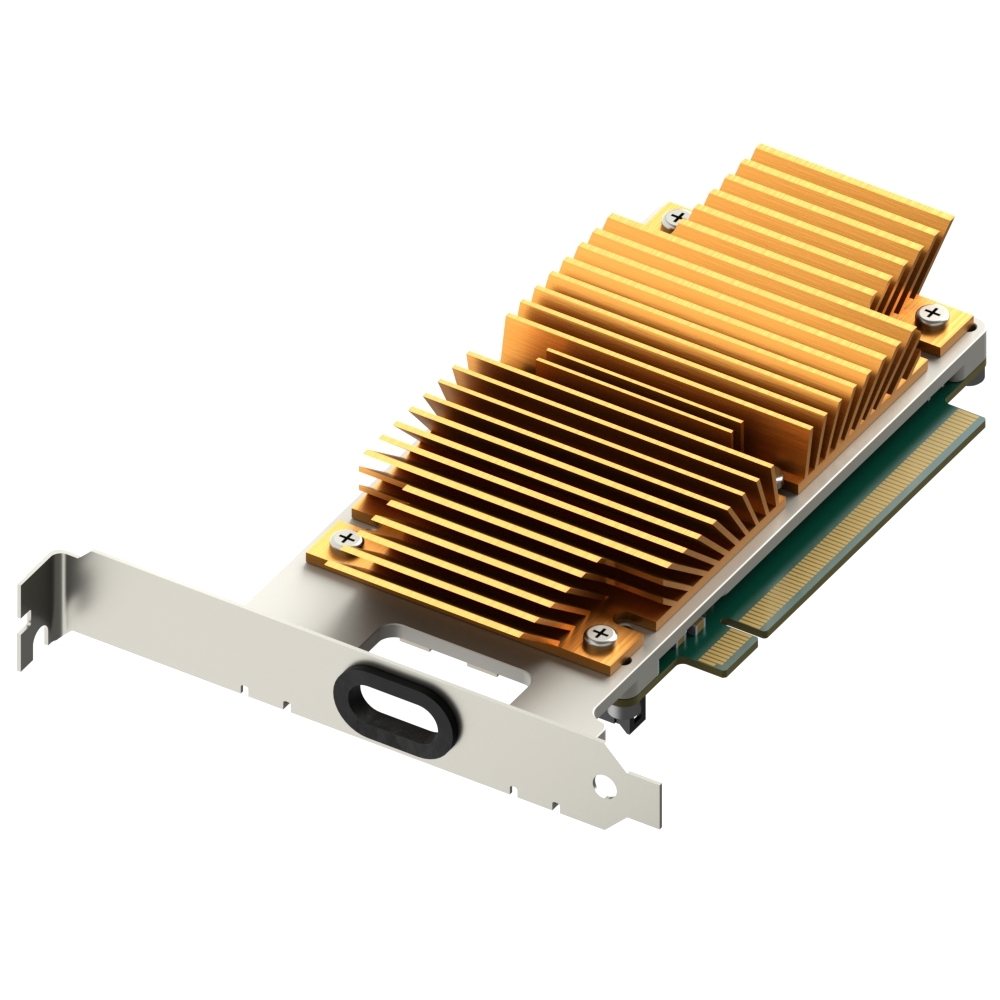

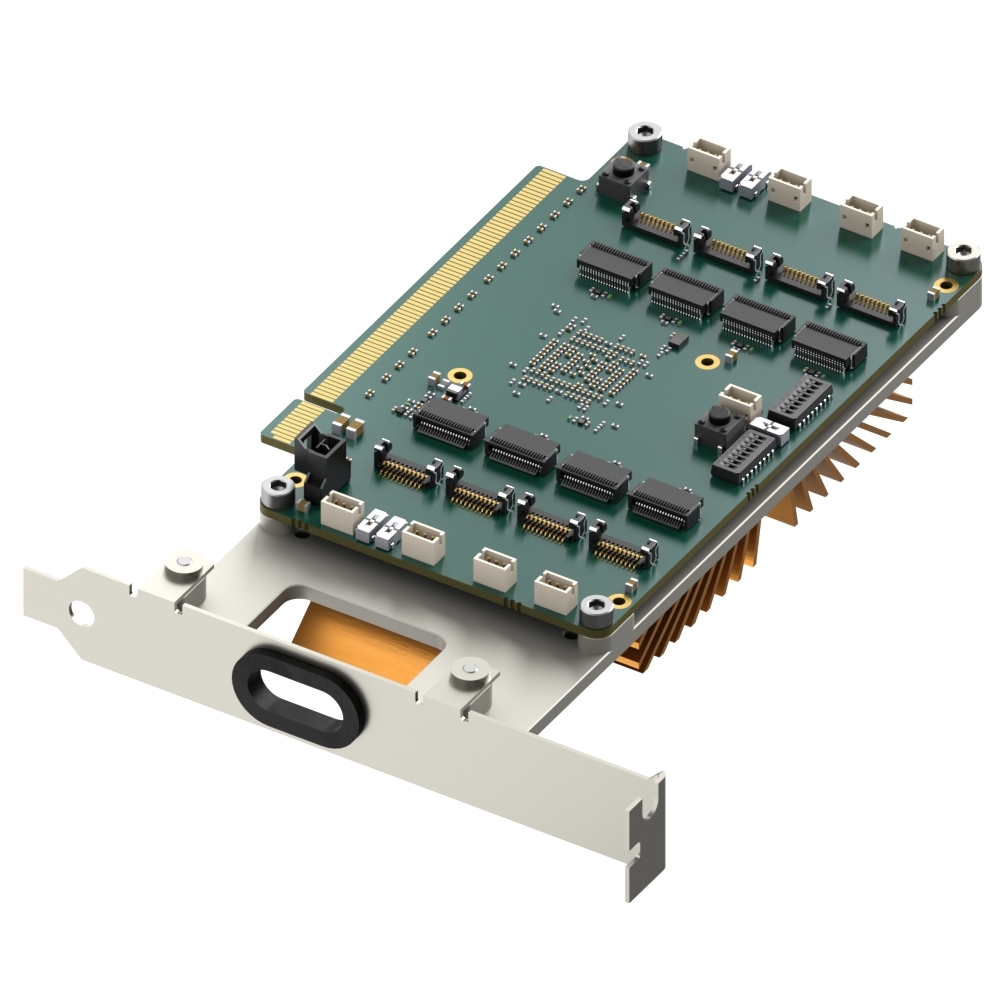

HA-8P-X4G3-FF-X16G3
Host adapter with 8 ports for PCIe Gen.3 x4 Firefly cables
Product statusEngineering-Sample
- 8 slots for PCIe Gen3 x8 Firefly cables
- Can connect xiX camera models - Firefly versions
- Supports Gen 1, Gen 2 and Gen 3 (8.0 GT/s) data rates
- Use with PCIe® Active Fiber Optical Cable or copper cables
- Input per camera - 10 Gbps
- Output - 128 Gbps
- Size - length 200 mm x width 110 mm x height 80 mm
- Weight 547 grams
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
