Revolutionize your scientific imaging, when every photon counts. Scientific cameras, equipped with the latest BSI sCMOS sensor and advanced Peltier cooling (TEC).
xiJ-rechts-cut

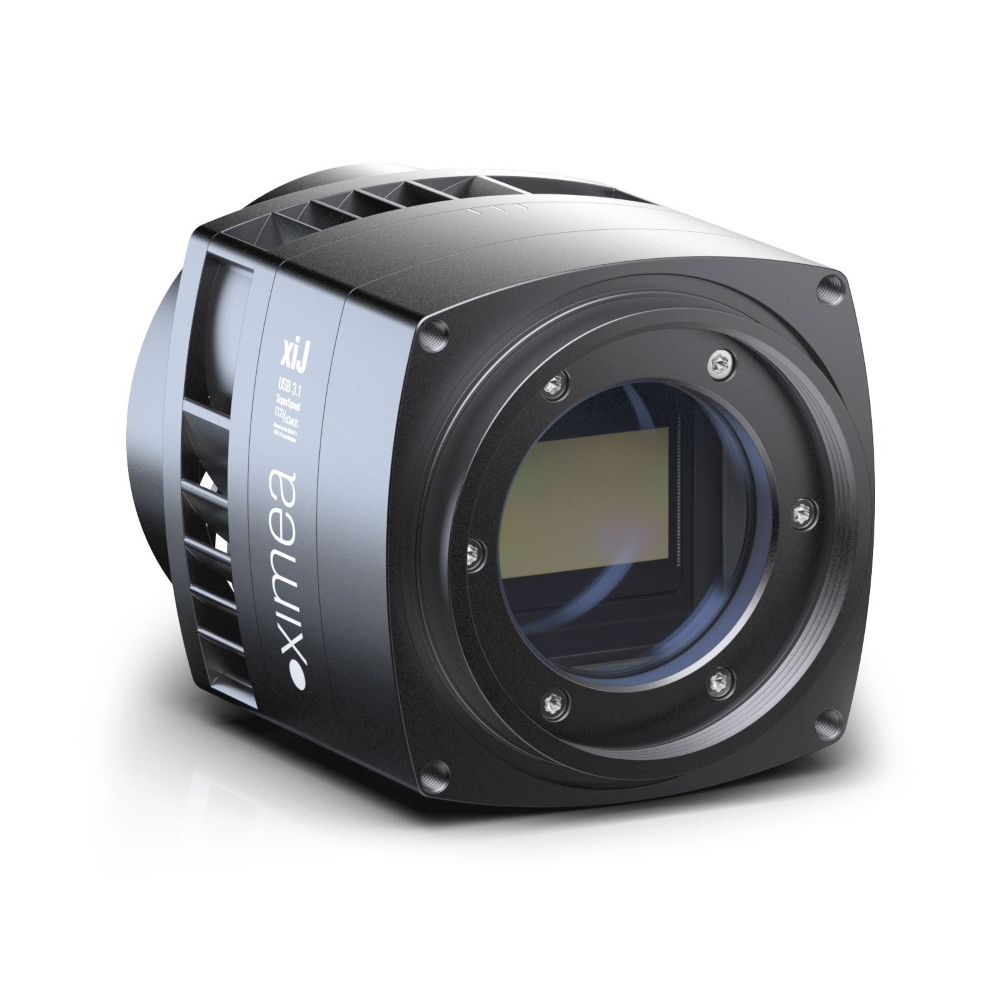

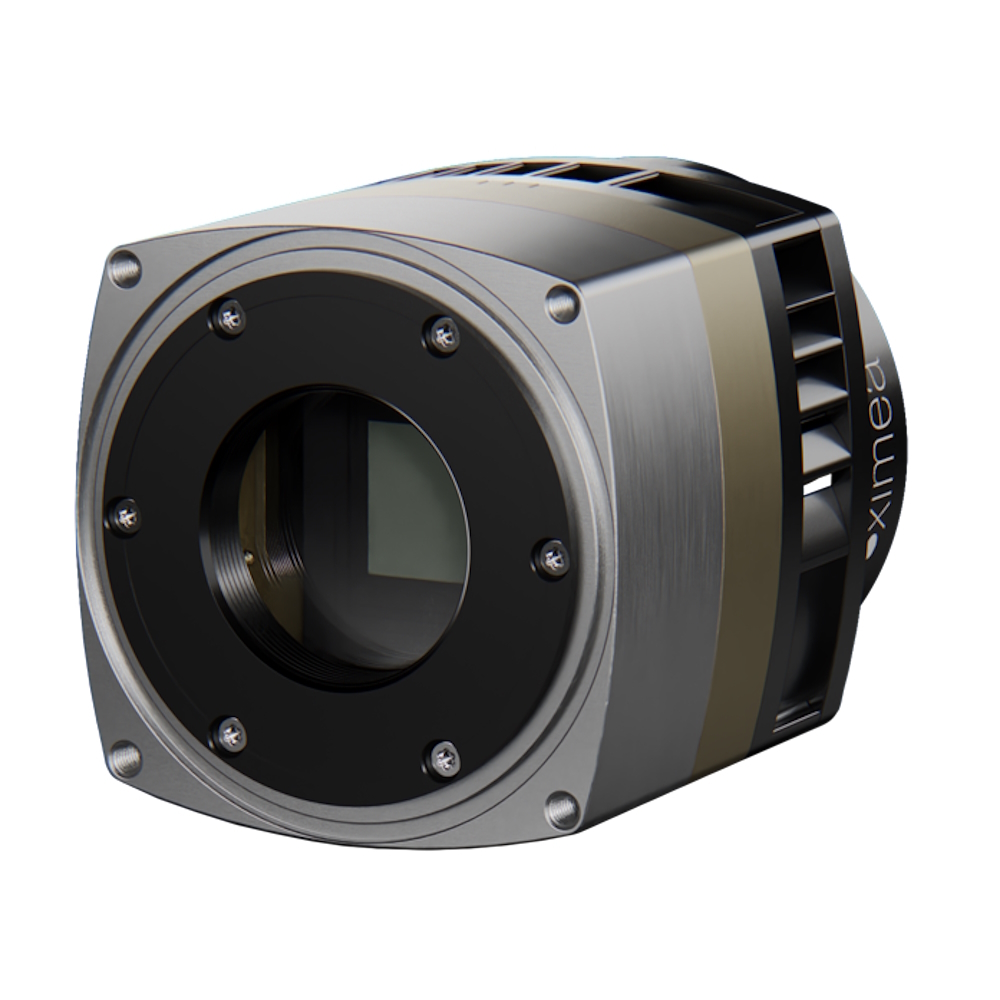

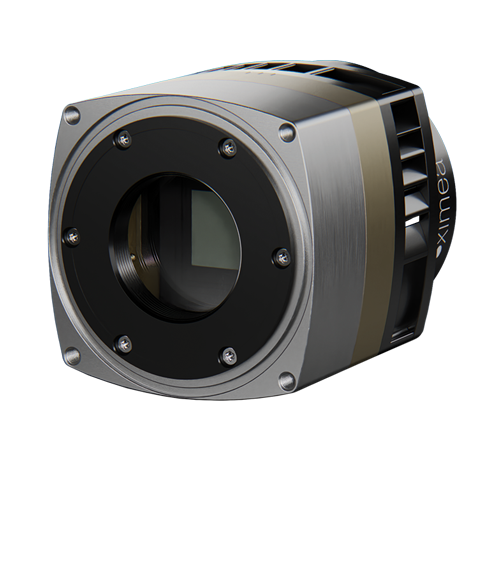

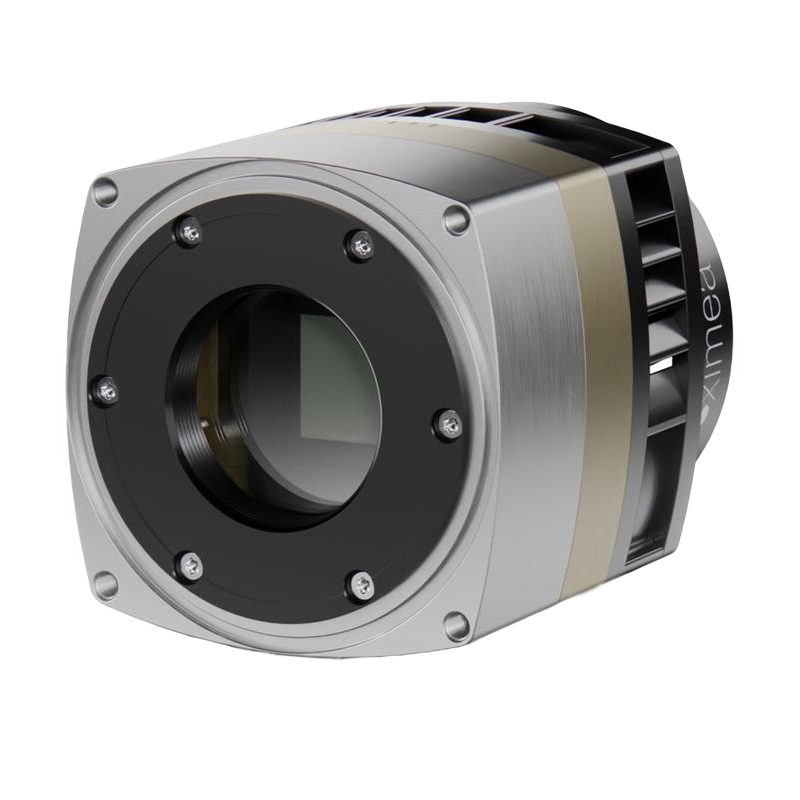

What is xiJ?

Meticulously engineered to deliver unparalleled performance and versatility, our latest scientific imaging systems are compact and highly sensitive.
Equipped with Gpixel's latest scientific complementary metal-oxide-semiconductor (sCMOS) sensors utilizing backside illumination sensor architecture (BSI), they provide high spatial-temporal resolution (e.g. 15 Mpix up to 48 FPS) and exceptional data acquisition capabilities for a wide range of scientific applications, even in low-light conditions. Utilizing advanced thermoelectric Peltier cooling, an impressive temperature reduction down to -25 °C can be achieved, enabling a minimal dark current of <0.6 [e-/s/pix at -20 °C], providing a stable imaging environment even in challenging conditions.
In addition, our system's housing is carefully crafted from stainless steel and copper to enhance thermal stability and ensure durability. Indium seals further contribute to the long-term stability of the sensor chamber climate, providing a reliable and robust platform for your experiments.
Customize your imaging setup with ease by choosing from a variety of lens mounts, including C-mount and M42-mount. All of these features are easily accessible, using efficient power management and streamlined connectivity via USB3 interface with USB-C connector that takes advantage of the power delivery protocol (PD2.0).

  • Scientific grade family of sCMOS sensors from Gpixel

  • Resolutions 4.2 Mpix and 15 Mpix

  • Includes versions with backside illuminated sensors

  • Extremely low readout noise architecture, down to 1.2 e-

  • Dynamic range up to 90 dB

  • Quantum efficiency up to 95 %

  • Crystal clear 12, 14 and 16 bit/pixel images

  • Partial readout and binning modes for enhanced sensitivity and speed

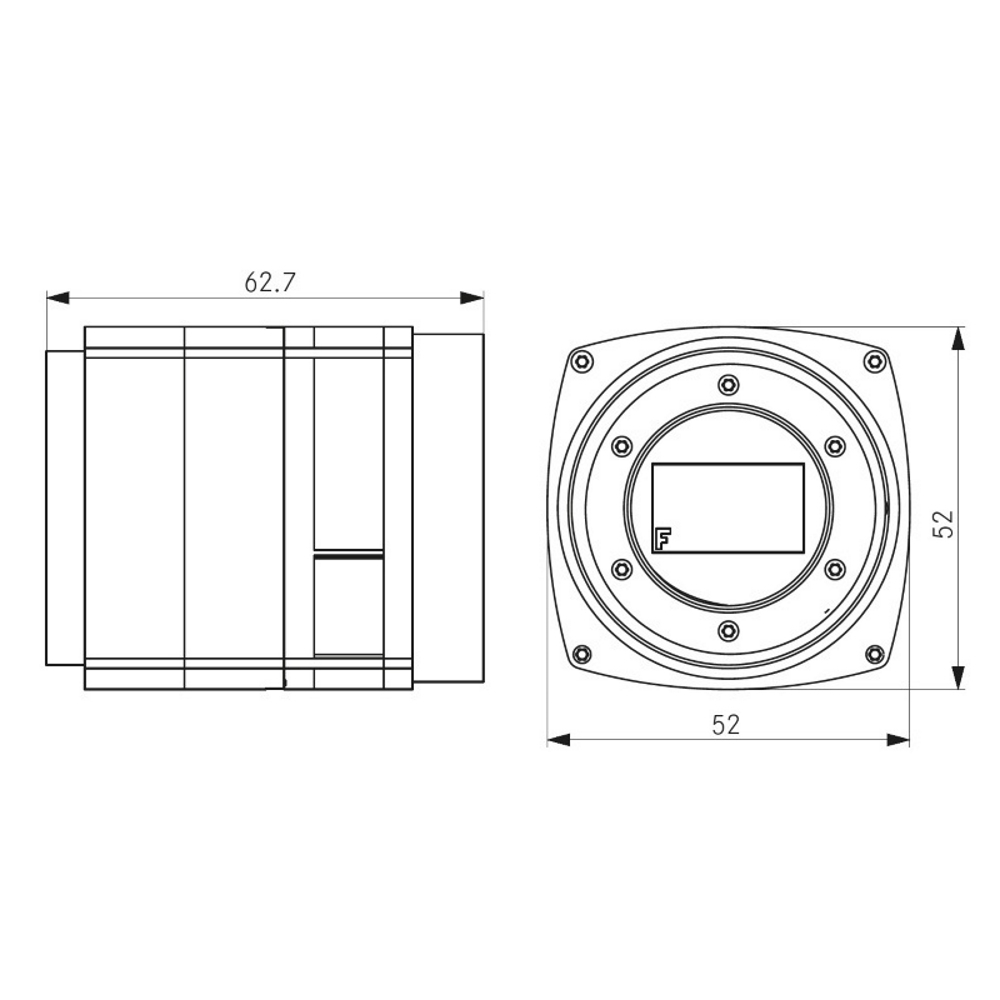

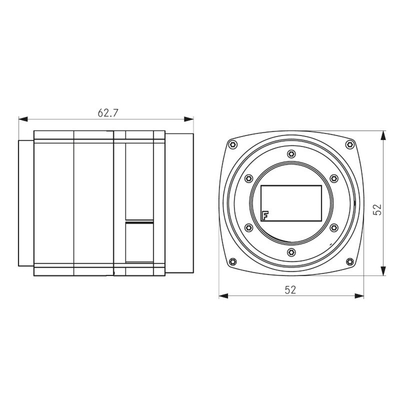

  • Compact dimensions down to 52 x 52 x 62 mm

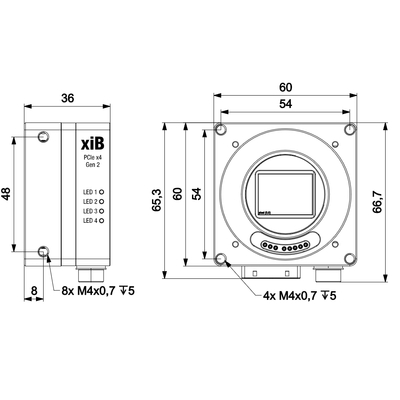

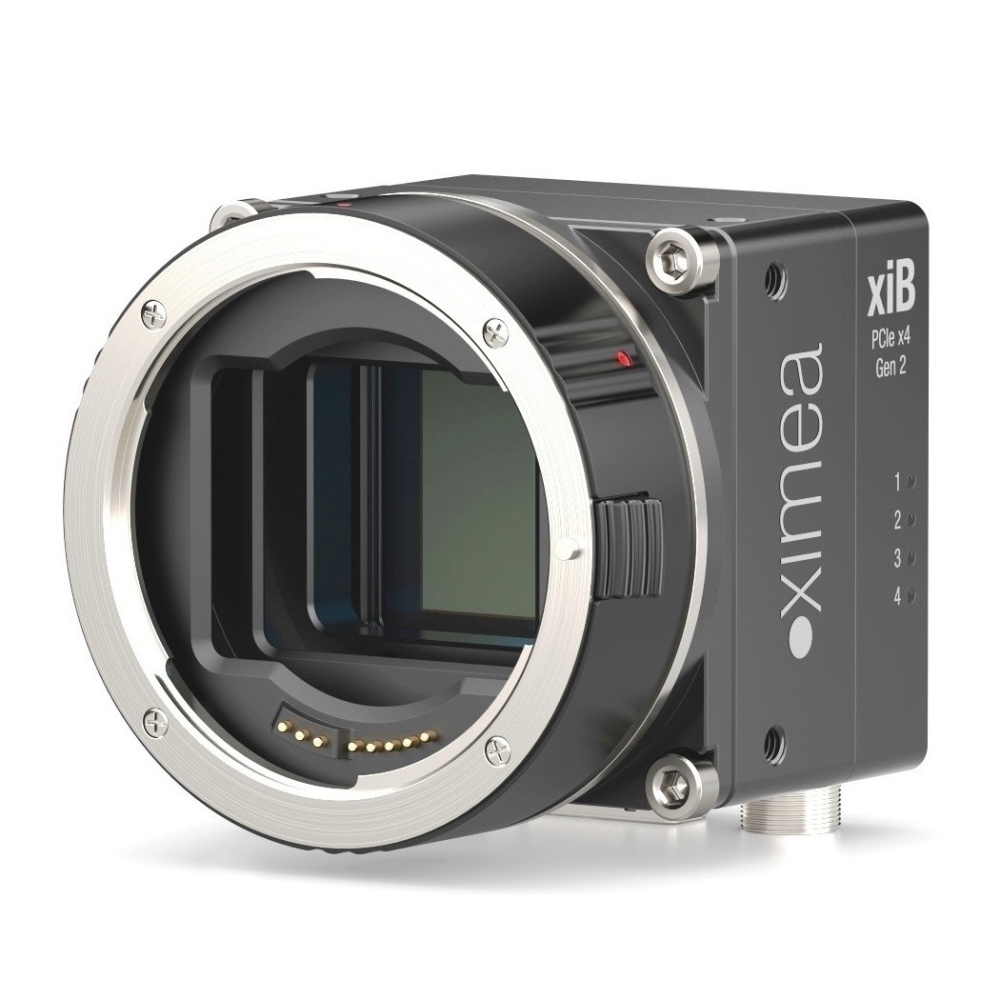

  • Available in high-speed PCIe interface or cooled with USB3

  • Thermoelectric Peltier cooling with additional air or water module

  • External triggering and synchronization functionality

  • Variety of sensor options, which can be further customized

Models of USB3 or PCIe cameras sCMOS sensors including BSI versions

Model Sensor model Resolution Sensor size Pixel size Peak QE Saturation Capacity Readout noise Dynamic range Frame rate
MJ042MR-GP-P11 GSENSE400  4.1 MPix 2"  11 µm 58%  120000 e- 1.5 e- 96 dB 48 FPS
MJ042MR-GP-P6 GSENSE2020e  4.1 MPix 1.2"  6.5 µm 72%  45000 e- 2 e- 87 dB 48 FPS
MJ042MR-GP-P6-BSI GSENSE2020 BSI  4.1 MPix 1.2"  6.5 µm 94%  54000 e- 1.2 e- 90 dB 58 FPS
CB042MG-GP-BSI GSENSE2020 BSI  4.1 MPix 1.2"  6.5 µm 91%  54000 e- 1.2 e- 90 dB 73 FPS
CB042MG-GP GSENSE2020e  4.1 MPix 1.2"  6.5 µm 72%  45000 e- 2 e- 87 dB 93 FPS
MX042MR-GP-BSI-X4G2 GSENSE2020 BSI  4.1 MPix 1.2"  6.5 µm 91%  54000 e- 1.2 e- 90 dB 73 FPS
MJ042MR-GP-P11-BSI GSENSE400 BSI  4.1 MPix 2"  11 µm 95%  90000 e- 1.7 e- 95 dB 45 FPS
MJ042MR-GP-P11-BSI-UV GSENSE400 BSI  4.1 MPix 2"  11 µm 95%  80000 e- 2 e- 95 dB 48 FPS
MJ150MR-GP GSENSE5130  15.1 MPix APS-C  4.25 µm 72%  16500 e- 1.6 e- 77 dB 16 FPS
SWIPE FOR MORE
If you are looking for specific sensor versions (like taped glass) or lower cooling temperatures, please contact our sales team.

Advantages for Applications using compact cameras with sCMOS

xiJ-application
SCIENTIFIC
Equipped with sCMOS sensors for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging.
EFFICIENT
Scientific CMOS BSI (backside illuminated) technology enables applications requiring the highest sensitivity from the UV wavelength range through the NIR.
FUNCTIONAL
Flexible binning configurations, ability to utilize RAW data or dual amplifier HDR imaging capabilities for the best results in Dynamic range or Full well capacity.
COOL
Thermoelectric Peltier sensor cooling down to -20 °C, enhanced with air fan or liquid cooler module option.
SIMPLE
USB-C interface with power delivery (PD) protocol for single cable operation.
RELIABLE
Sensor in vacuum for sustained temperature condition and protection. Indium seals for long-term stability.
ROBUST
CNC machined stainless steel, copper and aluminium alloy housing components.
COMPATIBLE
Windows, Linux, MacOS. Support for various machine vision libraries.
COMPACT
52 x 52 x 65 mm compact housing with C-mount and M42 mount.

Utilization of sCMOS qualities in various fields and applications

Scientific-cell-sorting-microfluidics-neurology-fluorescence-microscopy-applications
Fluorescence
Förster resonance energy transfer (FRET), fluorescence recovery after photobleaching (FRAP), fluorescence in situ hybridization (FISH), total internal reflection fluorescence (TIRF), high-speed multicolor and light sheet.
Biomedical-cell-biology-cytometry-gene-sequencing-DNA-analysis-applications
Biomedical
Cell biology, cytometry, biochip reading, protein/lipid trafficking, membrane dynamics, DNA sequence and gene expression analysis, biophysics, biometrics, genomics, ion signaling and transport physiology, Corona detection.
Microscopy-medical-scientific-imaging-fluorescence-ophthalmology-retinal-applications
Microscopy
Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), widefield fluorescence microscopy.
Life-science-tomography-endoscopy-phosphorescence-digital-pathology-applications
Life science
Endoscopy, phosphorescence, digital pathology, ophthalmology, gated stimulated emission depletion (GSTED), electrophysiology, optical coherence tomography (OCT), calcium, ratiometric, voltage sensitive dyes, neuroscience.
Astronomy-space-exploration-bose-einstein-condensation-pulsar-imaging-applications
Space exploration
Bose-Einstein condensation, BEC dynamics, nanoparticle, astronomy, solar polarimetry, pulsar imaging, space debris and NEO tracking, fluorescence correlation spectroscopy (FCS), astrophysics.
Material-science-photoluminescence-spectroscopy-minerology-crystallography-applications
Material science
Photoluminescence spectroscopy, mineralogy, photovoltaic inspection, coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, quantum dots and optics, intrinsic, spinning disk confocal imaging.
