CB042MG-GP

Scientific grade camera with 4.1 Mpix Gpixel GSENSE2020e sCMOS sensor and PCIe Gen 2 interface

Product statusEngineering-Sample
Sensor vendorGpixel
Sensor modelGSENSE2020e
Sensor technologysCMOS
Shutter typeGlobal shutter, Rolling shutter
Frame rate93 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
Built with the latest sCMOS sensors from the Gpixel's GSENSE family focused on sensitivity and speed - up to 37 Mpix resolution
Highlight_Functional
FUNCTIONAL
Flexible binning configurations, ability to utilize RAW data or dual amplifier HDR imaging capabilities for the best results in Dynamic range or Full well capacity.
Highlight_Cool
COOL
Thermoelectric Peltier sensor cooling down to -20 °C, enhanced with air fan or liquid cooler module option.
Highlight_Scientific
SCIENTIFIC
Equipped with sCMOS sensors for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging.
Specification
Sensor properties
Resolution 4.1 MPix
Sensor resolution 2048 x 2048
Sensor vendor Gpixel
Sensor model GSENSE2020e
Sensor type Monochrome
Sensor technology sCMOS
Sensor size 1.2"
Sensor active area 13 x 13 mm
Sensor diagonal 18.8 mm
Pixel size 6.5 µm
Shutter type Global shutter, Rolling shutter
Camera properties
Frame rate 93 FPS
Bits 10, 12, 2 x 10, 2 x 12 bits
On-chip downsampling 2x2
Interface PCIe Gen 2
Data interface speed 16 Gbit/s
Data connector type PCIe-iPass-X4G2
GPIO count Inputs: 6, Outputs: 6
Exposure minimum 8 µs
Exposure maximum 30 s
Power consumption 5.6 Watt
Heat dissipation Optional Heatsink
Sensor cooling No, No
Special features HDR, Dual ADC
EMVA 1288 results
Dynamic range 87 dB
Saturation Capacity 45000 e-
Readout noise 2 e-
Signal to noise ratio 46 dB

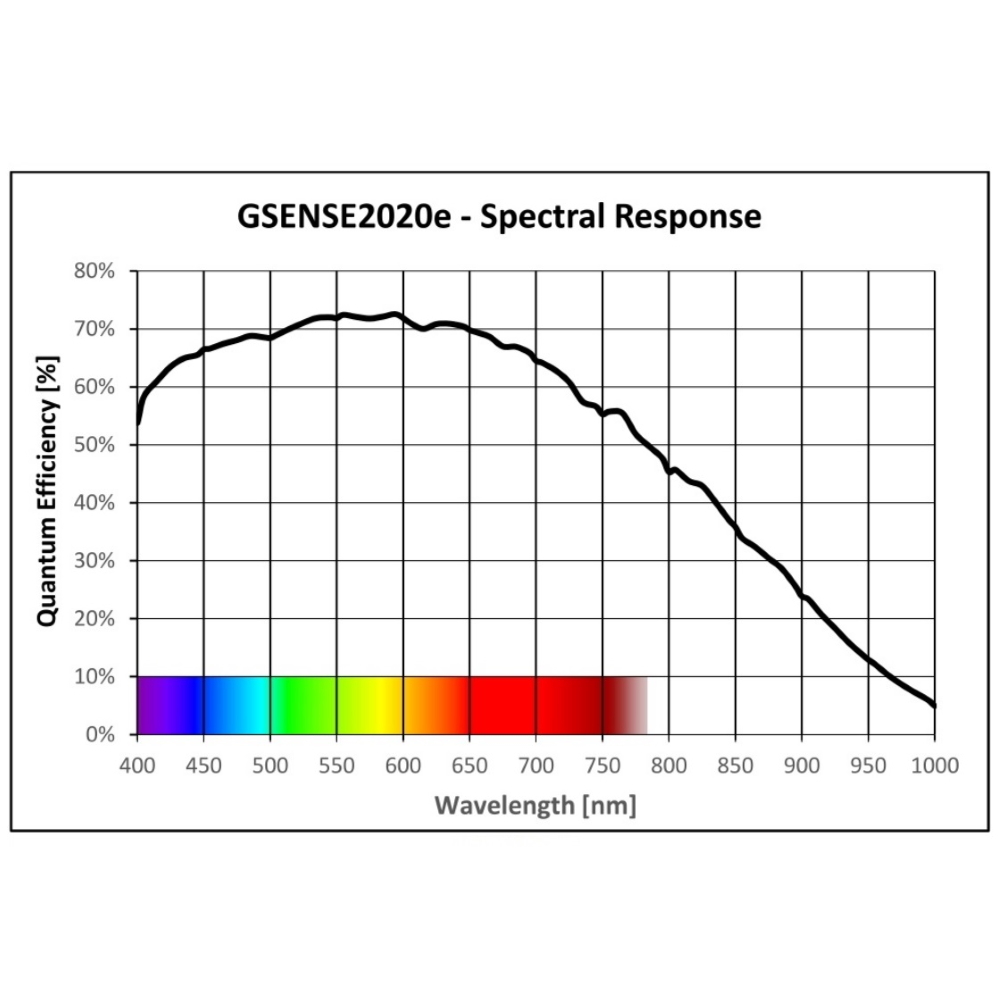

Peak QE 72%
Spectral Range 400 - 1000 nm
Mechanical properties
Lens mount C-mount, EF-mount option
Enclosure type Standard housing

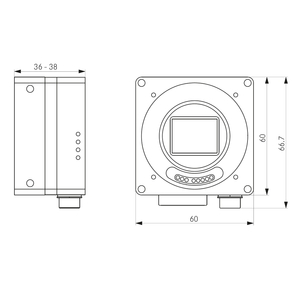

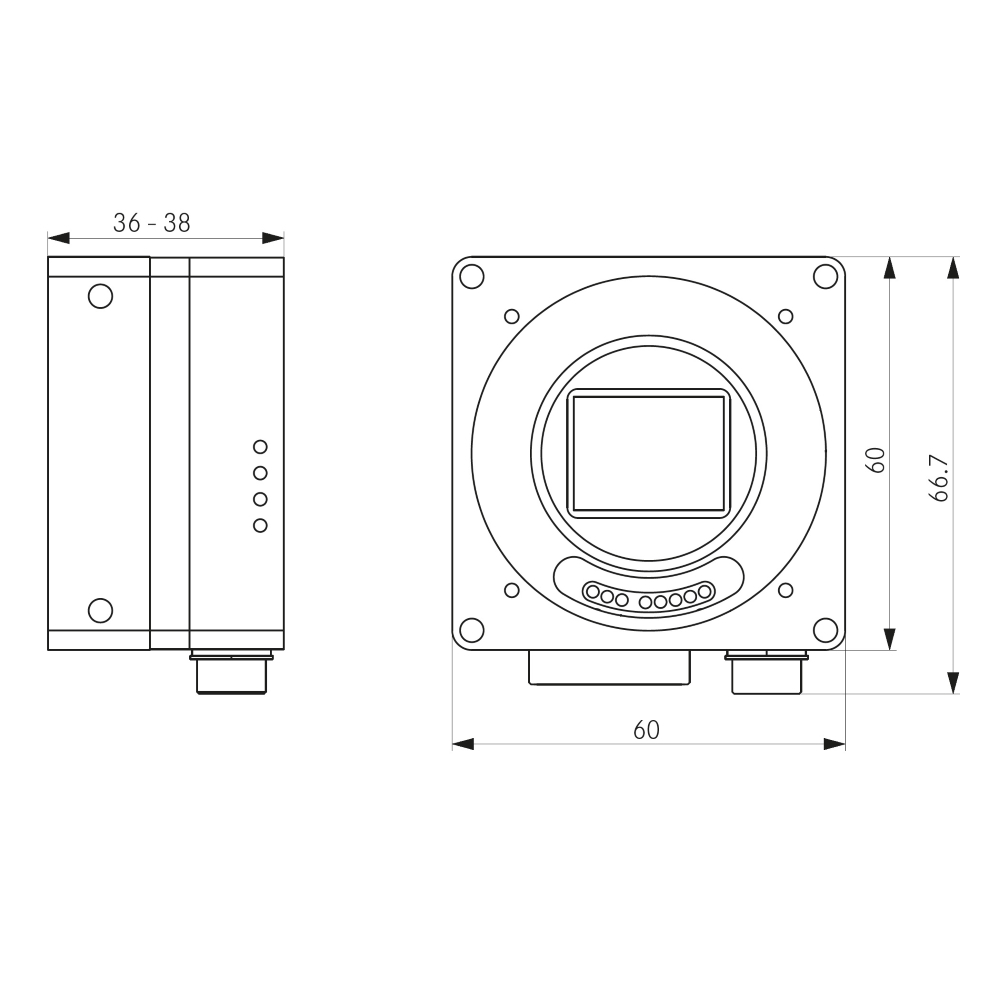

Physical dimensions (WHD) 60 x 60 x 36 mm
Mass - weight 173 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiJ family

Technology


Sensor technology Scientific CMOS or sCMOS
Acquisition modes Global shutter and Rolling shutter
Sensor versions Front side illuminated (FSI) and Backside illuminated (BSI) with various Grades
Digital Output 12, 14, 16 bit RAW pixel data digitization
USB3 Interface USB 3.1 Gen1 standard Type C
PCIe interface PCI Express Gen2 x4 lanes standard iPass cable connector
General purpose I/O 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Power requirements Bus powered via USB3 interface with PD - Power delivery for Cooling
Lens mount C-mount, M42-mount, EF-mount and custom M58 thread
Cooling Thermoelectric Peltier cooling and fan or water module

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing Host based de-Bayering; sharpening; Gamma; color matrix;
true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, PCIe x4 Gen 2 slot, USB3 port with PD

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of xiJ cooled sCMOS cameras in various Applications

Electron-Microscopy-Fluorescence-light
Fluorescence
Förster resonance energy transfer (FRET), Fluorescence recovery after photobleaching (FRAP), Fluorescence in situ hybridization (FISH), Total internal reflection Fluorescence (TIRF), High Speed Multicolor and Light Sheet
Microscopy
Microscopy
Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), Widefield Fluorescence Microscopy
Biomedical-gene
Biomedical
Cell Biology, Biochip reading, Protein/Lipid Trafficking, Membrane Dynamics, gene expression analysis, Biophysics, Biometrics, Genomics, Ion signaling and Transport Physiology, Corona detection
Life-science-tomography-endoscopy
Life science
Endoscopy, Phosphorescence, Digital pathology, Ophthalmology, Gated stimulated emission depletion (GSTED), Electrophysiology, Optical Coherence tomography (OCT), Calcium, Ratiometric, Voltage Sensitive Dyes
Astonomy-Astrophysics-space-application
Space exploration
Bose-Einstein Condensation, BEC dynamics, Nanoparticle, Astronomy, Solar polarimetry, Pulsar imaging, Space debris and NEO tracking, Fluorescence correlation spectroscopy (FCS), Astrophysics
Material-science-minerology-black
Material science
Photoluminescence Spectroscopy, Mineralogy, Photovoltaic inspection, Coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, Quantum Dots and Optics, Intrinsic, Spinning disk confocal imaging
