xiRay
MX610XR-SY-TP2:1-GO

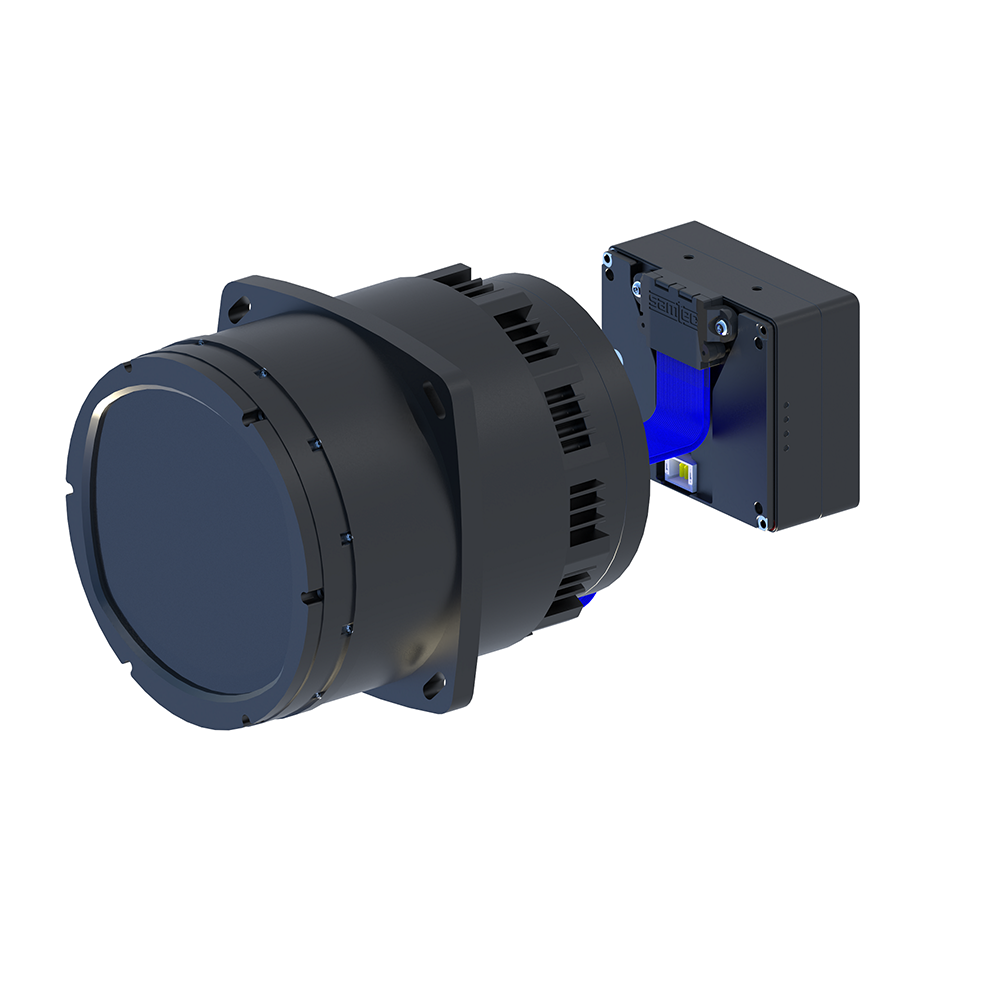

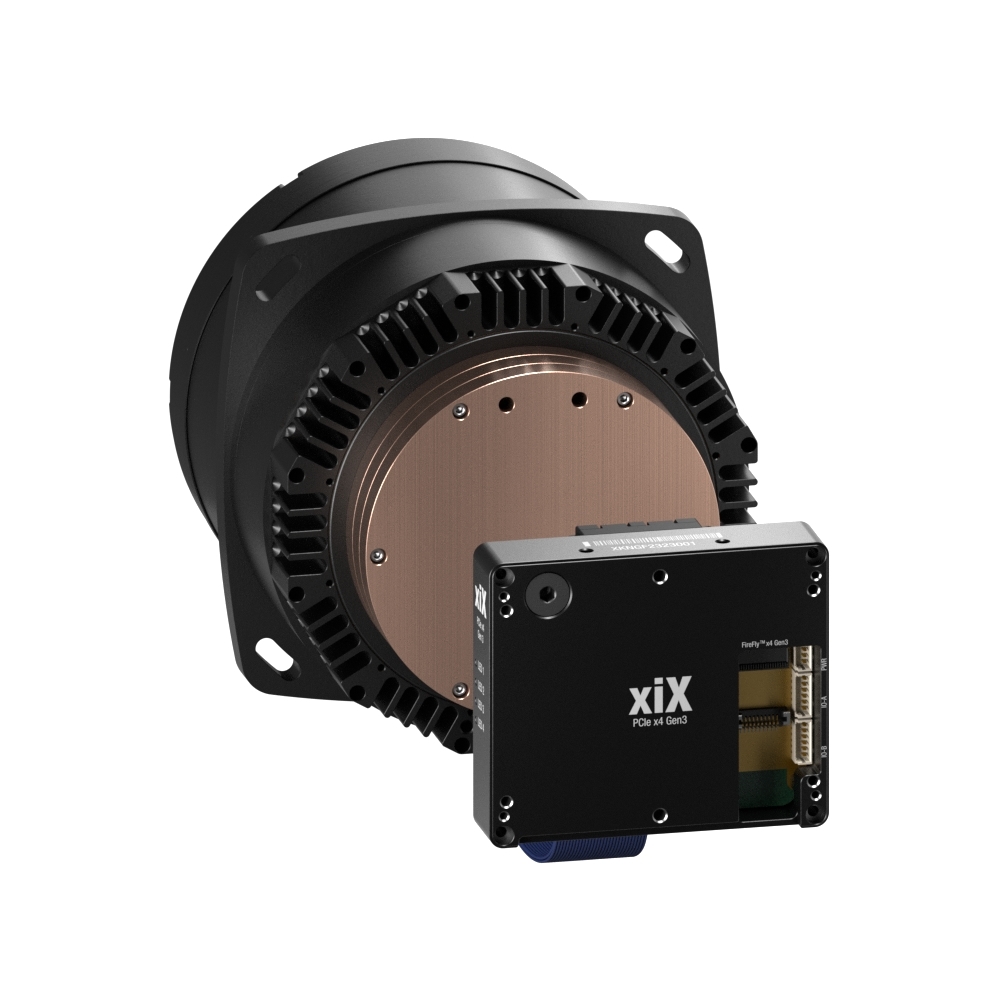

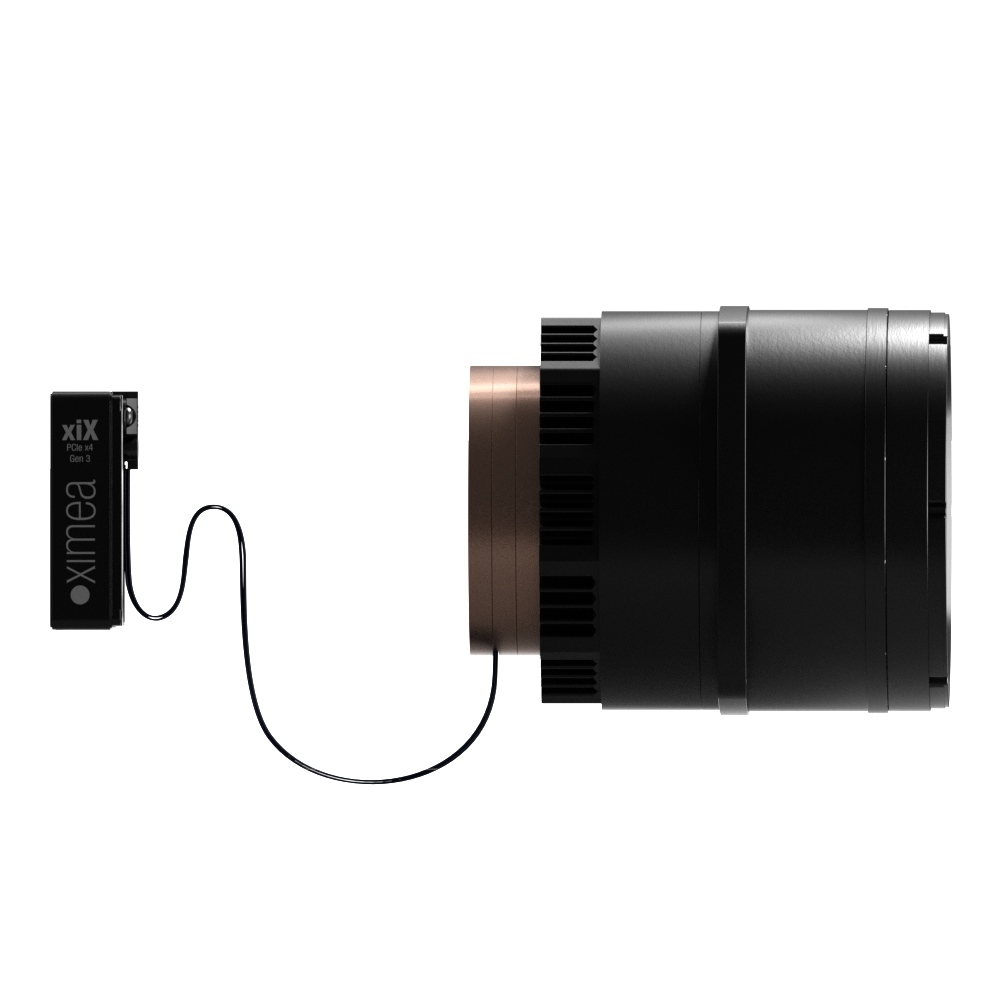

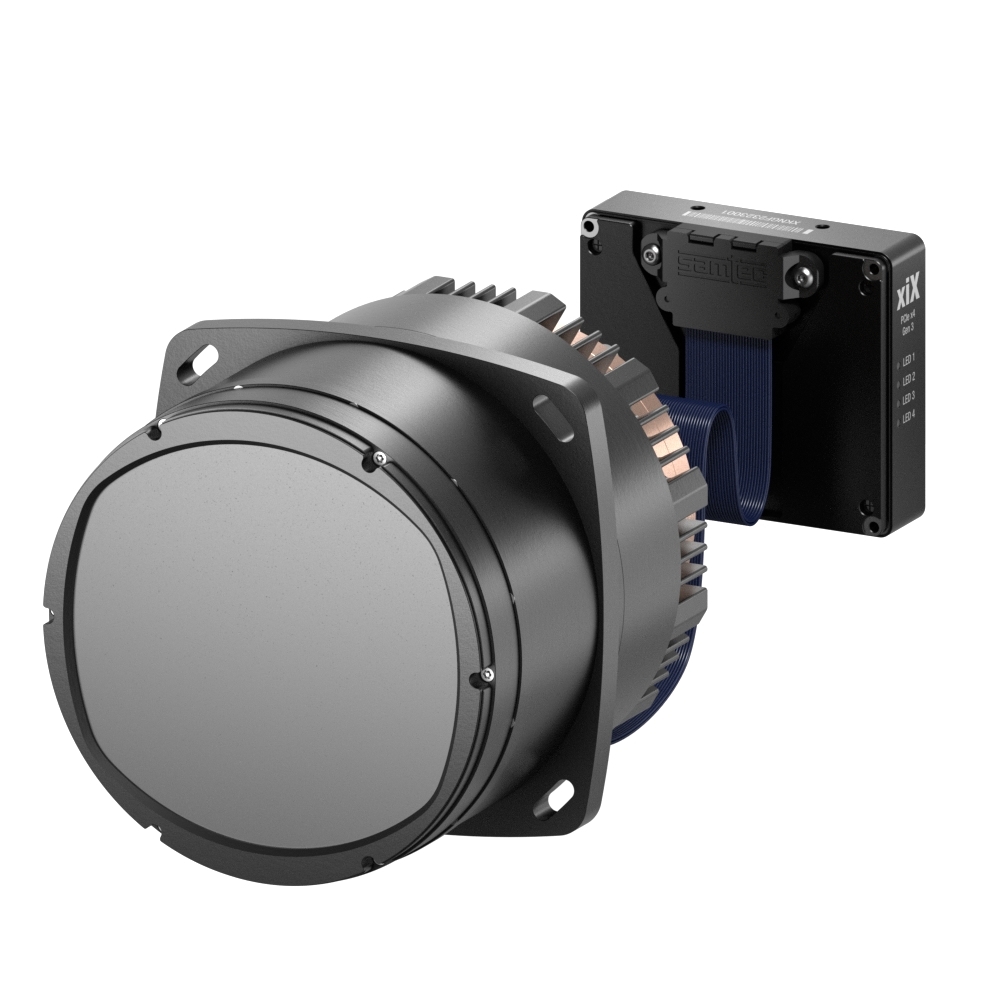

X-ray camera with 61 Mpix SONY IMX455 CMOS 35 x 23 mm sensor and PCIe Gen 3 interface
Product statusEngineering-Sample
Sensor vendorSONY
Sensor modelIMX455
Sensor technologyCMOS
Shutter typeRolling shutter, Global reset release
Frame rate17 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout
ADAPTABLE
Various modes for best results in FWC, dynamic range, noise and speed.
RELIABLE
5 keV - 150 keV radiation energy range with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.
CUSTOMIZABLE
Modify the Scintillator material, Phosphor thickness or other parameters according to your needs for x-ray energy, resolution, field of view, pixel size and more
Specification
|
Sensor properties
|
||
| Resolution | 61 MPix | |
| Sensor resolution | 9568 x 6380 | |
| Sensor vendor | SONY | |
| Sensor model | IMX455 | |
| Sensor type | X-RAY | |
| Sensor technology | CMOS | |
| Sensor size | 35mm Full Frame | |
| Sensor active area | 35 x 23 mm | |
| Sensor diagonal | 43.2 mm | |
| Pixel size | 3.76 µm | |
| Shutter type | Rolling shutter, Global reset release | |
|
Camera properties
|
||
| Frame rate | 17 FPS | |
| Bits | 12, 14, 16 bits | |
| On-chip downsampling | 3x3 | |
| Interface | PCIe Gen 3 | |
| Data interface speed | 32 Gbit/s | |
| Data connector type | PCIe-FireFly-X4G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 90 µs | |
| Exposure maximum | 12 s | |
| Power consumption | 13.5 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Special features | Backside illumination | |
|
EMVA 1288 results
|
||
| Dynamic range | 78 dB | |
| Saturation Capacity | 51000 e- | |
| Readout noise | 1 e- | |
| Gain analog max | 36 dB | |
|
Mechanical properties
|
||
| Lens mount | C-mount, EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 102.4 x 102.4 x 120 mm | |
| Mass - weight | 3406 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
Life science
Micro and Nano CT (Computed tomography), Radiography, Medical and Biology research, Light sheet microscopy (LSFM), Small animal and Cell structure
Material analysis
Scanning and Transmission electron microscopy, Small molecule and protein Crystallography, Spectroscopy, Archeology, Minerology, Neutron imaging
Industrial
Solar panel and cell inspection, industrial PCB analysis (BGA - Ball grid array), Energy research, Phase contrast imaging, Structural engineering, Fluid dynamics
Diffraction and scattering
Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and Fluorescence (XRD, XRF), Powder diffraction, Coherent diffraction

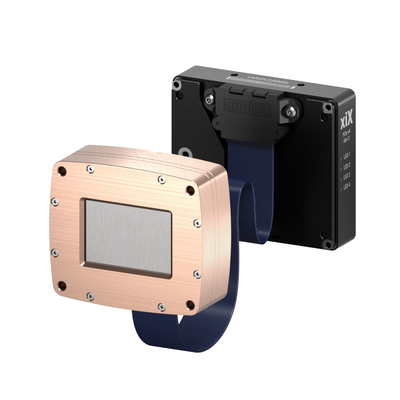

Variants
