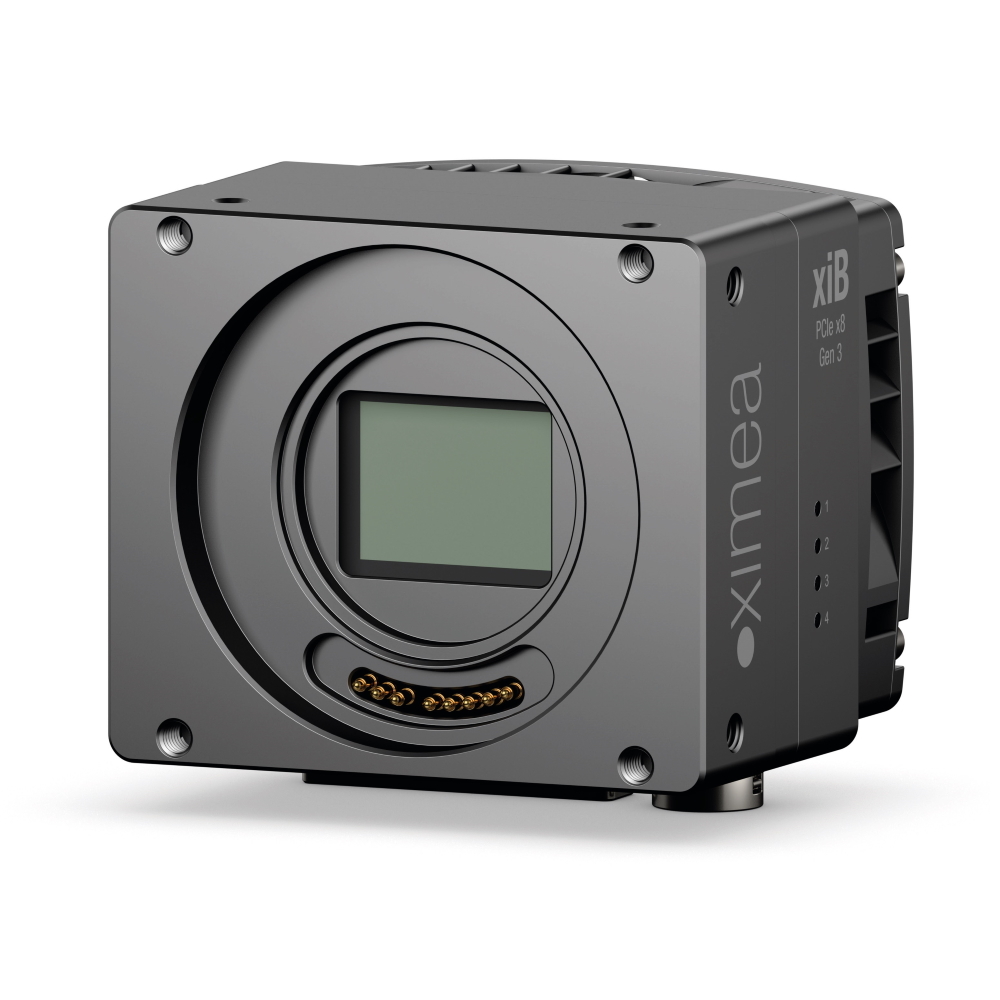

xiB-64
CB262RG-GP-X8G3

High speed camera with 26.2 Mpix NIR Gpixel GMAX0505 Red Fox sensor and PCIe Gen 3 interface

Product statusActive
Sensor vendorGpixel
Sensor modelGMAX0505 Red Fox
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate150 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
High resolution (up to 64 Mpix) global shutter sensors without motion artifacts.
Highlight_Fast
FAST
High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.
Highlight_Functional
FUNCTIONAL
Active Canon EF-mount option for aperture and focus control through the camera.
Highlight_Low-latency
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.
Specification
Sensor properties
Resolution 26.2 MPix
Sensor resolution 5120 x 5120
Sensor vendor Gpixel
Sensor model GMAX0505 Red Fox
Sensor type NIR
Sensor technology CMOS
Sensor size 1.2"
Sensor active area 12 x 12 mm
Sensor diagonal 18.1 mm
Pixel size 2.5 µm
Shutter type Global shutter
Camera properties
Frame rate 150 FPS
Bits 10, 12 bits
On-chip decimation 1x4
Interface PCIe Gen 3
Data interface speed 63.04 Gbit/s
Data connector type PCIe-iPass-X8G3
GPIO count Inputs: 6, Outputs: 6
Exposure minimum 18 µs
Exposure maximum 1.1 s
Power consumption 13.6 Watt
Heat dissipation Optional Heatsink, Fan air cooling
Sensor cooling No
Special features NIR
Internal memory 2 GB
EMVA 1288 results
Dynamic range 63.4 dB
Saturation Capacity 6500 e-
Readout noise 2.58 e-
Signal to noise ratio 35.68 dB
Peak QE 65%
Gain analog max 63 dB
Spectral Range 400 - 1000 nm
Mechanical properties
Lens mount C-mount, EF-mount option
Enclosure type Standard housing

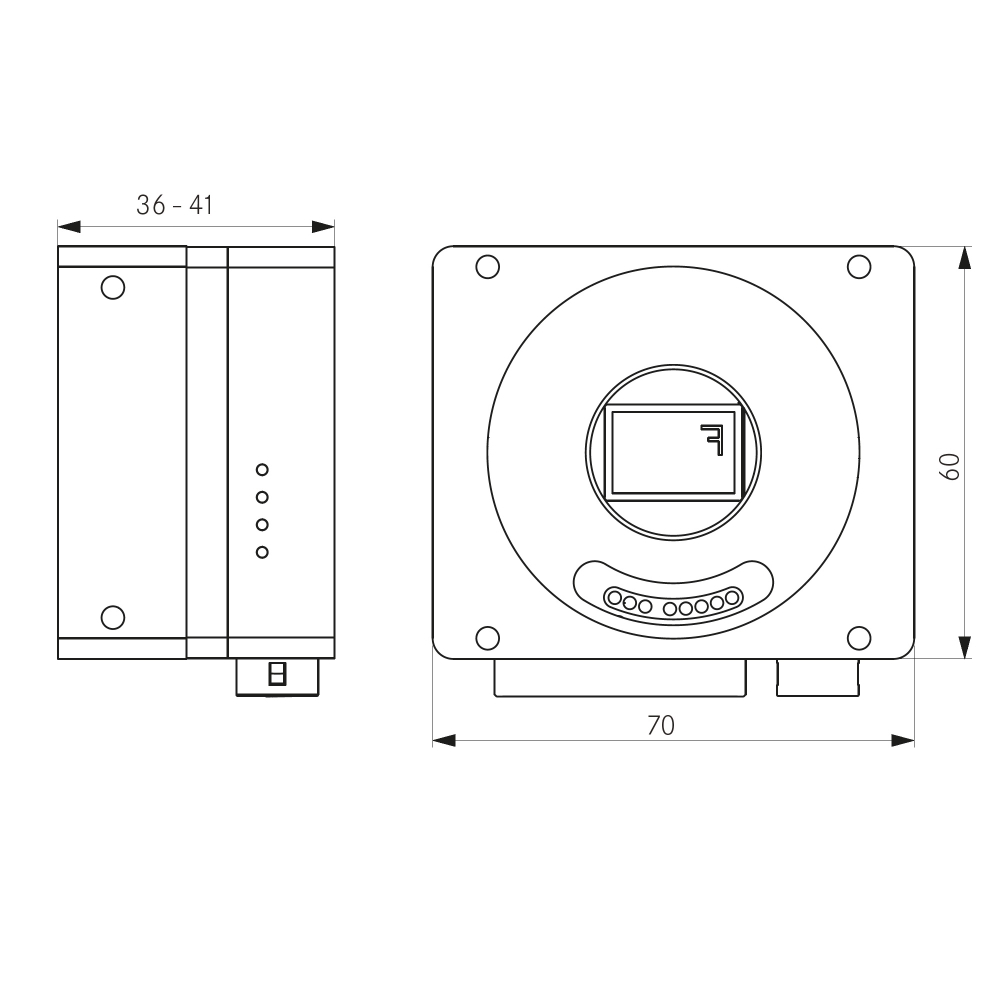

Physical dimensions (WHD) 70 x 60 x 36 mm
Mass - weight 250 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiB-64 family

Technology


Sensor technology CMOS, Global shutter
Bandwidth 64 Gbits - highest in the industry
Acquisition Modes Continuous, software and hardware trigger, limited fps, triggered exposure and burst, exposure controlled by trigger length
Digital Output 8, 10, 12 bit RAW pixel data digitization
Interface iPass external PCIe connector Gen3 x8 standard cable connector
General purpose I/O 2x opto-isolated input, 2x opto-isolated output, and 4 non-isolated I/O, 4X user configurable LEDs
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Lens mount C-mount or active EF mount with software control for Canon lenses - focus, aperture, iris and image stabilization

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported - model specific
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time
Latency Computer CPU is not involved in data transfer, latency from camera to memory is minimal

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Linux Ubuntu, ARM, MacOS 10.8 and newer, NVIDIA Jetson modules
Minimum host hardware Intel i5 3.0GHz, +2GB RAM physical memory, Motherboard with PCIe x8 Gen3

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, GenICam/GenTL, PCI Express External Cabling Specifications compliant
