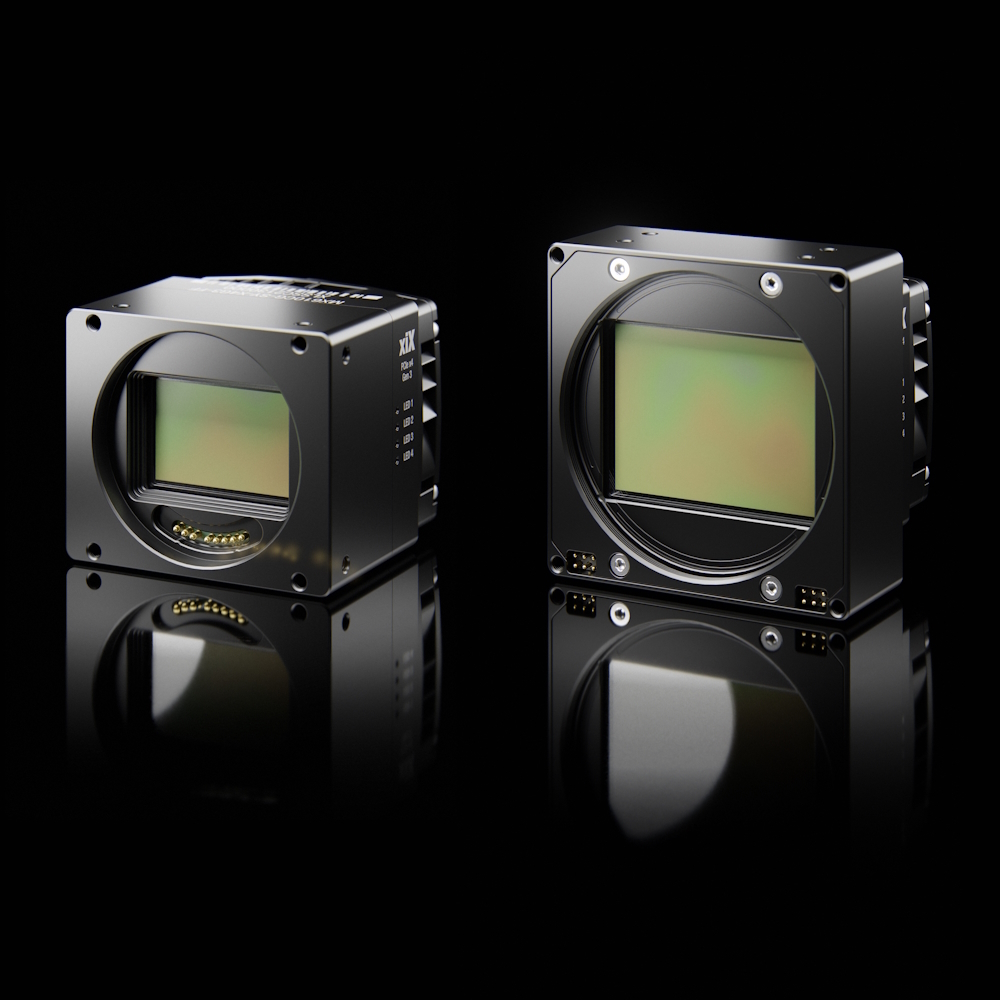

What is xiX-XL?

Extending the xiX camera series with a 32 Gbit/s backend allows the integration of the newest generation of Sony sensors.
This product line-up offers large format Sony BSI sensors (up to 151 Mpix, 66.7 mm diagonal), reaching the full potential of the sensor specifications with the smallest sensor-to-package ratio.

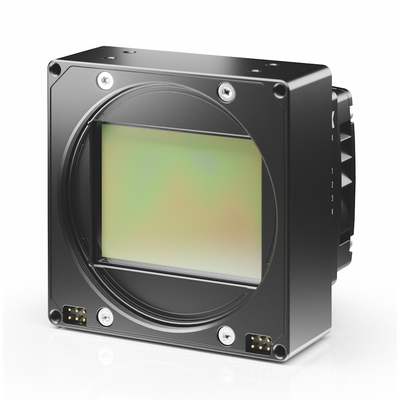

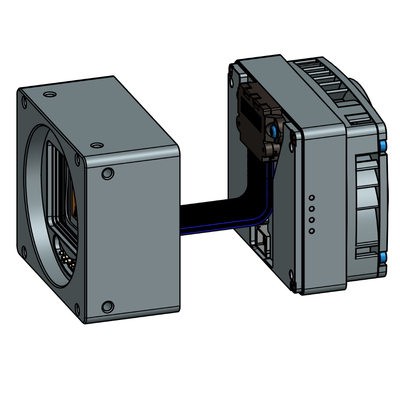

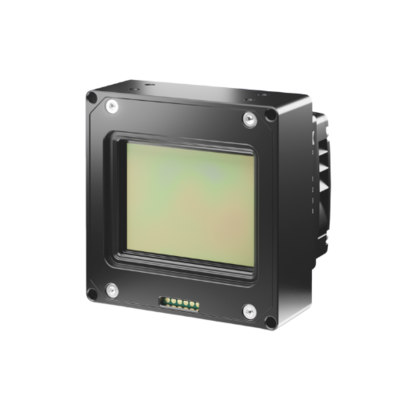

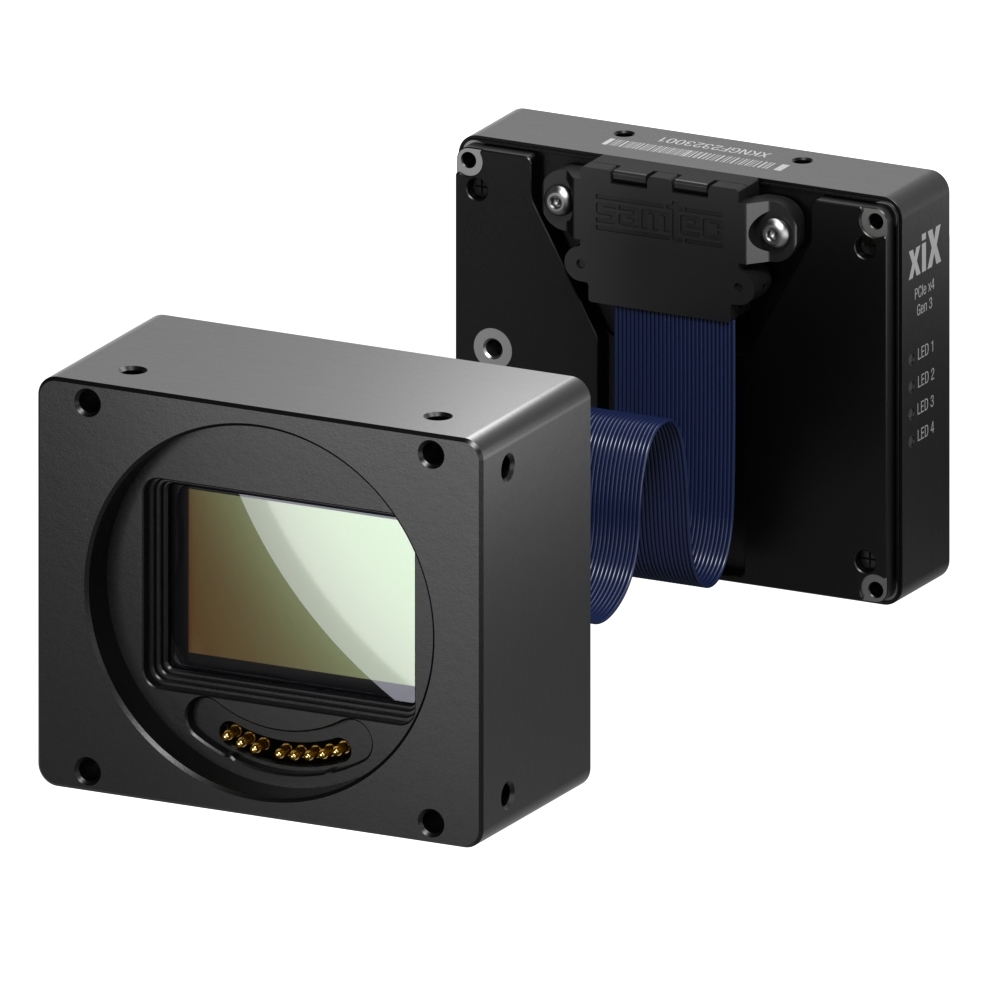

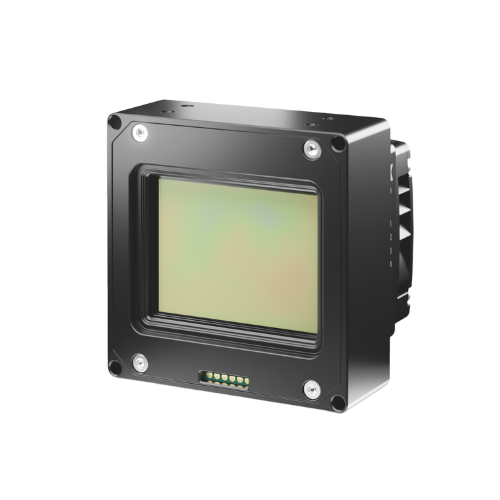

An innovative housing concept with a detachable sensor head optimizes heat dissipation to improve the image quality and simplifies the integration into tight spaces.

  • Highest resolution in XIMEA portfolio of cameras - up to 151 Mpix

  • Large format backside illuminated sensors from Sony: IMX455, IMX461, IMX411

  • Readout of high-quality pictures with 12, 14, 16 bits of digitization

  • Remarkable bandwidth of 32 Gbit/s using PCI Express interface

  • Compact form factor is barely bigger than the sensors themselves

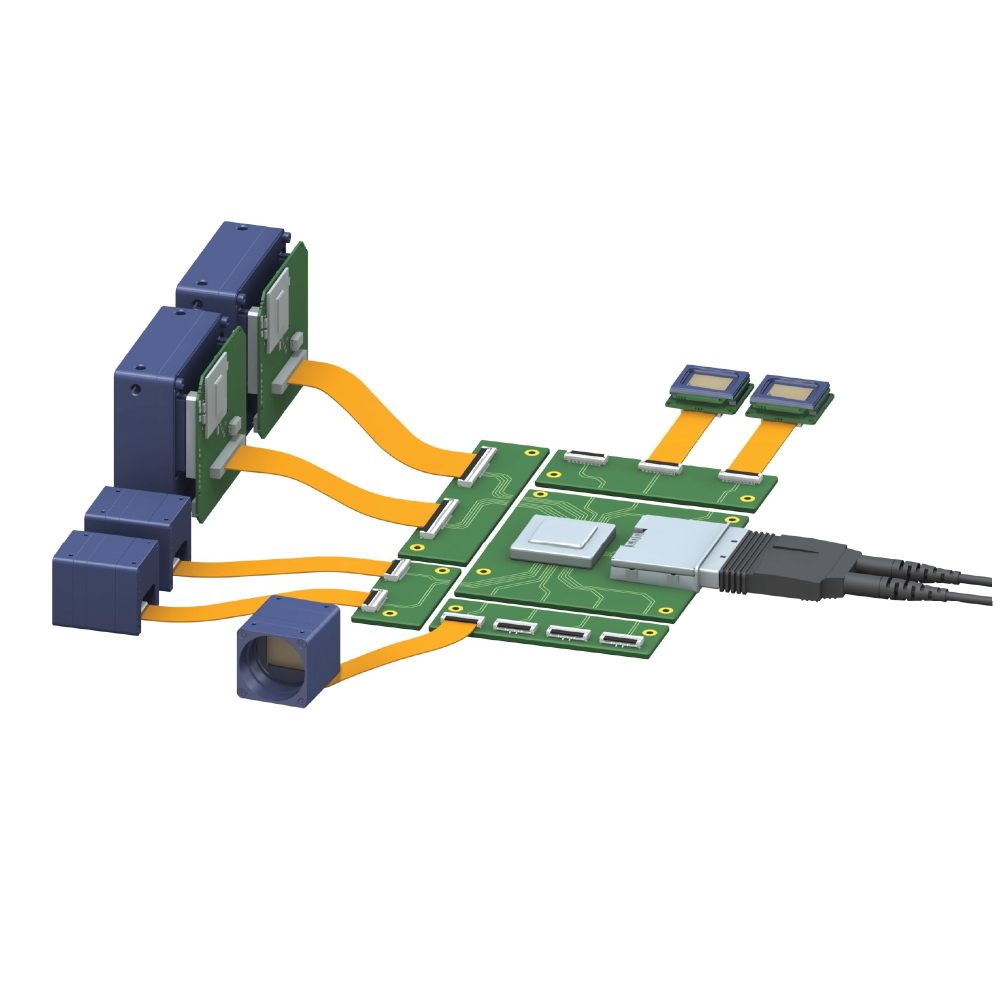

  • Possible to detach the sensor head from the body with flex cabling

  • Long reach - Can work with optical cables up to 100 m

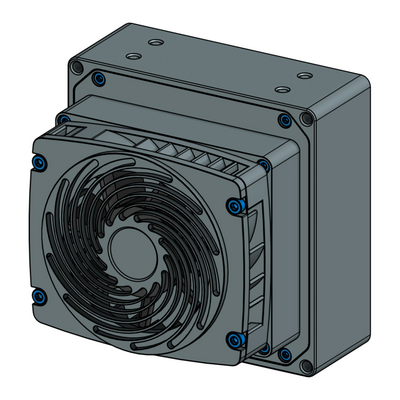

  • Minimal heat dissipation with various optional cooling modules

  • Ideal for photogrammetry with a range of accessories

  • Lowest latency - PCI Express offers a almost non-existent delay

  • EF-mount allows to control aperture, focus and image stabilization

  • Synchronization - Programmable optoisolated input and output

  • Support for Windows, macOS, Linux, ARM and NVIDIA Jetson modules

Models and sensors

Model Resolution Sensor type Sensor model Sensor resolution Sensor size Pixel size Bits Frame rate
MX610CR-SY-X4G3-FF 61 MPix Color  IMX455  9568 x 6380  35mm Full Frame  3.76 µm 12,14,16 bits 17 FPS
MX610MR-SY-X4G3-FF 61 MPix Monochrome  IMX455  9568 x 6380  35mm Full Frame  3.76 µm 12,14,16 bits 17 FPS
MX1018CR-SY-X4G3-FF 101.8 MPix Color  IMX461  11648 x 8742  Medium format  3.76 µm 12,14,16 bits 8.7 FPS
MX1018MR-SY-X4G3-FF 101.8 MPix Monochrome  IMX461  11648 x 8742  Medium format  3.76 µm 12,14,16 bits 8.7 FPS
MX1276CG-SY-X4G3-FF 127.6 MPix Color  IMX661  13400 x 9528  3.6"  3.45 µm 10,12,14 bits 21 FPS
MX1276MG-SY-X4G3-FF 127.6 MPix Monochrome  IMX661  13400 x 9528  3.6"  3.45 µm 10,12,14 bits 21 FPS
MX1510CR-SY-X4G3-FF 150.8 MPix Color  IMX411  14176 x 10640  Medium format  3.76 µm 12,14,16 bits 6.2 FPS
MX1510MR-SY-X4G3-FF 150.8 MPix Monochrome  IMX411  14176 x 10640  Medium format  3.76 µm 12,14,16 bits 6.2 FPS
MX2457CR-SY-X4G3-FF 245.7 MPix Color  IMX811  19200 x 12800  4.1"  2.81 µm 10,12,14,16 bits 10.0 FPS
MX2457MR-SY-X4G3-FF 245.7 MPix Monochrome  IMX811  19200 x 12800  4.1"  2.81 µm 10,12,14,16 bits 10.0 FPS
SWIPE FOR MORE
(1) Maximum frame rates measured at 8 bits per pixel RAW data in free run mode.
(2) For high-volume projects, the cameras can be integrated with industrial Sony sensor equivalents.
(3) Taped glass sensor models are available on request.

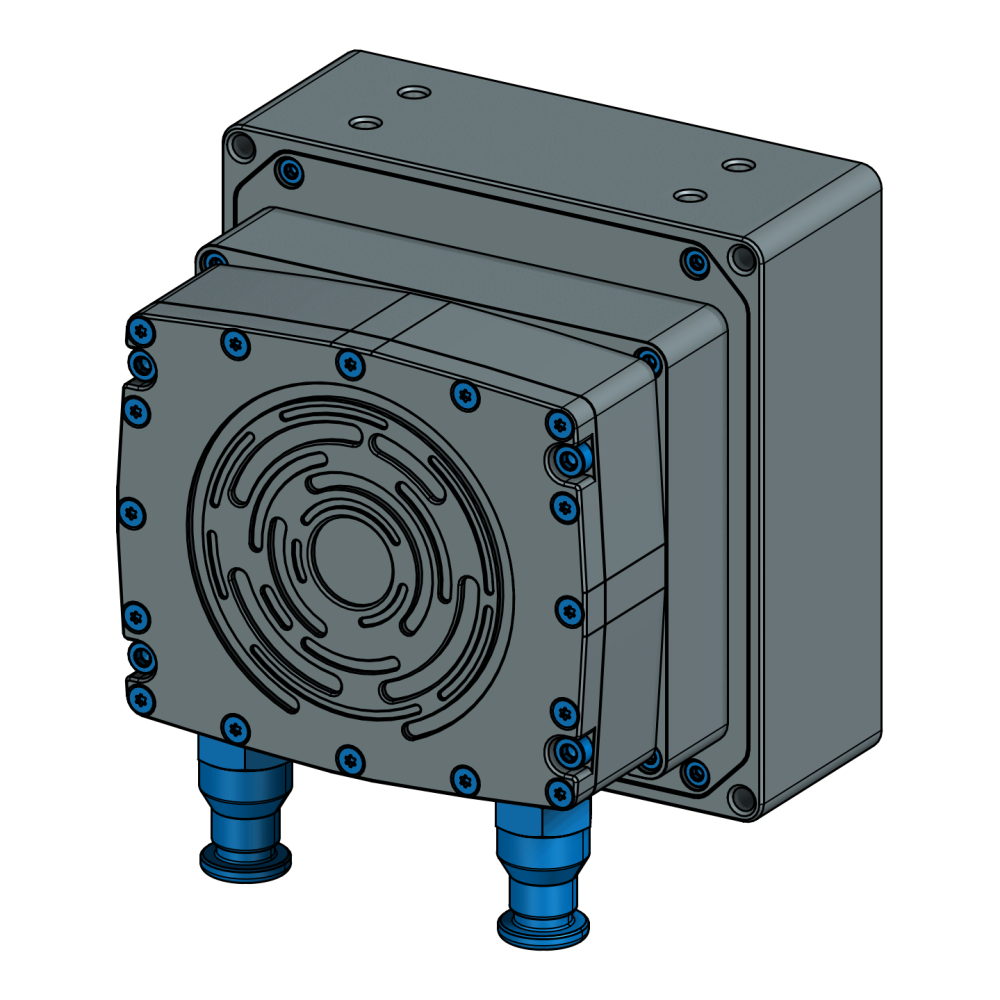

(4) All models can be offered with air or liquid cooling as well as copper or fiber connection options.

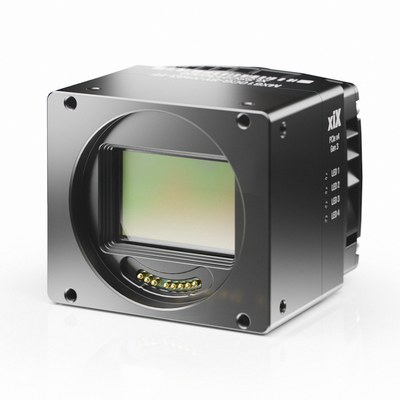

Keyfacts of xiX-XL cameras

xiX-XL-high-resolution-large-medium-format-sensors-BSI-cameras-Sony-backside-illuminated
PRECISE
Best-in-class sensors maximize imaging potential. Sony’s outstanding large format sensors provide high resolution of up to 151 Mpix and FWC above 50 000 e-.
EFFICIENT
Large Sony sensors like IMX455, IMX461, IMX411 or IMX661 are absolutely remarkable in their imaging qualities, offering quantum efficiency up to 90 % thanks to the backside illuminated design.
FAST
High-speed PCIe Gen3 x4 lane interface (32 Gbit/s) enhances full potential of these large-format sensors. Achieving 18 FPS at 61 Mpix or 6 FPS at 151 Mpix.
FUNCTIONAL
Based on the sensor functionality, the cameras utilize a full range of features making it possible to select 12, 14 or 16 bit readout as well as 2x2 or 3x3 binning and ROI.
ADAPTABLE
The removable sensor head can be detached from the main camera electronics minimizing the effects of heat while still minimizing read noise to the 1e- range.
COMPACT
The ratio of the camera’s size and weight to focal plane area is the best in its class. Camera dimensions are as close to sensor size as possible.
OMNIPRESENT
Built for maximum flexibility and with multi-camera setups in mind, ideal for photogrammetry and aerial mapping.
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.
COMPATIBLE
Windows, Linux, MacOS. Support for various machine vision libraries.

xiX-XL camera applications

Aerial-mapping-photogrammetry-capture-videogrammetry-UAV-drone-applications
Aerial mapping
photogrammetry, videogrammetry - City street or outdoor 3D mapping, wide area motion imaging, stadium and border surveillance.
Broadcasting-stadium-sports-instant-replay-capture-rapid-applications
Broadcasting
Cinematography, entertainment, instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.
Machine-vision-industrial-automation-robotic-welding-applications
Machine vision
Industrial and factory automation, production line monitoring, electronics bonding examination, assemblies defect detection, gauging.
Flat-pannel-display-FPD-inspection-pixel-camera-applications-machine-vision
Quality inspection
Flat panel display (FPD), printed circuit board (PCB) examination, solar panel, photovoltaics, semiconductor wafer, metrology, print and film scanning.
Portable-drone-vehicle-autonomous-self-driving-unmanned-aerial-UAV-applications
Vehicles
Autonomous, self-driving, unmanned aerial vehicles (UAV) and unmanned aircraft systems (UAS), advanced driver assistance systems (ADAS), drones.
Security-wide-area-motion-scanning-detection-boarder-surveillance-applications
Security
Wide area motion scanning and boarder or stadium surveillance, people counting, geographical information systems (GIS), aviation.
