xiRay

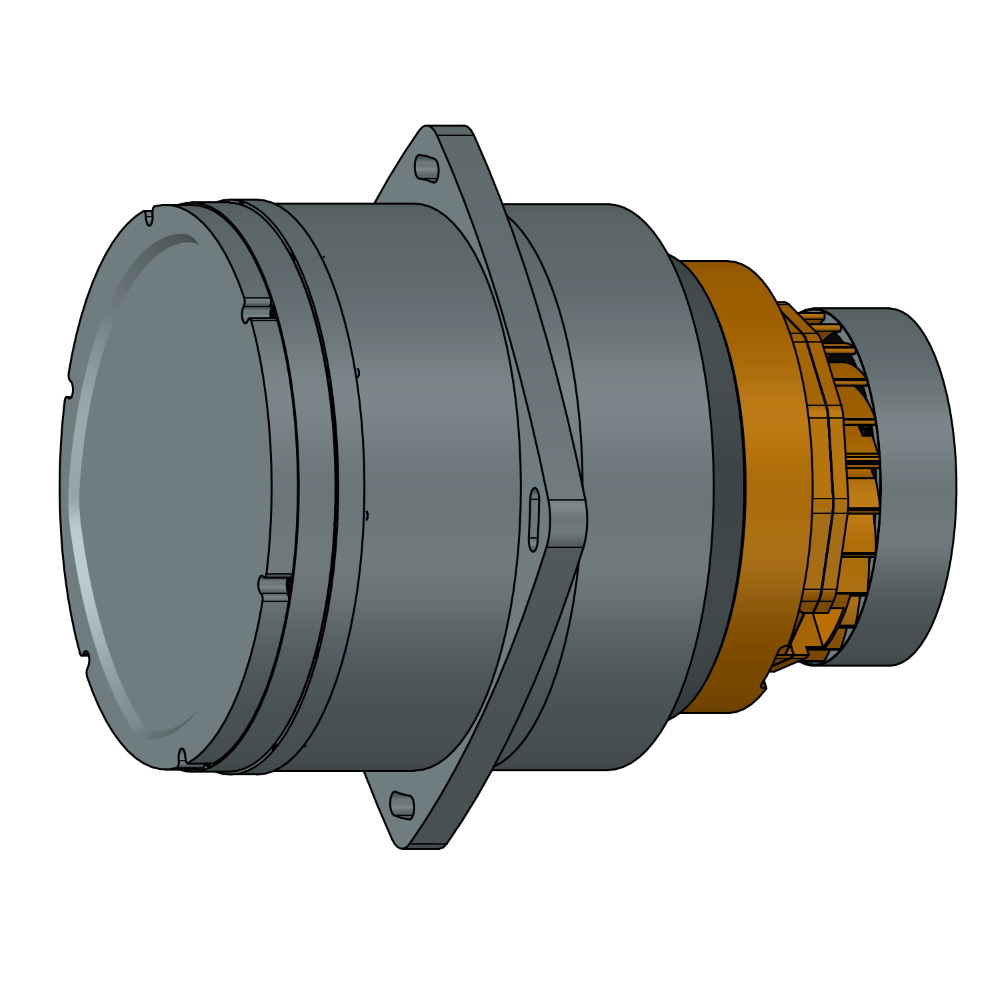

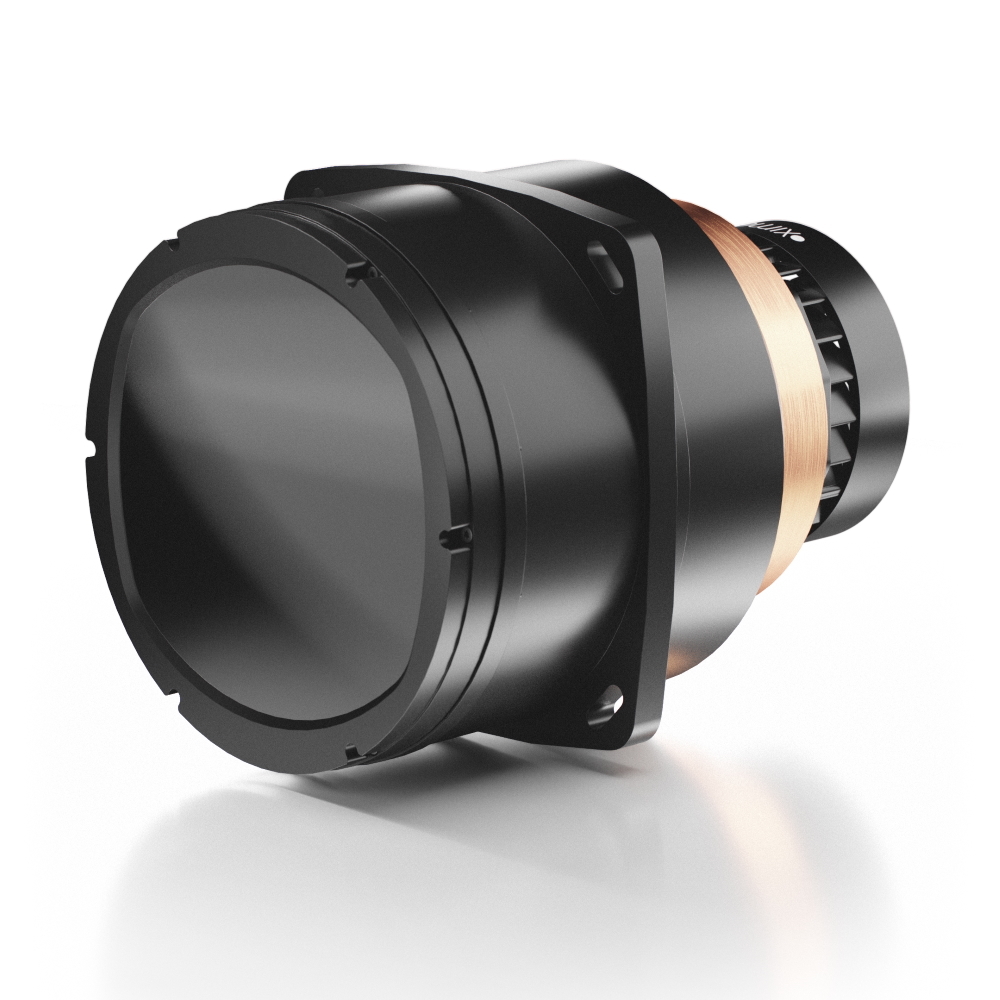

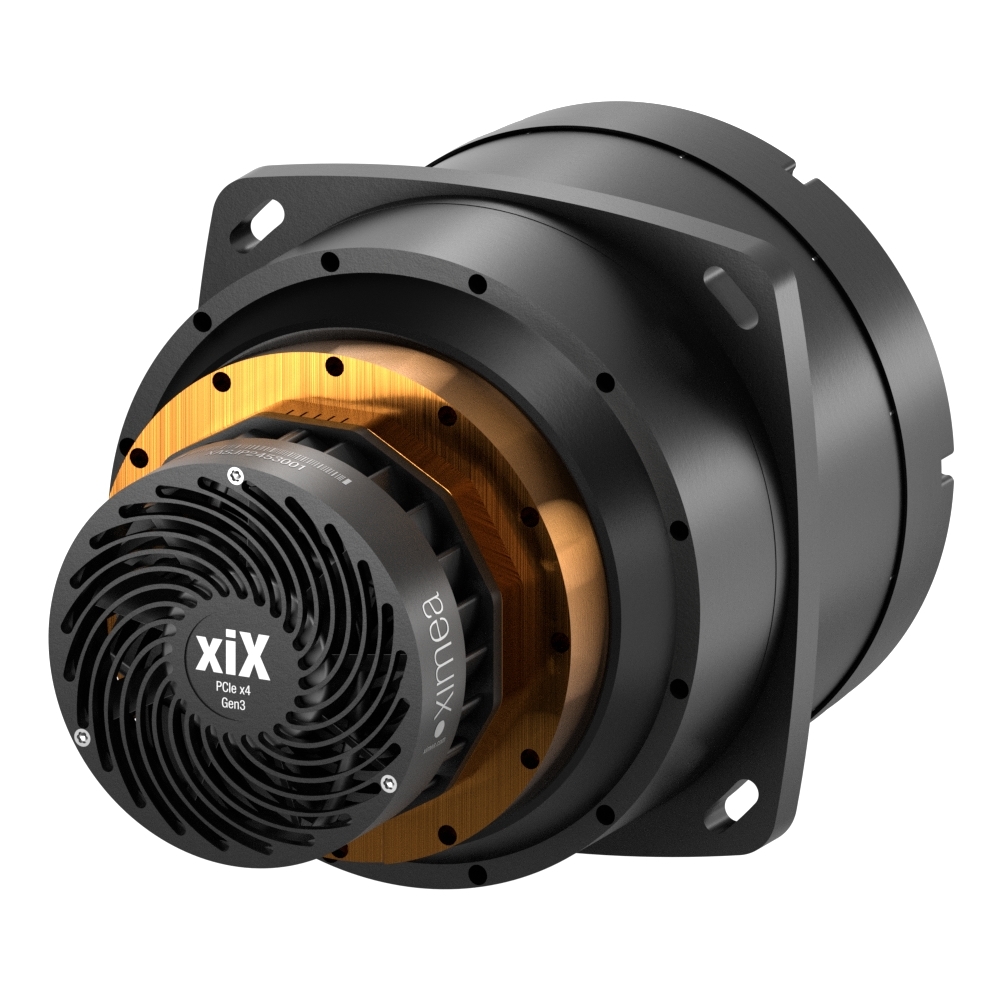

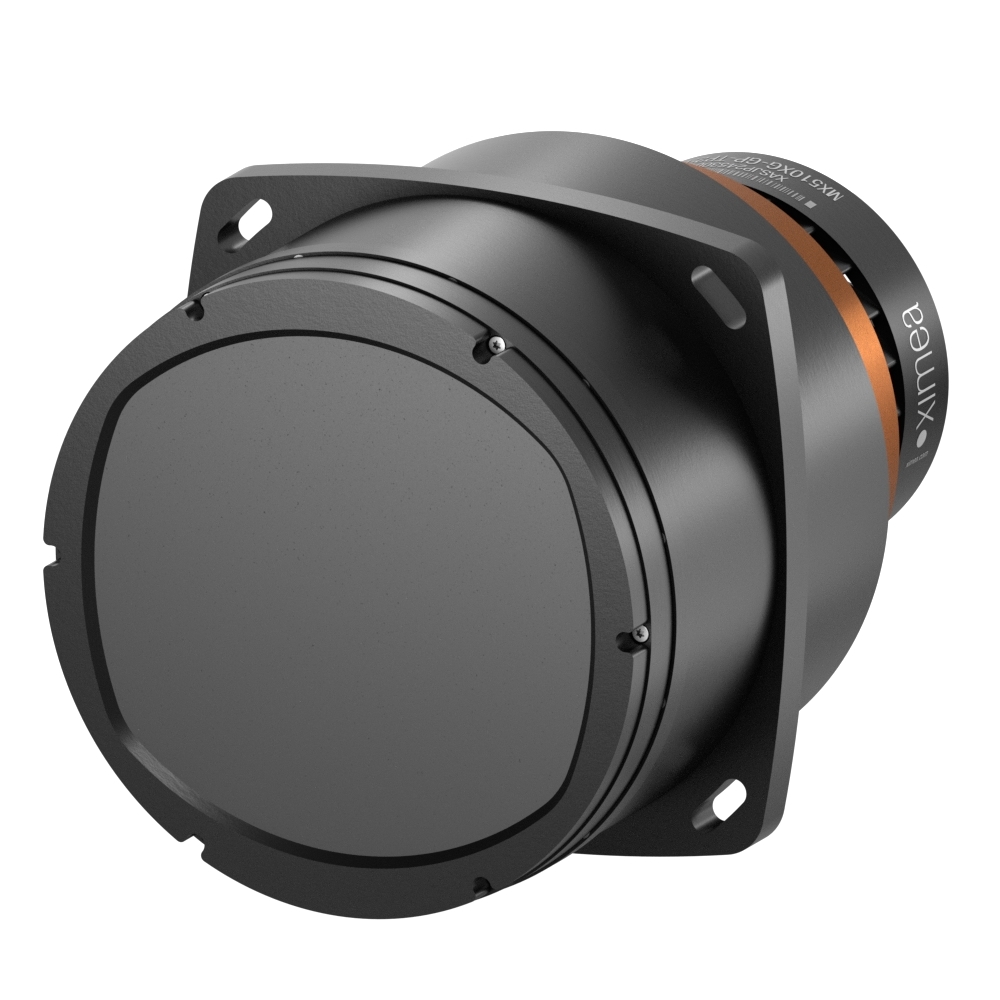

MX510XG-GP-TP2:1-GO

X-ray camera with 51.2 Mpix Gpixel GMAX4651 sCMOS 77 x 55 mm sensor and PCIe Gen 2 interface

Product statusEngineering sample
Sensor vendorGpixel
Sensor modelGMAX4651
Sensor technologysCMOS
Shutter typeGlobal shutter
Frame rate35 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout
Highlight_Adaptable
ADAPTABLE
Various modes for best results in FWC, dynamic range, noise and speed.
Highlight_Reliable
RELIABLE
5 keV - 150 keV radiation energy range with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.
Highlight_Customizable
CUSTOMIZABLE
Modify the Scintillator material, Phosphor thickness or other parameters according to your needs for x-ray energy, resolution, field of view, pixel size and more
Specification
Sensor properties
Resolution 51.2 MPix
Sensor resolution 8468 x 6058
Sensor vendor Gpixel
Sensor model GMAX4651
Sensor type X-RAY
Sensor technology sCMOS
Sensor size Medium format
Sensor active area 77 x 55 mm
Sensor diagonal 95.8 mm
Pixel size 9.2 µm
Shutter type Global shutter
Camera properties
Frame rate 35 FPS
Bits 12, 14, 2 x 12, 2 x 14 bits
On-chip downsampling 4x4
On-chip decimation 1x4
Interface PCIe Gen 2
Data interface speed 16 Gbit/s
Data connector type PCIe-FireFly-X4G2
GPIO count Inputs: 11, Outputs: 11
Exposure minimum 5 µs
Exposure maximum 2147.5 s
Heat dissipation Fan air cooling
Sensor cooling Yes
EMVA 1288 results
Dynamic range 65 dB
Saturation Capacity 22000 e-
Readout noise 2 e-
Signal to noise ratio 41 dB
Gain analog max 40 dB
Mechanical properties
Lens mount No mount
Enclosure type Standard housing

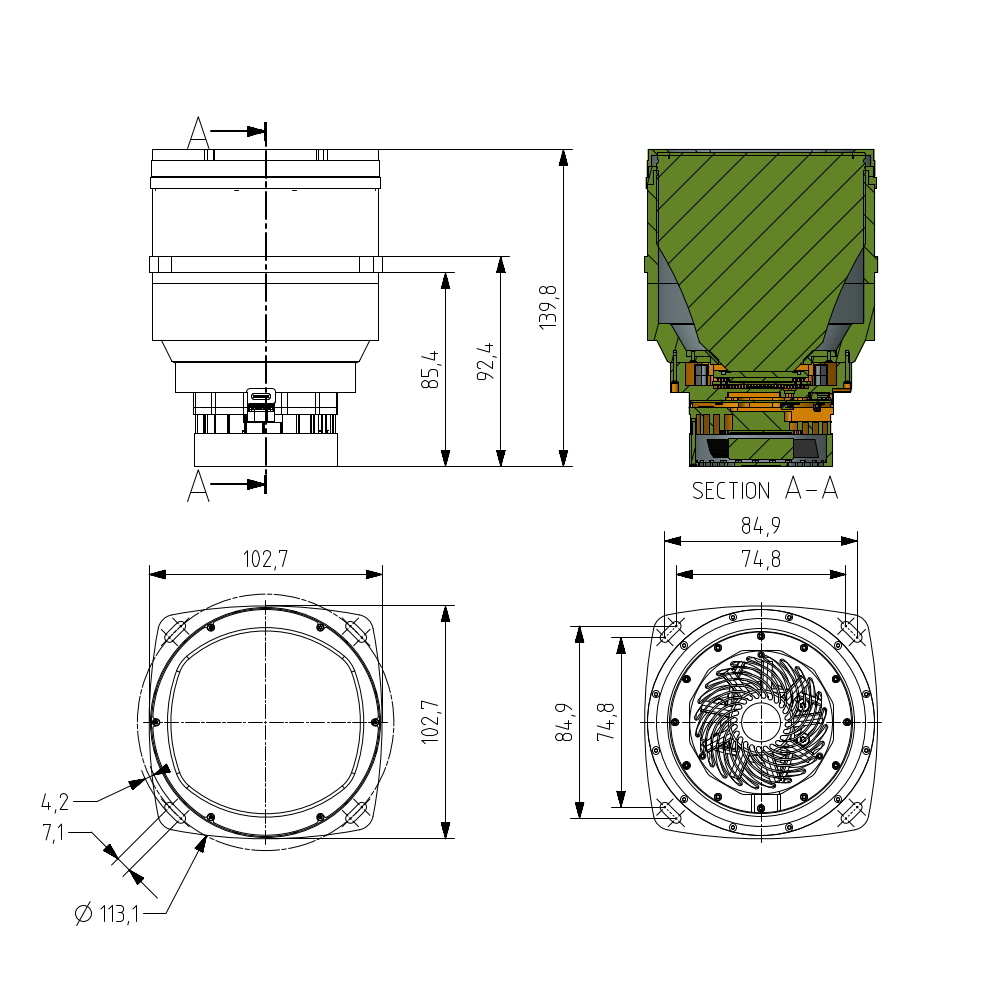

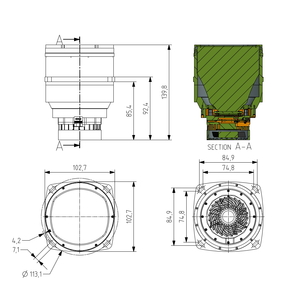

Physical dimensions (WHD) 103 x 103 x 140 mm
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiRay family

Technology


Sensor technology CCD, sCMOS and CMOS
Acquisition modes Global shutter and Rolling shutter
Sensor version No microlenses, Taped glass
Magnification options 1:1 and 2:1 or higher possible with Taper
Digital Output 12, 14, 16 bit RAW pixel data digitization

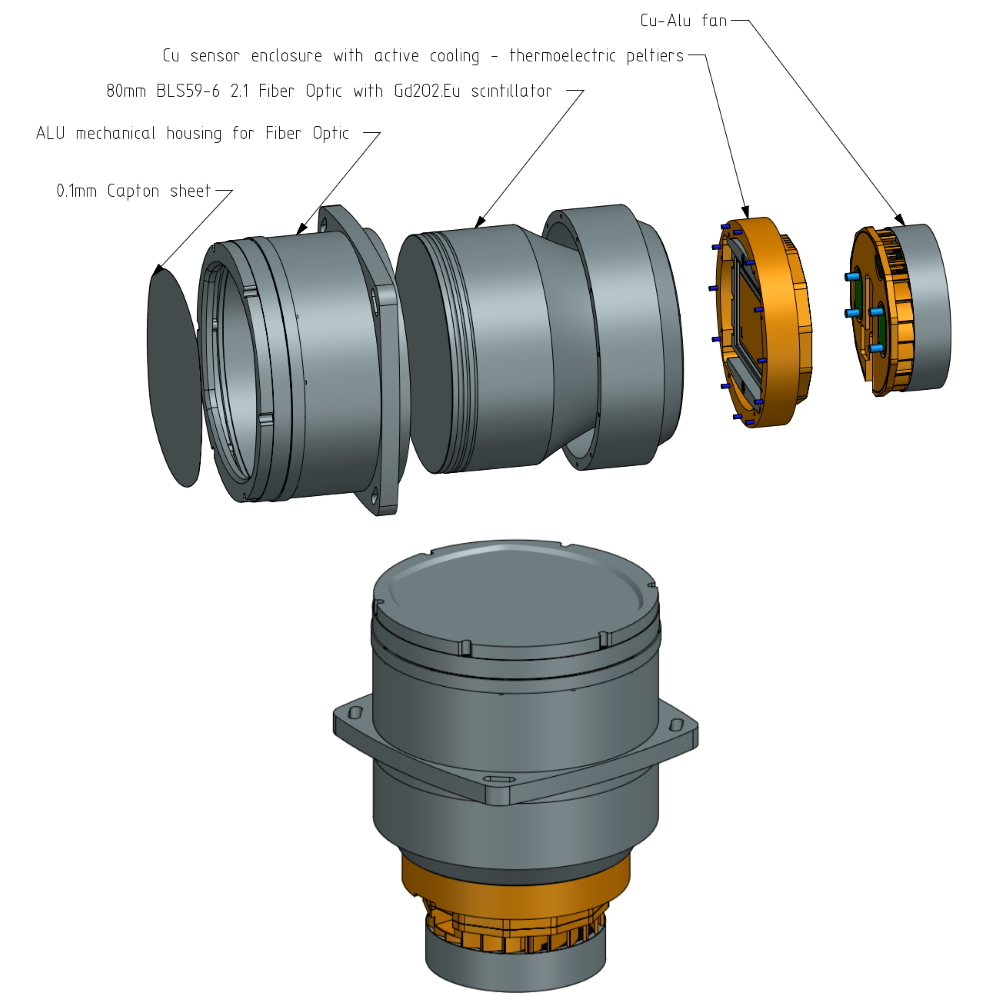

Scintillator material Phosphor composition P43, Gd2O2S:Tb, Thickness 22 μm or GadOx:Eu with 10 μm or CsI with 150 μm
Fiber optic plate FOP thickness 8 mm; 10 mm; 35 mm
Default Interface USB 3.1 Gen1 standard Type-C
Optional interface Thunderbolt 3 and PCI Express standard cable connector
General purpose I/O 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Power requirements Bus powered via USB3 interface with PD - Power delivery for Cooling
Cooling Thermoelectric Peltier cooling and fan or water module
Rad-hard Radiation hardened fiber optic to avoid browning effect
Support of Energy levels X-ray tube range 7 to 100 keV

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing Host based de-Bayering; sharpening; Gamma; color matrix;
true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, PCIe x4 Gen 3 slot, USB3 with PD

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of xiRay cameras for X-ray imaging Applications

Life-Science-micro-CT-Rontgen-hand
Life science
Micro and Nano CT (Computed tomography), Radiography, Medical and Biology research, Light sheet microscopy (LSFM), Small animal and Cell structure
Scan-coffee-bean-material-analysis
Material analysis
Scanning and Transmission electron microscopy, Small molecule and protein Crystallography, Spectroscopy, Archeology, Minerology, Neutron imaging
PCB-X-ray-industrial-analysis
Industrial
Solar panel and cell inspection, industrial PCB analysis (BGA - Ball grid array), Energy research, Phase contrast imaging, Structural engineering, Fluid dynamics
Skyscan-1272-saxs-waxs
Diffraction and scattering
Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and Fluorescence (XRD, XRF), Powder diffraction, Coherent diffraction
