Direct phosphor imaging X-ray cameras for high-res X-ray applications. Various sensors, scintillator types and fiber optic plates / tapers are available or can be customized to your needs.
xiRay-rechts-cut

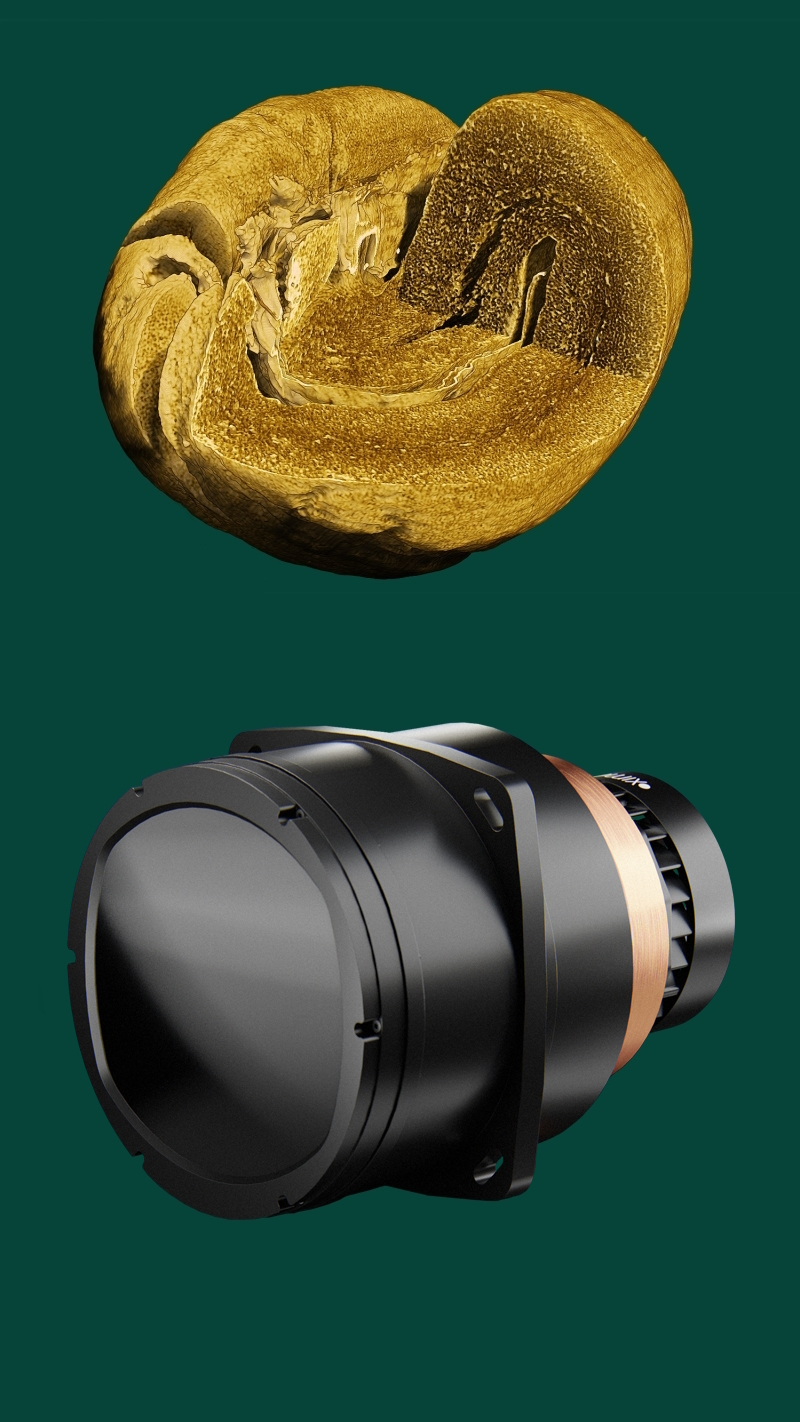

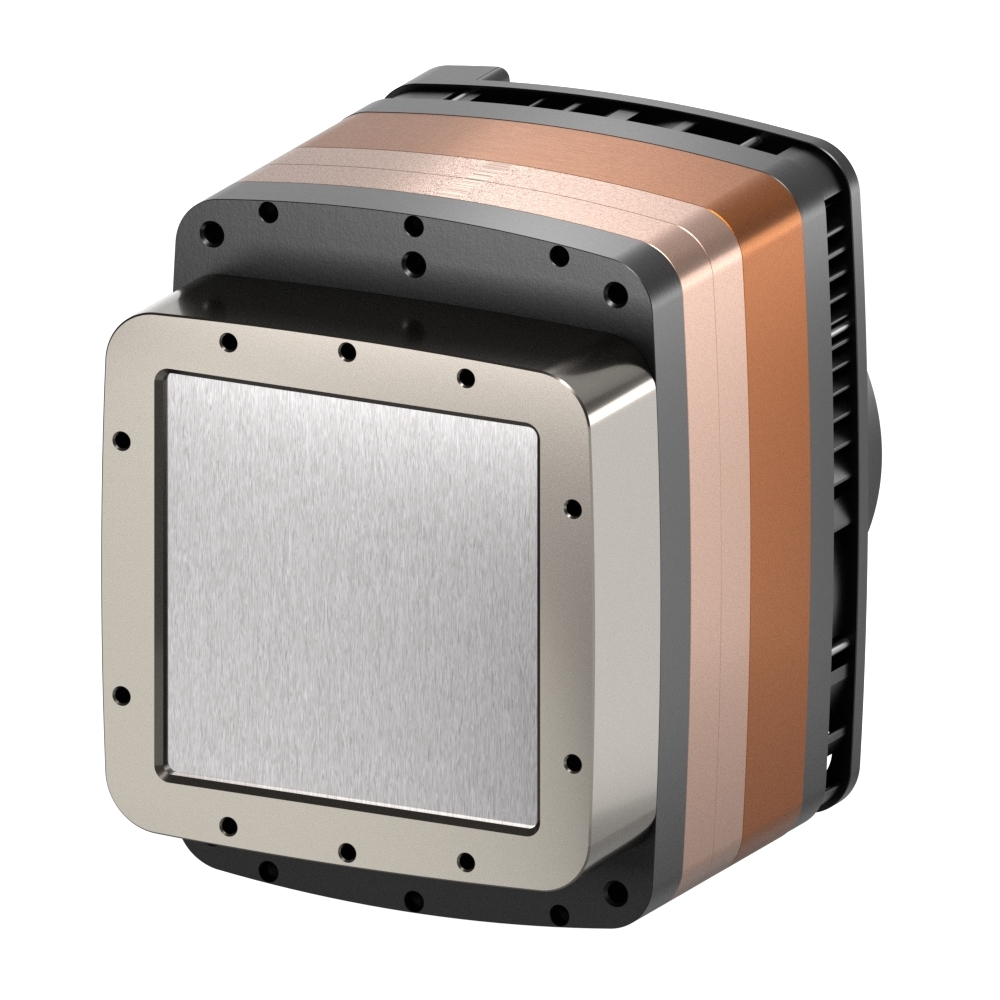

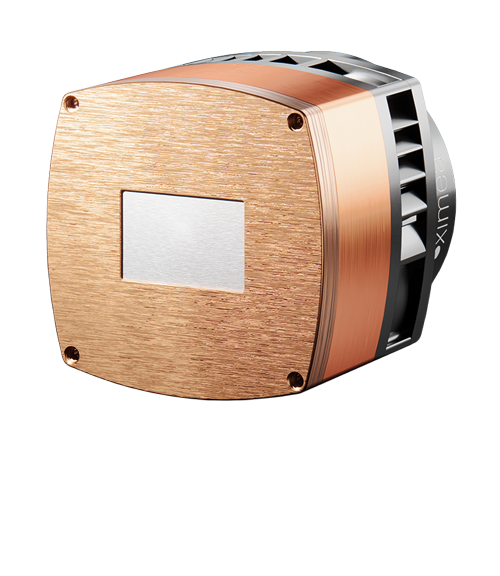

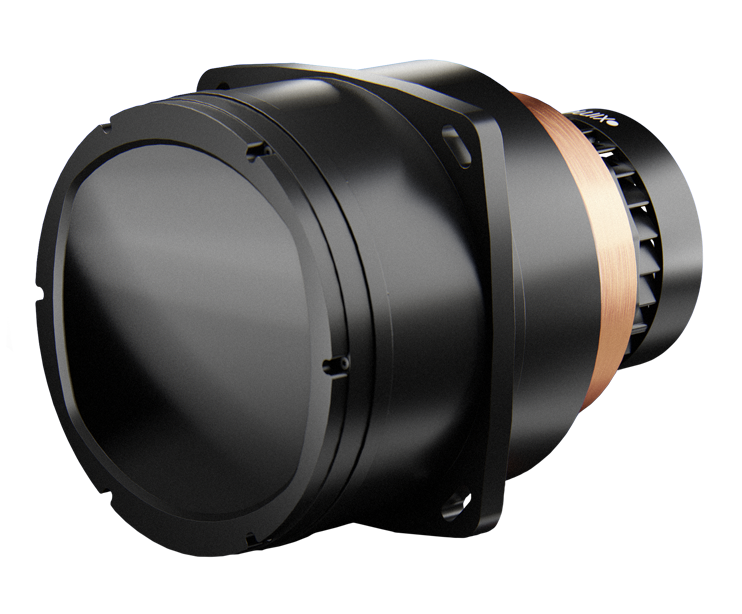

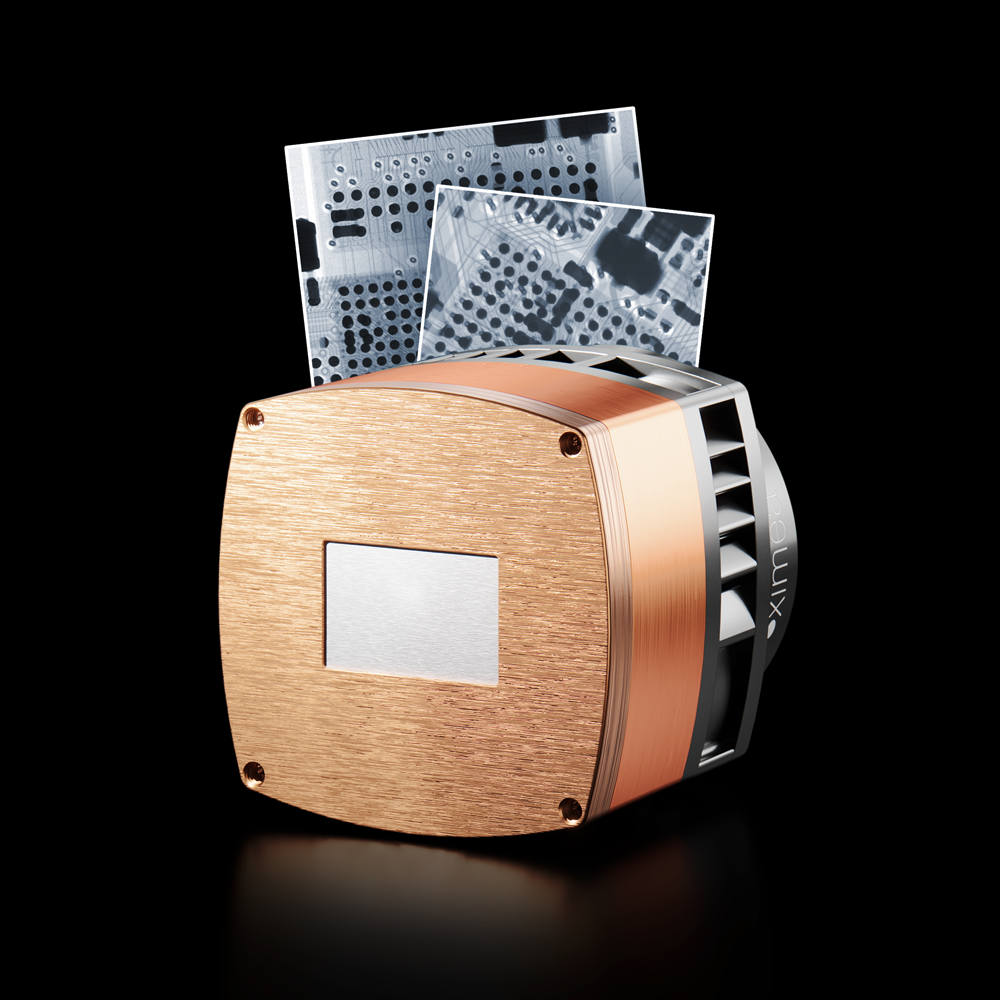

What is xiRAY?

We present our cutting-edge X-ray imaging system, meticulously designed to meet the demands of diverse scientific X-ray applications, such as high-resolution micro-CT. Equipped with the latest sCMOS and CMOS sensors (Gpixel, Sony) that range in resolution from 15 to 151 Mpix.

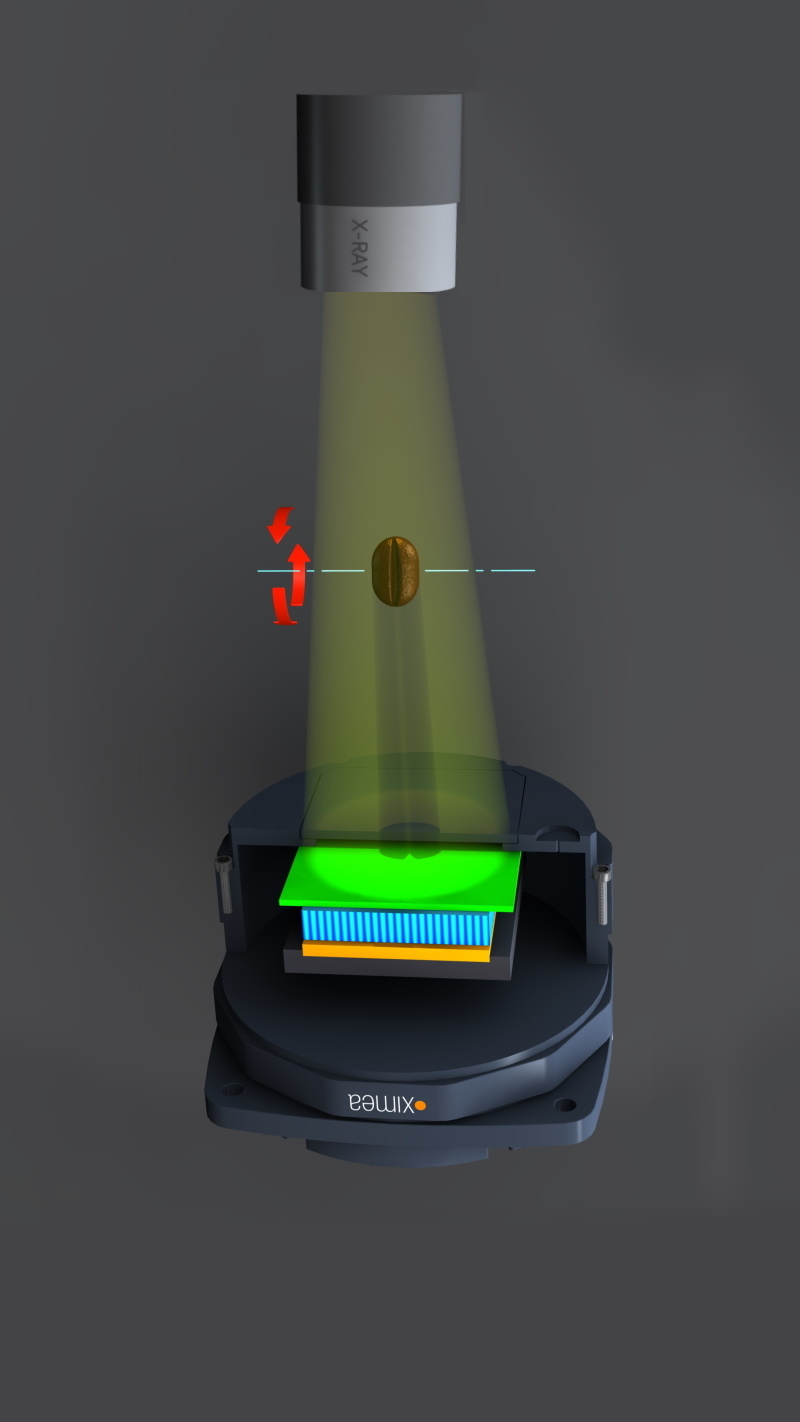

Radiation sensitivity is a key consideration in scientific imaging, therefore our system offers unparalleled flexibility in this regard by allowing users to adjust radiation sensitivity and energy ranges by employing a set of scintillator materials (GadOx:Eu, CSI) and various fiber optical plates (FOP) with different thicknesses.

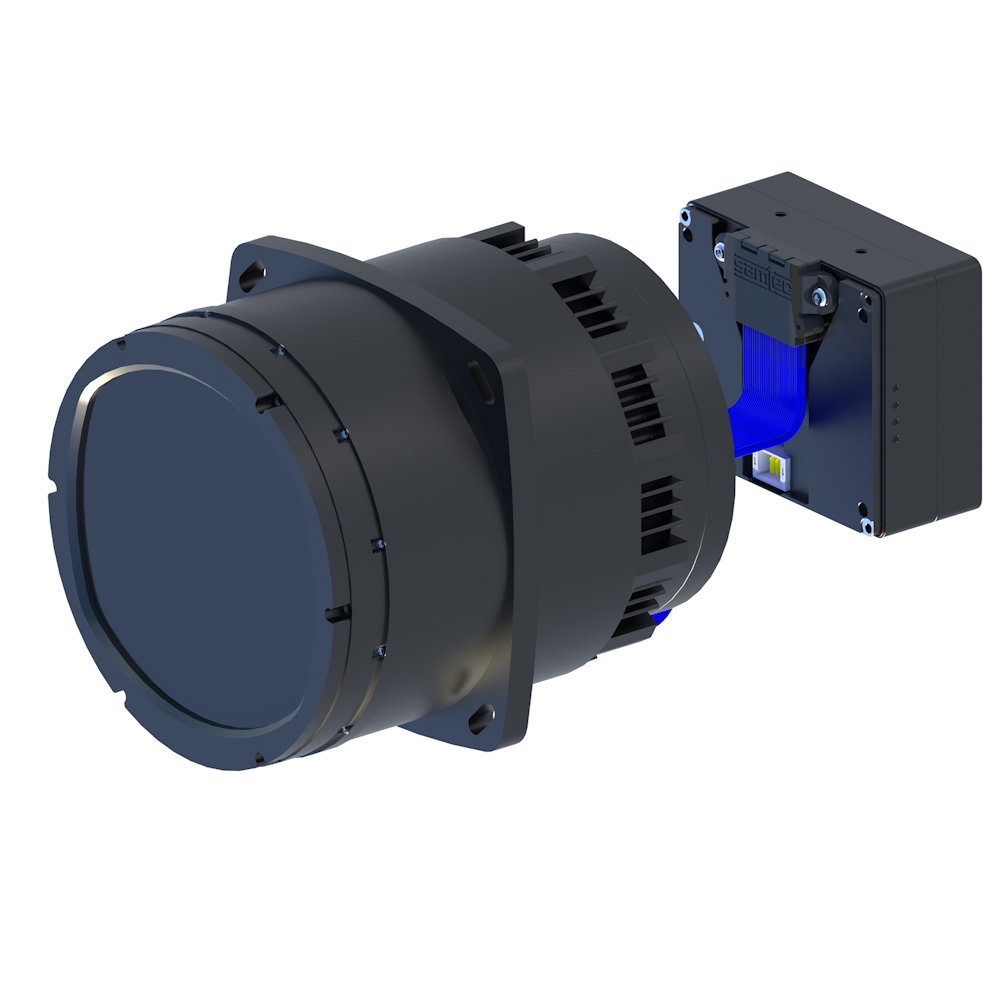

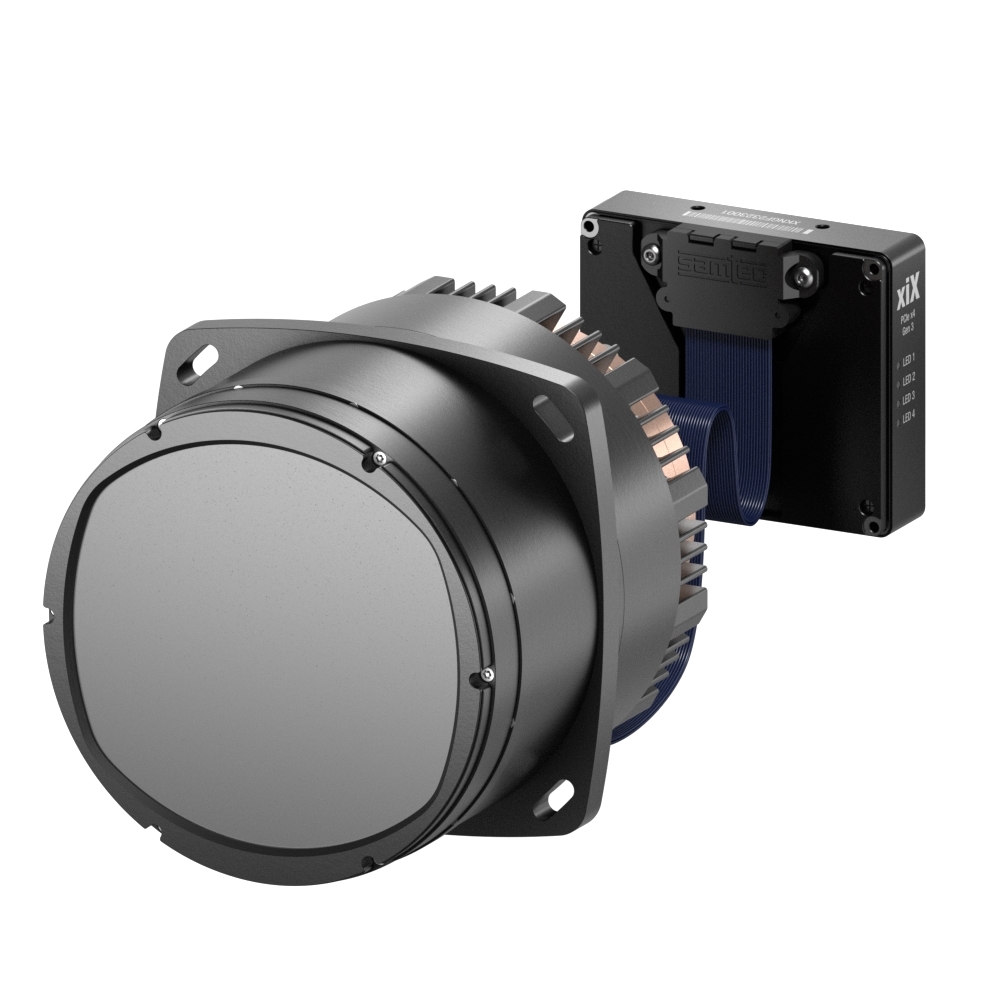

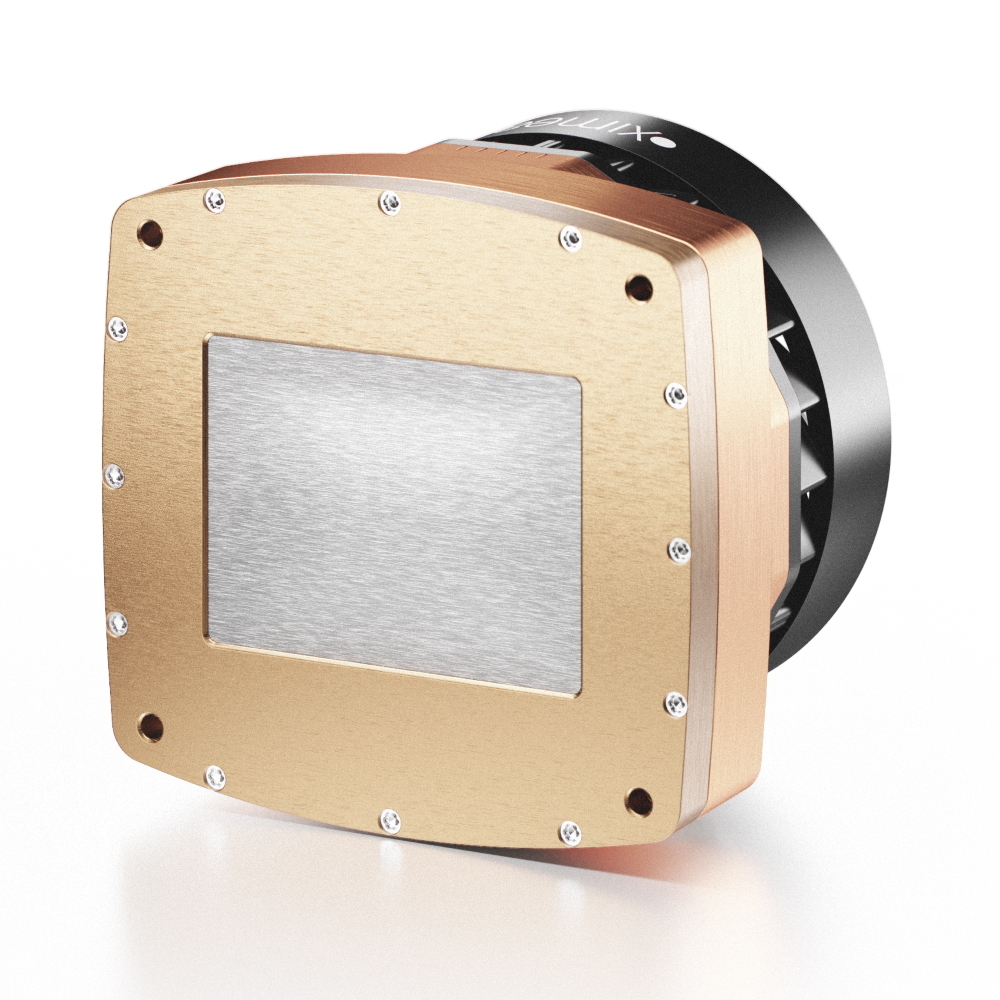

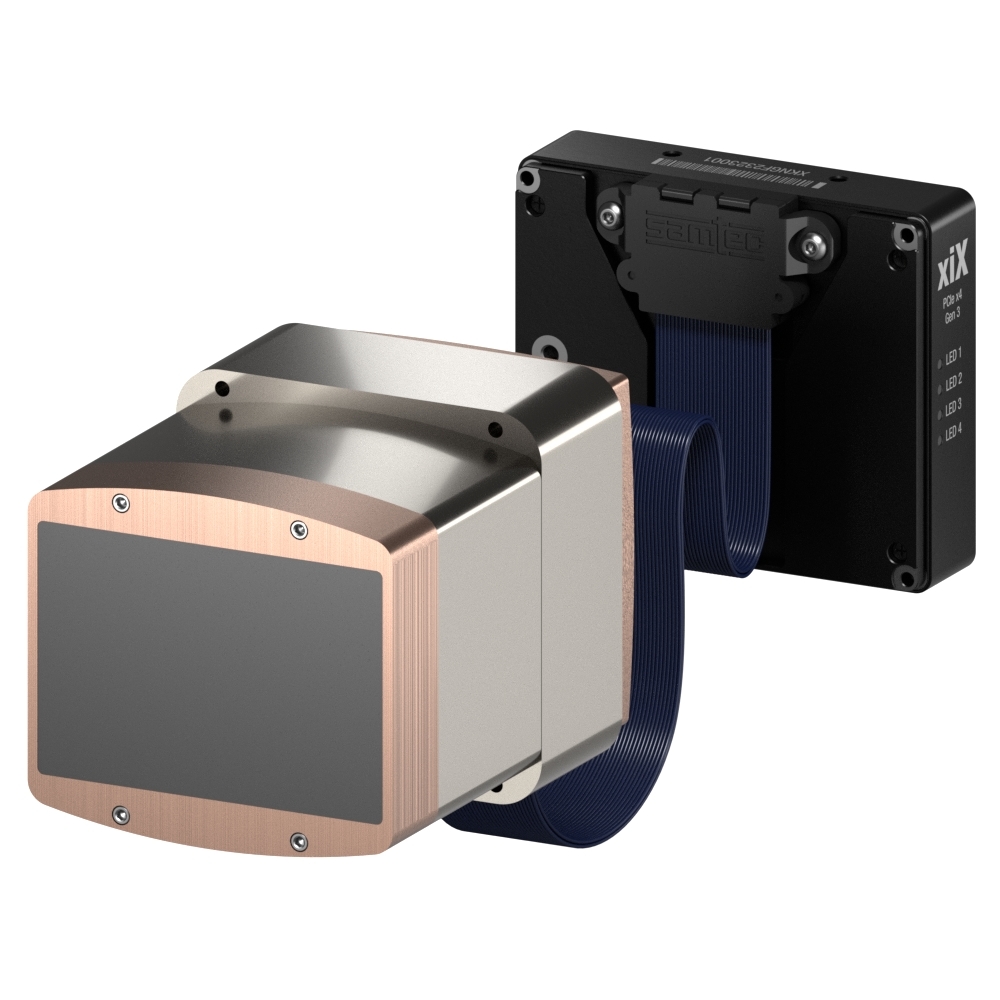

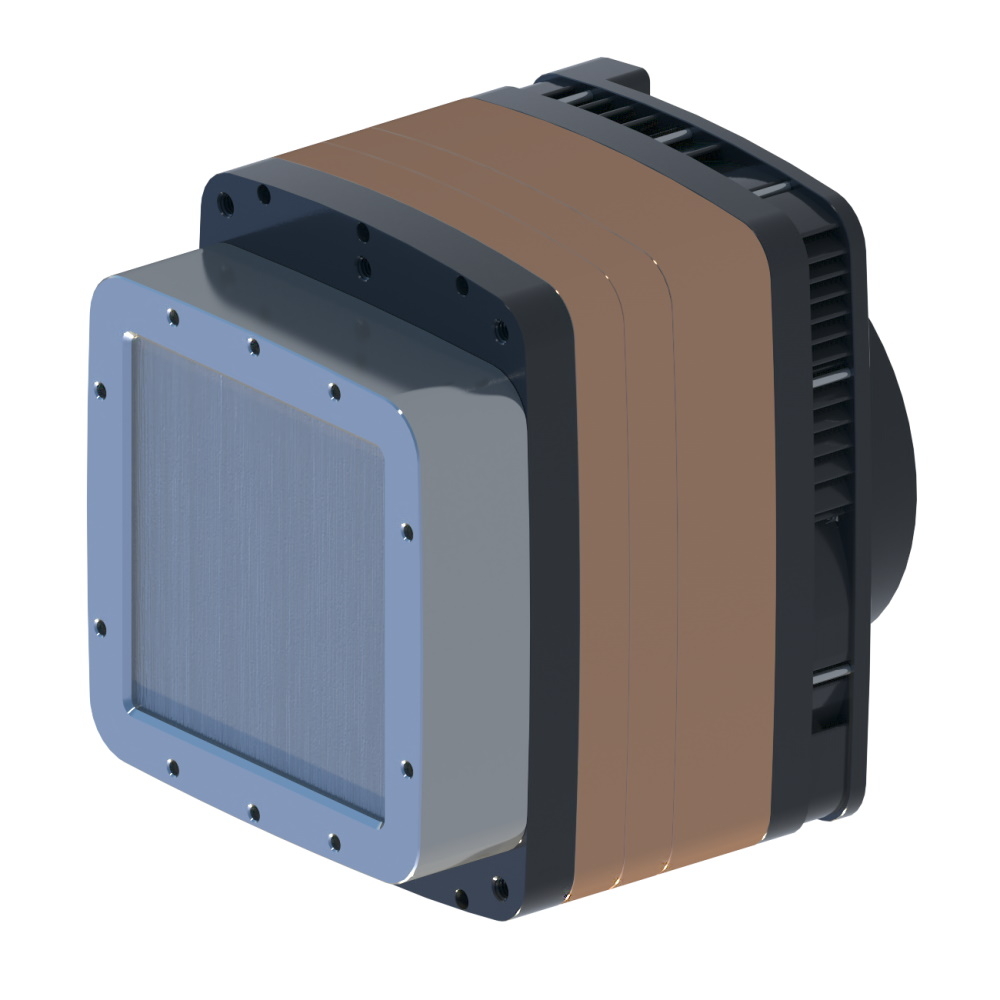

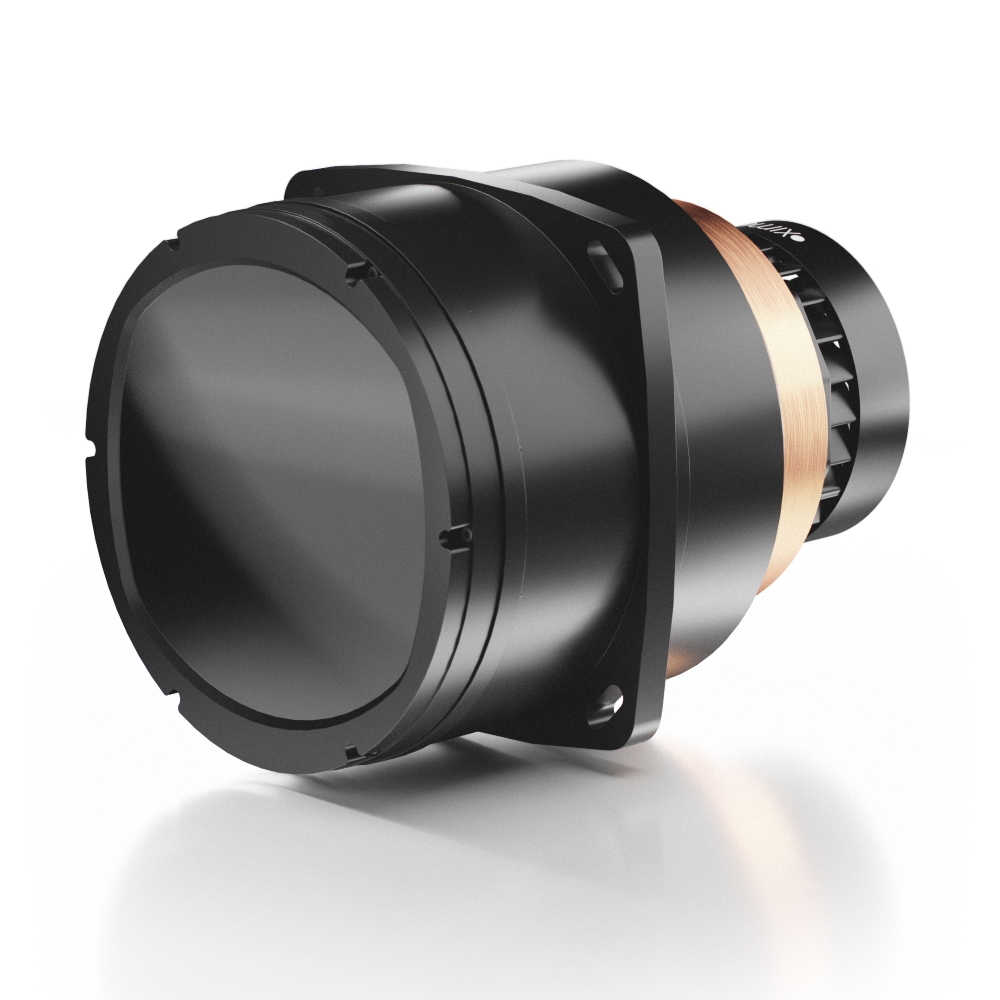

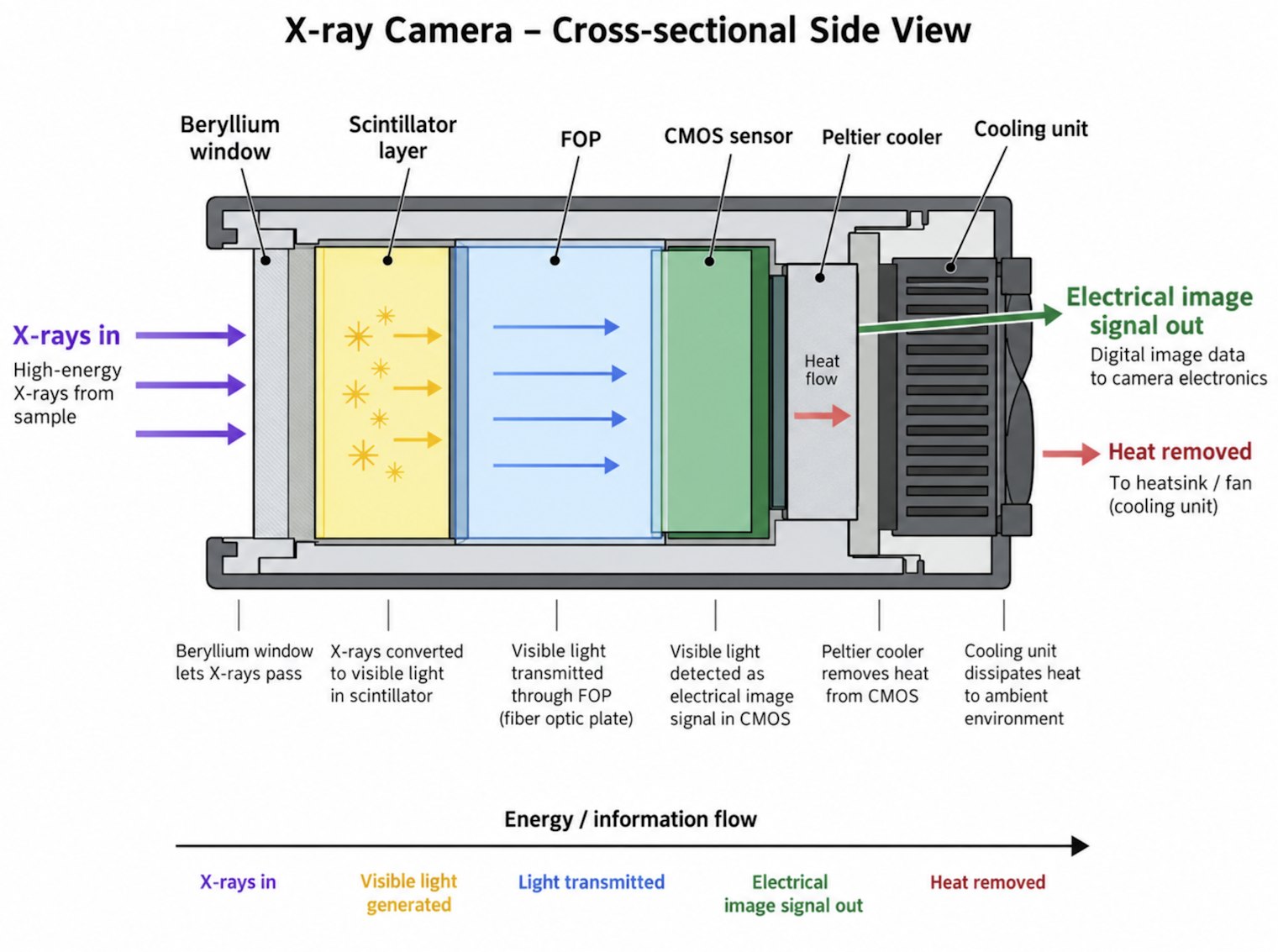

The optical configuration of our imaging system is equally versatile, offering both straight optics (FOP) and tapers (FOT) to accommodate various fields of view (FOV), providing a seamless integration into a myriad of scientific investigations. Altogether tailored scintillator material based on your experiment's requirements/demands will further enhance the precision and versatility of the X-ray imaging solution.

  • High-resolution direct phosphor imaging, ideal for micro CT

  • Sensitive full frame sensors with backside illumination for high QE

  • Fastest frame rates with interface options - USB3 or Thunderbolt 3

  • Partial ROI and binning modes for enhanced sensitivity and speed

  • Variety of sensor, scintillator and fiber optic plate options, which can be further customized

  • Crystal clear 14 and 16 bit/pixel images

  • Ultra-low readout noise and maximum SNR with the newest sCMOS

  • High and low gain modes for best values in FWC and dynamic range

  • External triggering, low power consumption even with cooling

  • Compact dimensions of just 63 x 63 x 46 mm and less

  • Radiation hardened, support of energy levels of 7 and over 100 keV

  • Thermoelectric Peltier cooling with air or water heat dissipation

  • Temperature stabilization to minimize dark current at long exposures

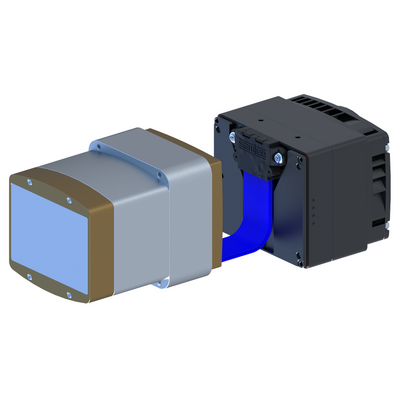

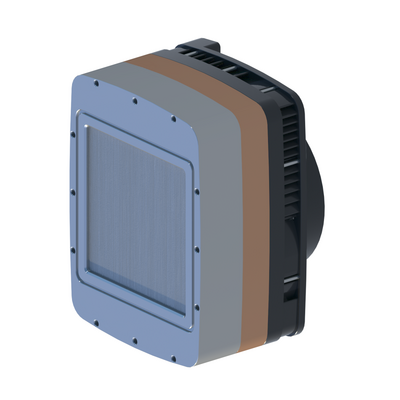

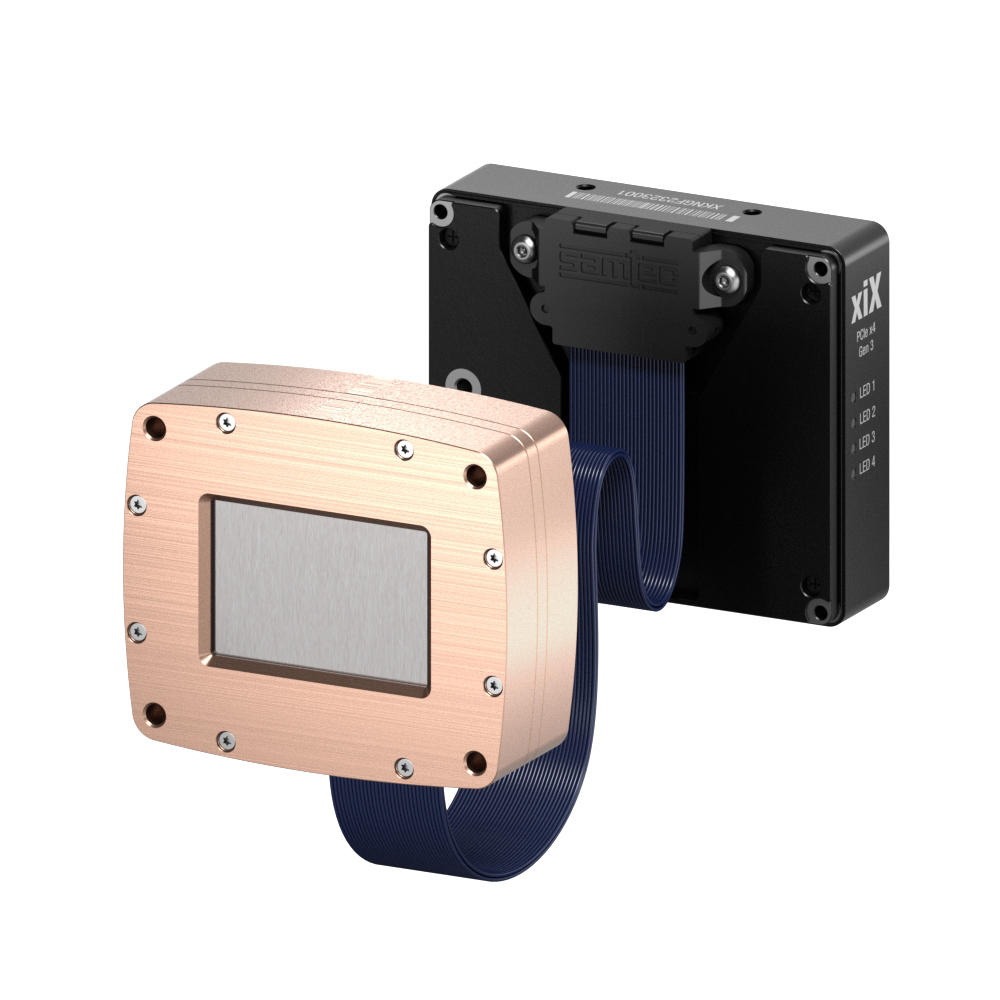

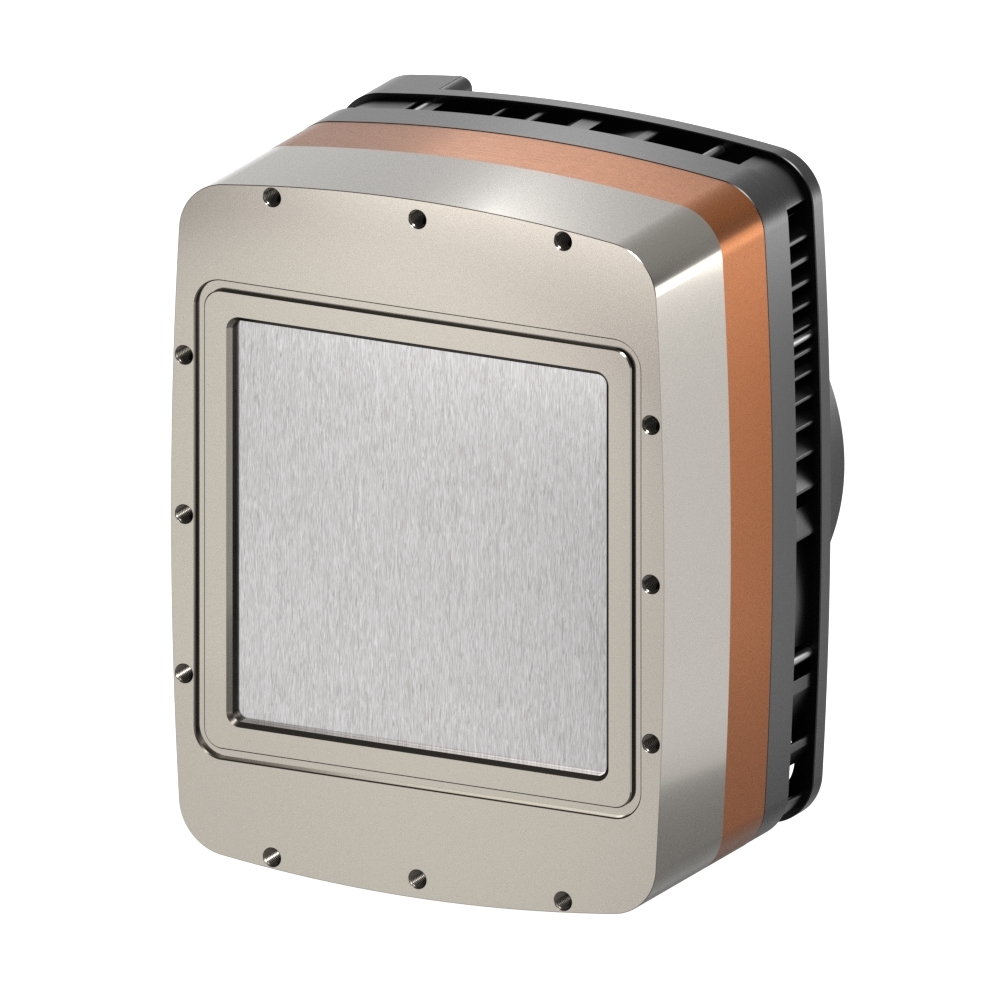

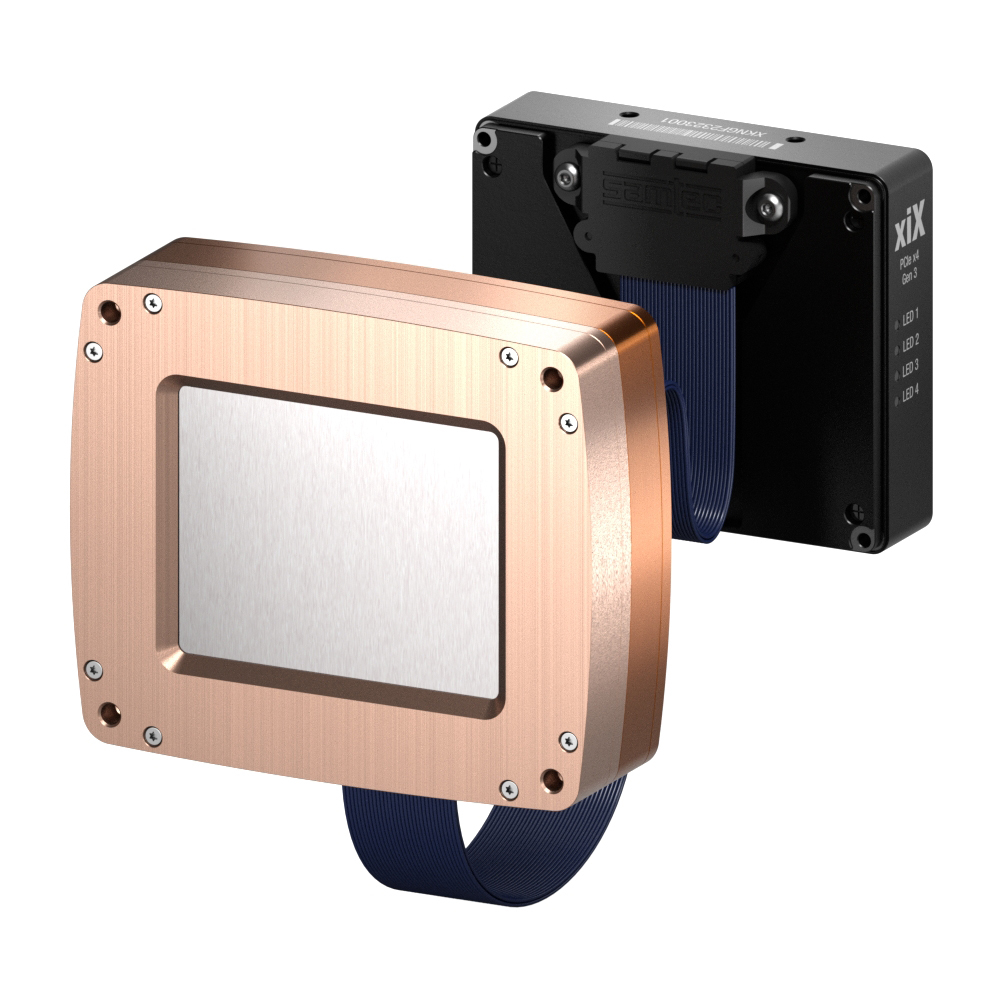

Models of cooled X-ray cameras with CCD and sCMOS sensors

Model Resolution Sensor model Sensor size Sensor active area Pixel size Saturation Capacity Readout noise Dynamic range Interface Frame rate
MJ150XR-GP-FA-GO 15.1 MPix GSENSE5130  APS-C  21 x 12 mm 4.25 µm 16500 e- 1.6 e- 77 dB USB3  16 FPS
MJ150XR-GP-TP2:1-GO 15.1 MPix GSENSE5130  APS-C  43 x 25 mm 8.5 µm 16500 e- 1.6 e- 77 dB USB3  16 FPS
MX377XR-GP-F1-FA-CSI 38 MPix GSENSE6060 FSI  Medium format  62 x 61 mm 10 µm 110000 e- 4 e- 90 dB PCIe Gen 3  45 FPS
MX377XR-GP-F1-FA-GO 38 MPix GSENSE6060 FSI  Medium format  62 x 61 mm 10 µm 110000 e- 4 e- 90 dB PCIe Gen 3  45 FPS
MX510XG-GP-FA-GO 51.2 MPix GMAX4651  Medium format  38 x 27 mm 4.6 µm 22000 e- 2 e- 65 dB PCIe Gen 2  35 FPS
MX510XG-GP-TP2:1-GO 51.2 MPix GMAX4651  Medium format  77 x 55 mm 9.2 µm 22000 e- 2 e- 65 dB PCIe Gen 2  35 FPS
MX610XR-SY-FA-GO 61 MPix IMX455  35mm Full Frame  35 x 23 mm 3.76 µm 51000 e- 1 e- 78 dB PCIe Gen 3  17 FPS
MX610XR-SY-TP1.5:1-C 61 MPix IMX455  35mm Full Frame  35 x 23 mm 3.76 µm PCIe Gen 3  17 FPS
MX610XR-SY-TP2:1-GO 61 MPix IMX455  35mm Full Frame  35 x 23 mm 3.76 µm 51000 e- 1 e- 78 dB PCIe Gen 3  17 FPS
MX1510XR-SY-FA-GO 150.8 MPix IMX411  Medium format  53 x 40 mm 3.76 µm 50000 e- 1 e- 78 dB PCIe Gen 3  2.0 FPS
SWIPE FOR MORE
(1) The production of the onsemi CCD sensors has been discontinued, if you are looking for alternatives or have any further questions, please contact our sales team.
(2) For lower cooling temperatures, different scintillators, FOP or sensor versions - please also inquire with our sales team.

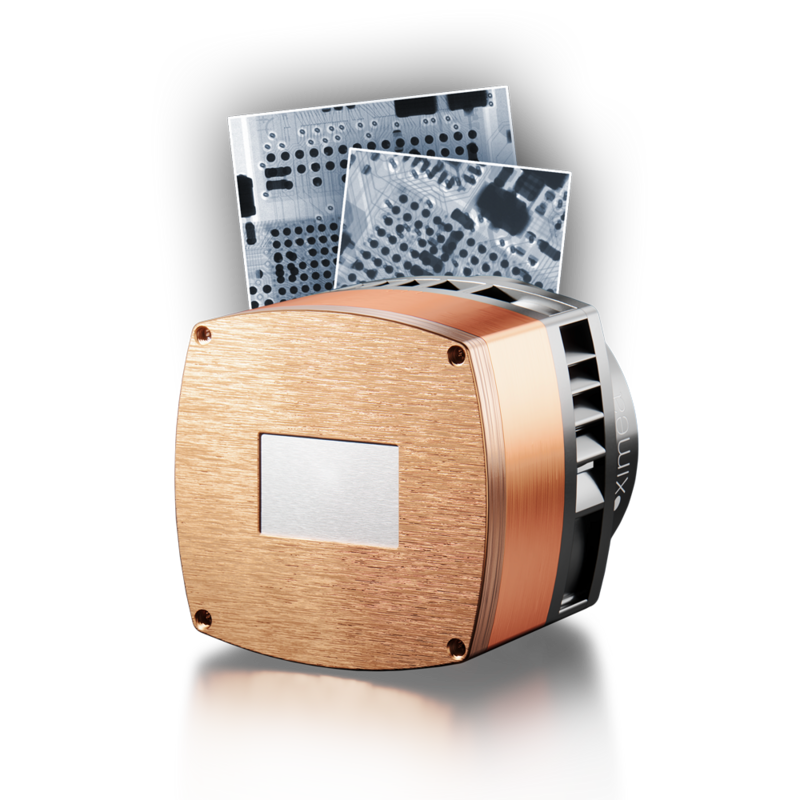

Advantages for Applications using compact X-ray cameras with sCMOS

xiRay-app-black
PRECISE
High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout.
FAST
Incredibly fast interfaces allowing real time processing and various partial readout modes, including Binning and ROI.
SCIENTIFIC
Large format sensors including backside illuminated models with high QE and SNR.
COOL
Thermoelectric cooling to minimize dark current at long exposure times on selected models.
COMPACT

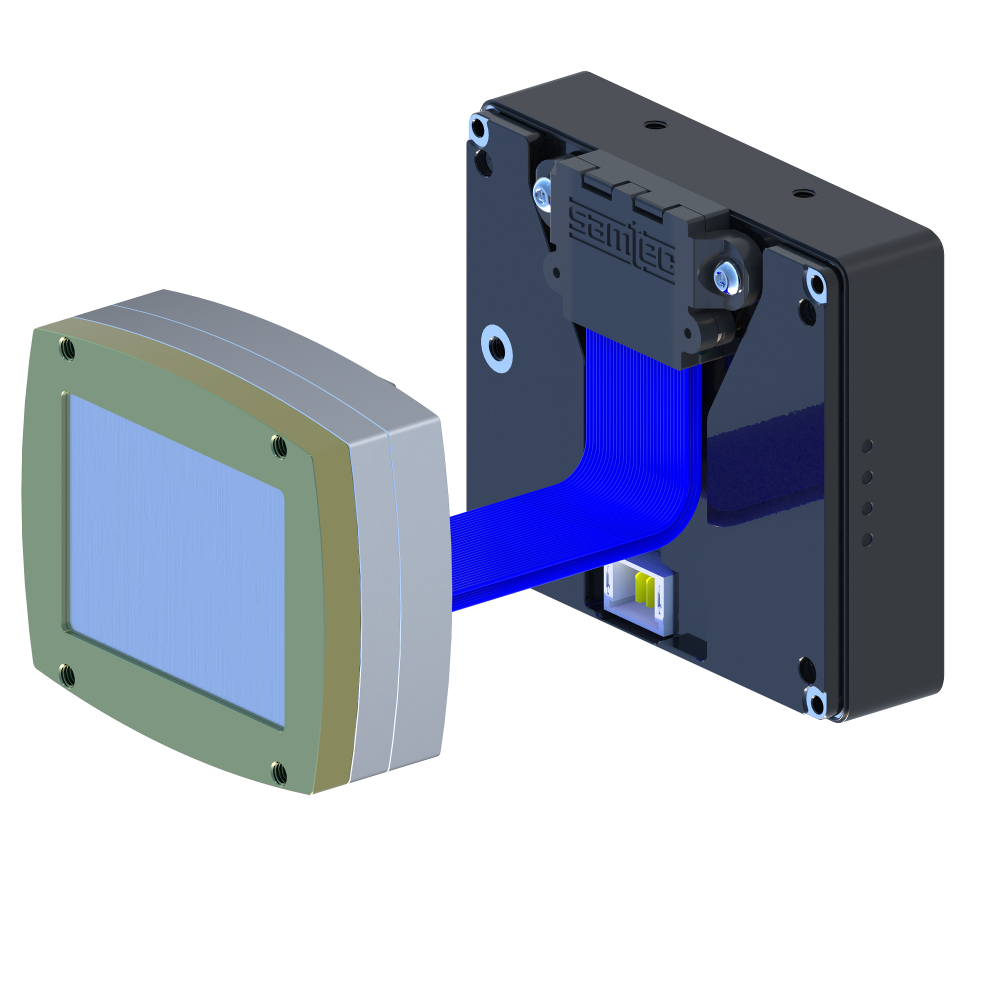

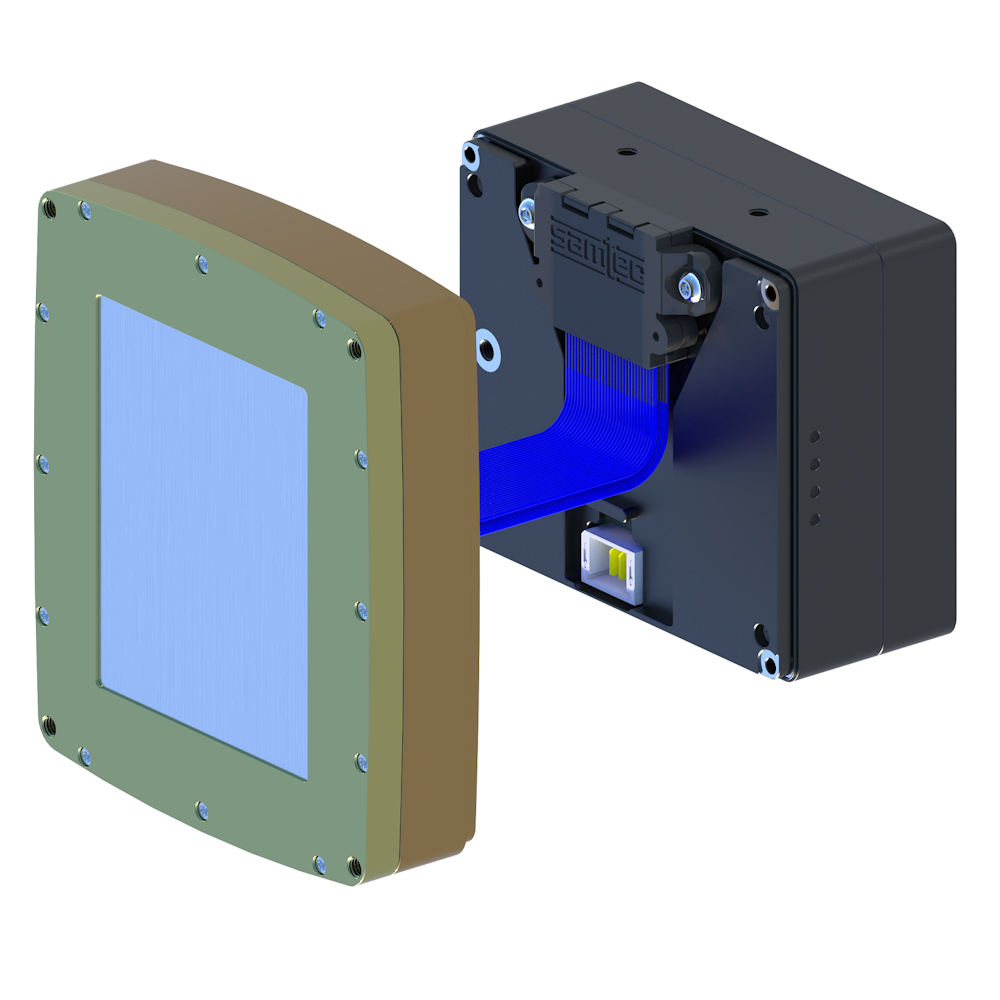

Fiber optic plate bonded directly to a sensor - easy to deploy and replace.
RELIABLE
5 keV - 150 keV radiation energy range with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.
ADAPTABLE
Various modes for best results in FWC, dynamic range, noise and speed.
ROBUST
CNC milled aluminum alloy housing guarantees stability and longevity.
CUSTOMIZABLE
OEMs can modify the scintillator material and phosphor thickness or other parameters according to your needs for X-ray energy, resolution, field of view, pixel size and more.

Utilization of X-ray imaging in various Fields and Applications

X-ray-diffraction-scattering-saxs-waxs-fluorescence-powder-coherent-applications-camera-application
Diffraction and scattering
Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and fluorescence (XRD, XRF), powder diffraction, coherent diffraction.
Life-Science-micro-nano-ct-computed-tomography-radiography-medical-biology-applications
Life science

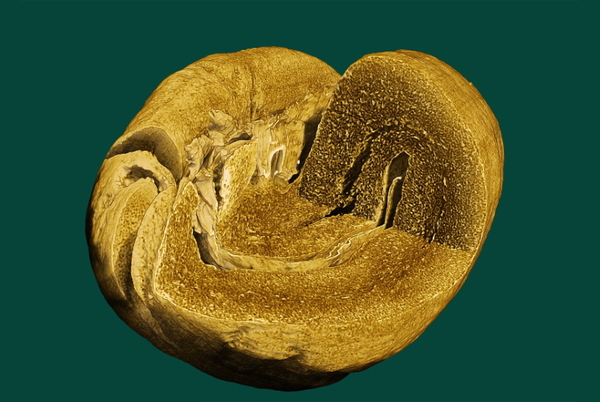

Micro and nano CT (computed tomography), radiography, medical and biology research, light sheet microscopy (LSFM), small animal and cell structure.
X-ray-industrial-image-sensor-solar-panel-cell-inspection-pcb-analysis-applications

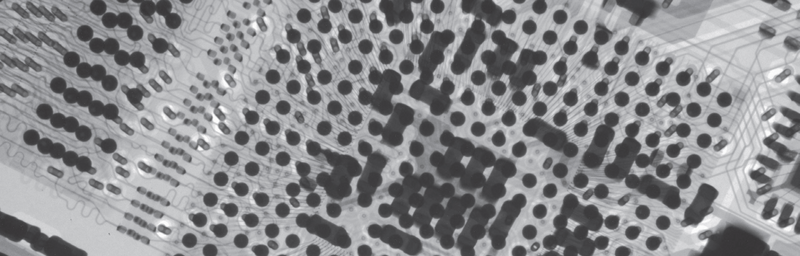

Industrial

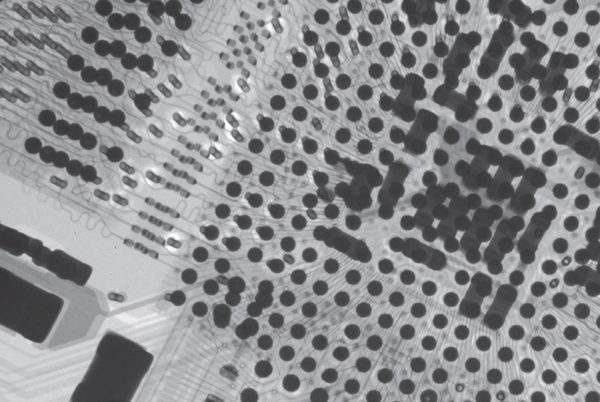

Solar panel and cell inspection, industrial PCB analysis, ball grid array (BGA), energy research, phase contrast imaging, structural engineering, fluid dynamics.
