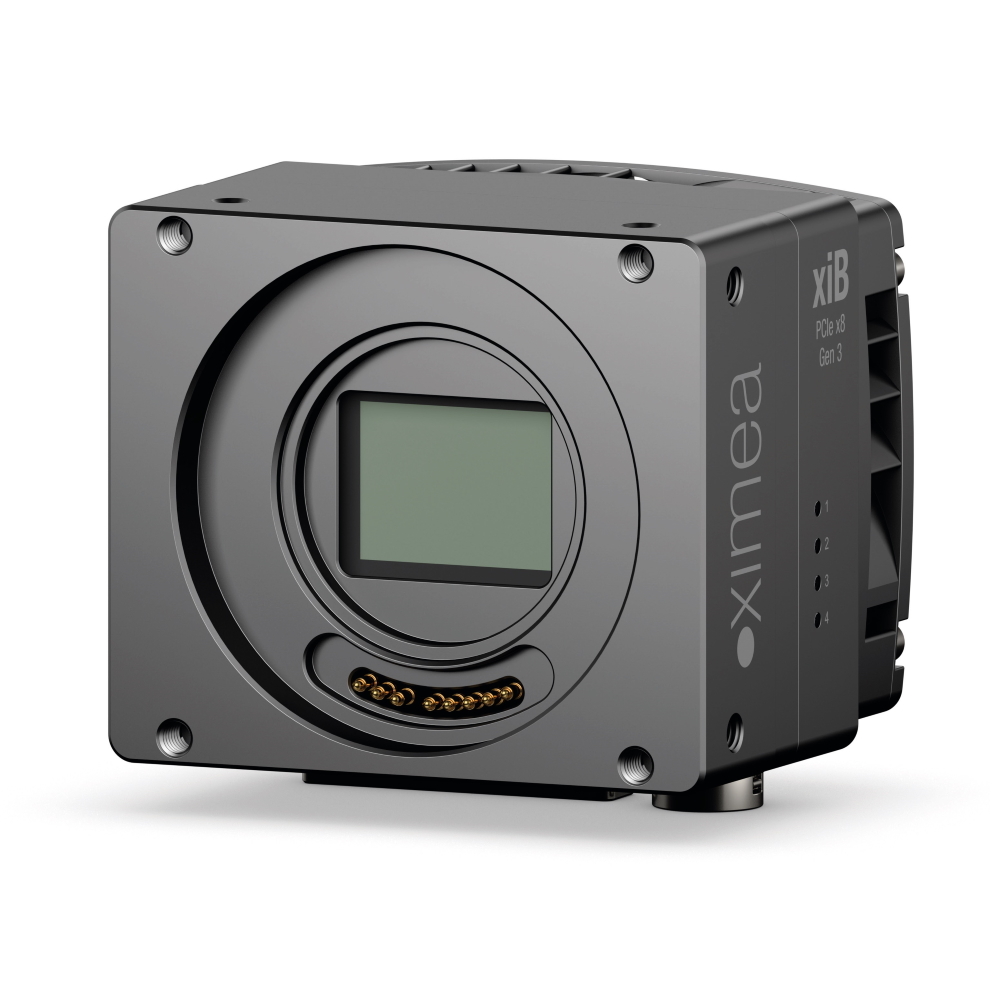

CB120CG-CM-X8G3
High speed camera with 12.5 Mpix Color CMOSIS CMV12000 sensor and PCIe Gen 3 interface
Product statusActive
- Resolution 12.5 MPix
- PCIe Gen3 speed of 64 Gbit/s offers astonishing 335 FPS
- Fast sensor ideal for high speed applications
- No frame grabber required - cable distances up to 100m
The data is transferred and can be processed in real time.
Minimal latency with direct memory access - DMA.
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
High resolution (up to 64 Mpix) global shutter sensors without motion artifacts.
FAST
High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.
FUNCTIONAL
Active Canon EF-mount option for aperture and focus control through the camera.
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.
Specification
|
Sensor properties
|
||
| Resolution | 12.5 MPix | |
| Sensor resolution | 4096 x 3072 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV12000 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | APS-C | |
| Sensor active area | 22 x 16 mm | |
| Sensor diagonal | 28.2 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 335 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| On-chip decimation | 1x1, 2x2 | |
| Interface | PCIe Gen 3 | |
| Data interface speed | 63.04 Gbit/s | |
| Data connector type | PCIe-iPass-X8G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 16 µs | |
| Exposure maximum | 82 s | |
| Power consumption | 17.8 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | No | |
| Special features | Taped glass | |
| Internal memory | 2 GB | |
|
EMVA 1288 results
|
||
| Dynamic range | 56.7 dB | |
| Full well Capacity | 13500 e- | |
| Saturation Capacity | 9384.5 e- | |
| Readout noise | 13.2 e- | |
| Signal to noise ratio | 40.2 dB | |
| Peak QE red | 39% 600nm | |
| Peak QE green | 41% 520nm | |
| Peak QE blue | 39% 460nm | |
| Gain analog max | 63 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | EF-mount option | |
| Enclosure type | Standard housing | |

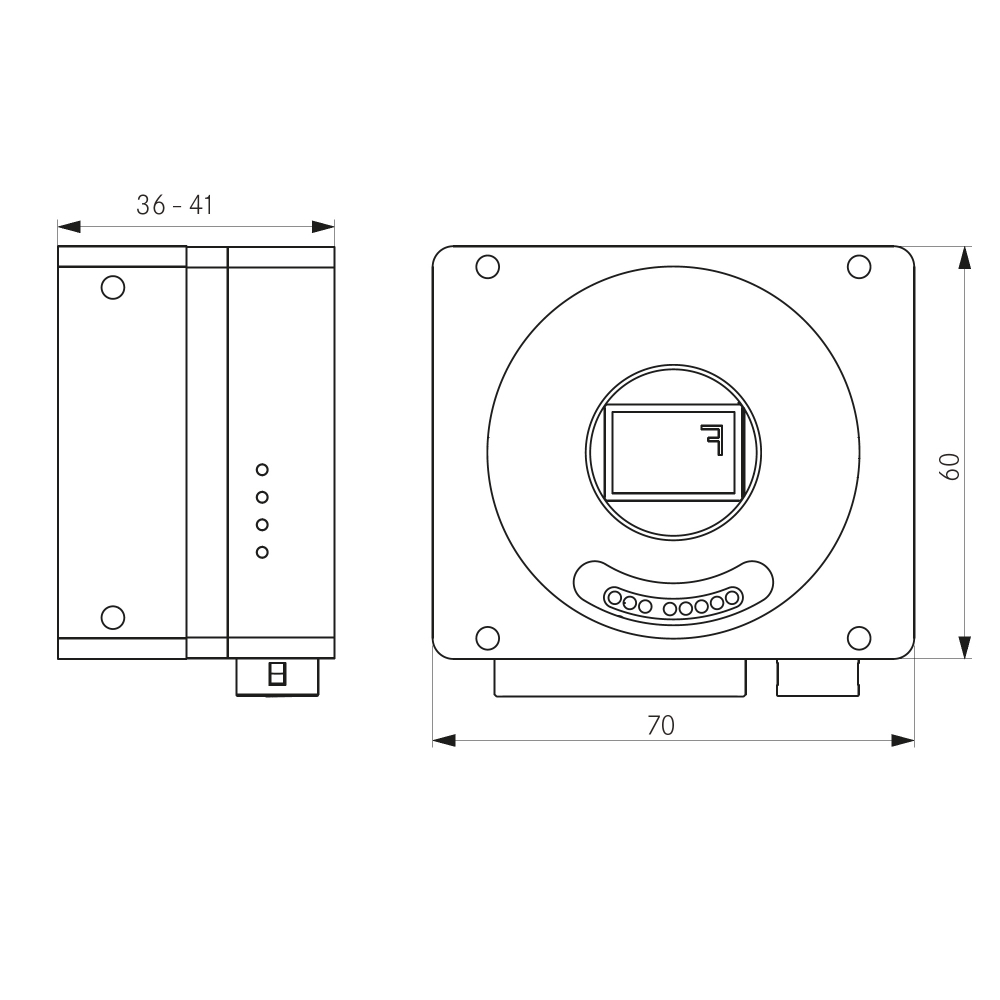

| Physical dimensions (WHD) | 70 x 60 x 40 mm | |
| Mass - weight | 280 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
High speed
Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking, Vehicle Impact, Airbag Deployment, Safety Restraints Testing.
Particle imaging
Flow visualization and flight, bullet, glass dynamics, Digital image correlation (DIC), Fluidics and Particle Image Velocimetry (PIV), Laser illumination, Schlieren.
Broadcasting
Cinematography, Entertainment, Instant replays for sports imaging - baseball, tennis, football, basketball, golf, ping pong and more. Print and Film scanning.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping and surveying with UAV / UAS drones or autonomous vehicles.
Scientific
Cell sorting, Microfluidics, Neurology, Animal behavior, flight kinematics, walking mechanics,
force vector analysis, Fluorescence microscopy.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB), Photovoltaics, Metrology, Electroluminescence on Solar panels, Semiconductor wafer scanning.
Machine vision
Industrial and Factory Automation, Production line monitoring, Electronics bonding examination, assemblies defect detection, Gauging.
