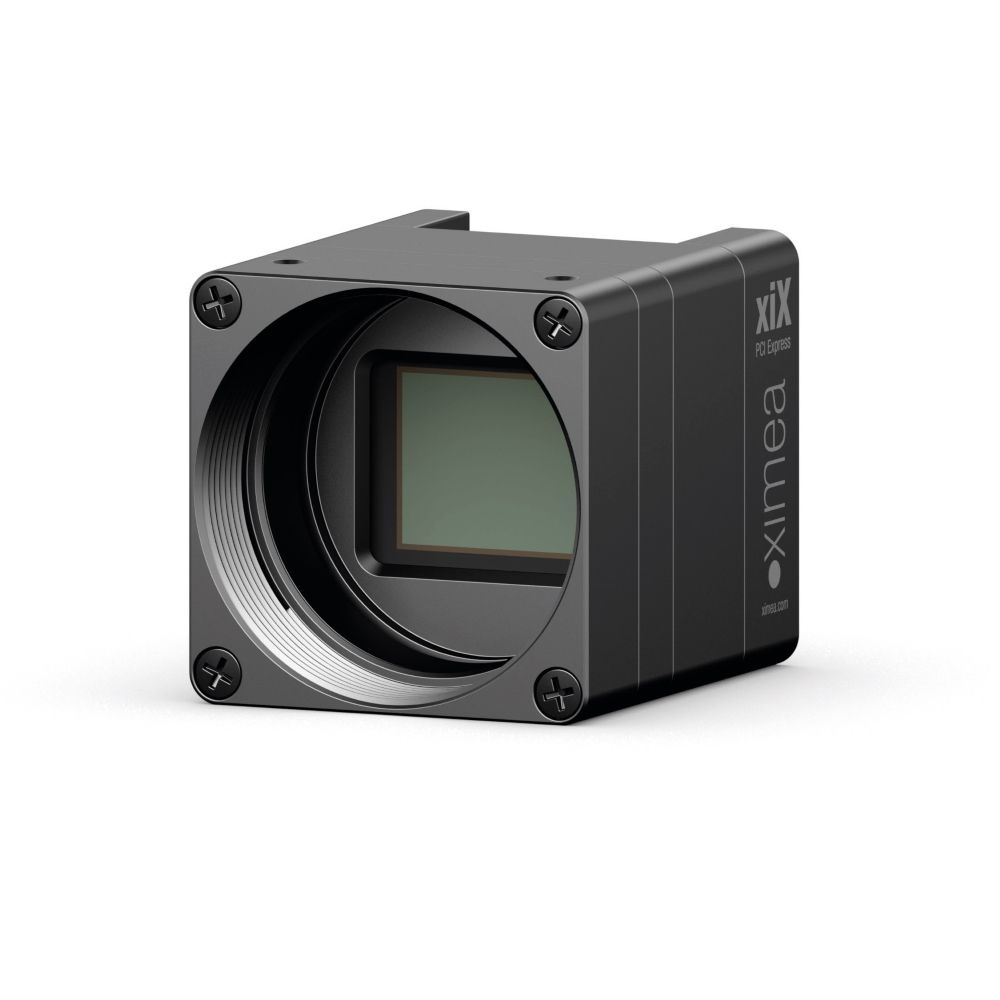

MX081CG-SY-PG4-X2G2-HDR

Embedded camera with 8.1 Mpix Color SONY IMX536 sensor and PCIe Gen 2 interface

Product statusTechnical sample
Sensor vendorSONY
Sensor modelIMX536
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate87 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
Global shutter Pregius™ sensors deliver outstanding imaging quality.
Highlight_Light-weight
LEIGHT-WEIGHT
Payload-friendly SWaP for mobile, robotics, gimbals, or UAV/UAS applications.
Highlight_Omnipresent
OMNIPRESENT
Compatible with the xiSwitch. Built for maximum flexibility and with multi camera setups in mind, ideal for Photogrammetry and VR.
Highlight_Diverse
DIVERSE
Wide range of Sony Pregius™ global shutter sensors from 2 Mpix to 24 Mpix.
Specification
Sensor properties
Resolution 8.1 MPix
Sensor resolution 2856 x 2848
Sensor vendor SONY
Sensor model IMX536
Sensor type Color
Sensor technology CMOS
Sensor size 2/3"
Sensor active area 7.8 x 7.8 mm
Sensor diagonal 11.1 mm
Pixel size 2.74 µm
Shutter type Global shutter
Camera properties
Frame rate 87 FPS
Bits 8, 10, 12 bits
On-chip decimation 2x2
Interface PCIe Gen 2
Data interface speed 8 Gbit/s
Data connector type PCIe-Flex-X2G2
GPIO count Inputs: 3, Outputs: 3
Exposure minimum 9 µs
Exposure maximum 30 s
Power consumption 4.16 Watt
Heat dissipation Optional Heatsink
Special features Dual ADC
EMVA 1288 results
Gain analog max 24 dB
Mechanical properties
Lens mount C-mount
Enclosure type Standard housing

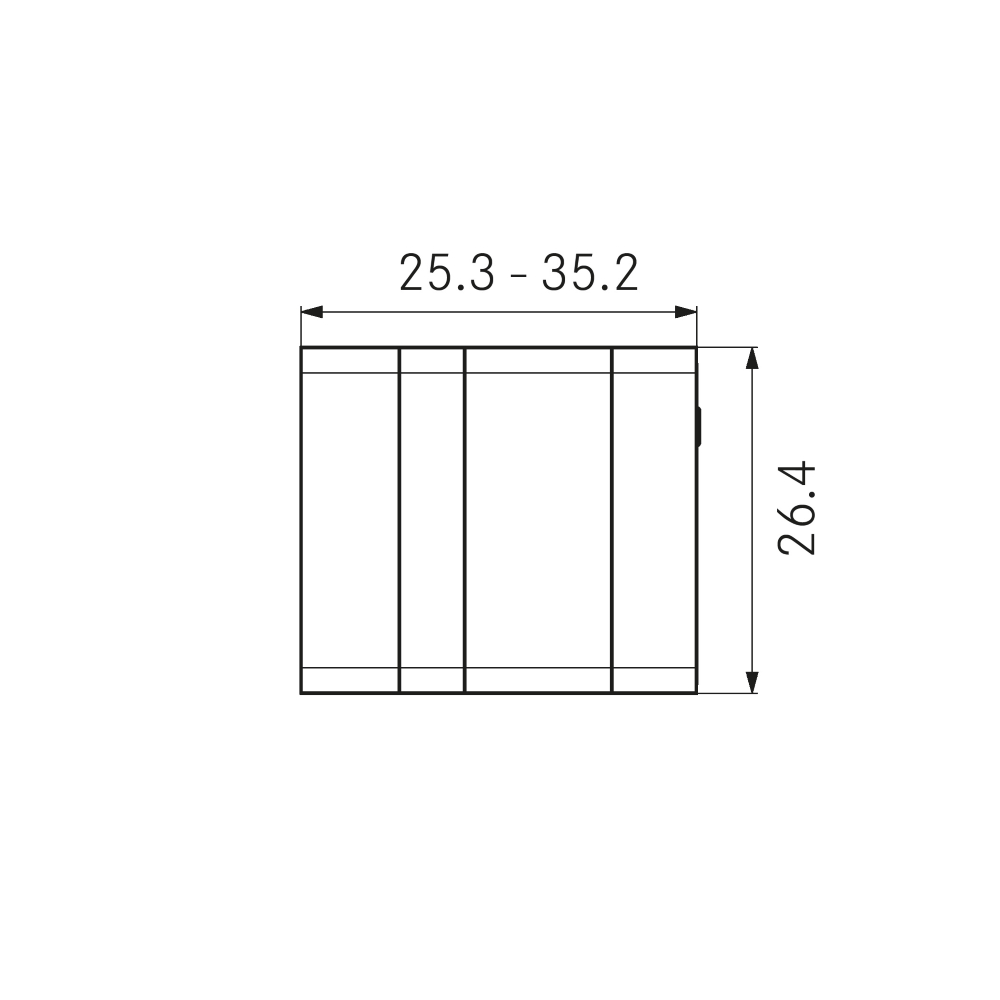

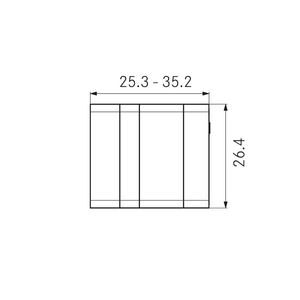

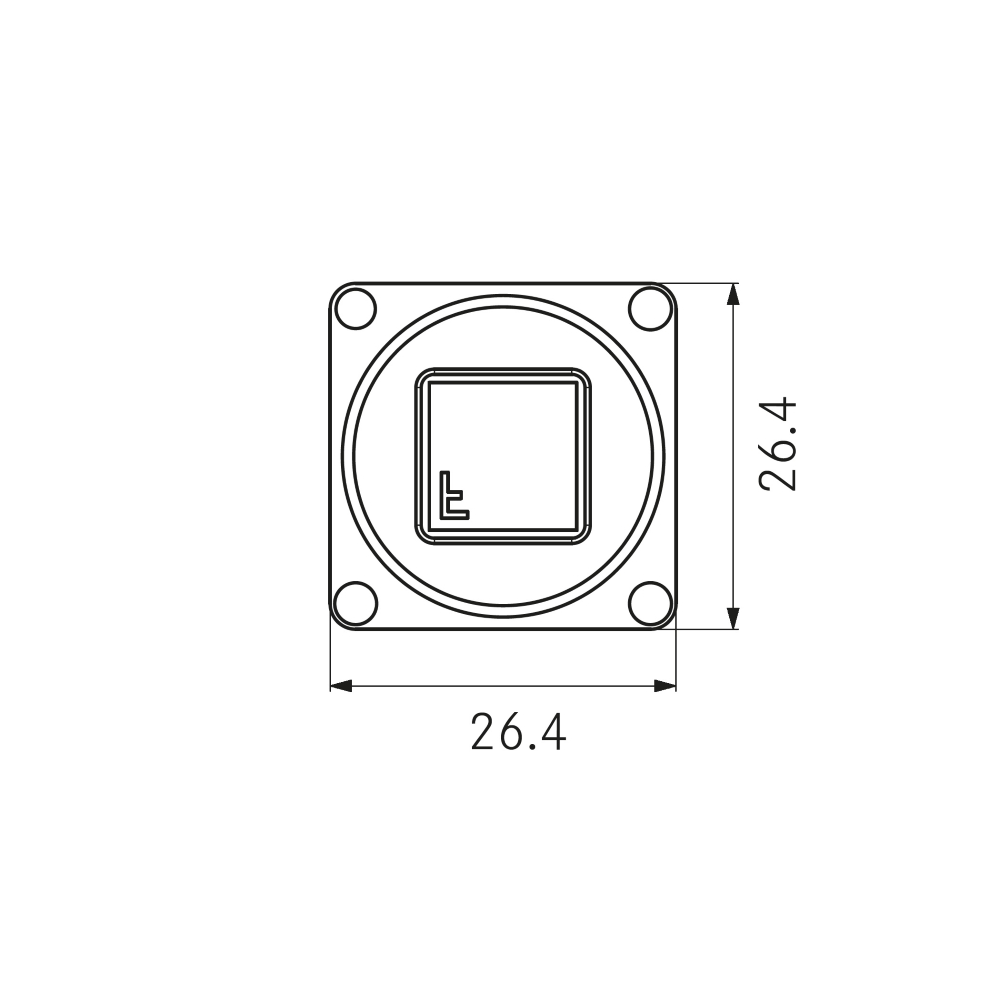

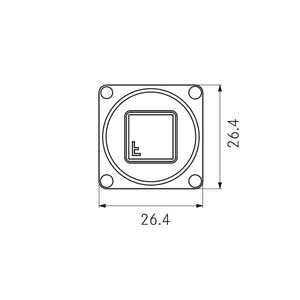

Physical dimensions (WHD) 26.4 x 26.4 x 31 mm
Mass - weight 30 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiX family

Technology


Sensor technology CMOS, Global shutter
Bandwidth 10 and 20 Gbits over PCIe Gen2 x2 and x4 lanes
Acquisition Modes Continuous, software and hardware trigger, fps limiting, triggered exposure and burst
Digital Output 8, 10, 12 bit RAW pixel data digitization
Interface Flexible flat ribbon cable and breakout board options to iPass external PCIe connector
General purpose I/O 2x opto-isolated input, 2x opto-isolated output, and 4 non-isolated I/O, 4X user configurable LEDs
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Lens mount C/CS or EF mount with Active Lens Control – focus, iris, image stabilization

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported - model specific
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure; HDR (High Dynamic range)
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time
Latency Computer CPU is not involved in data transfer, latency from camera to memory is minimal

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Linux Ubuntu, ARM, MacOS 10.8 and newer, NVIDIA Jetson modules
Minimum host hardware Intel i5 3.0GHz, +2GB RAM physical memory, Motherboard with PCIe x4 Gen2

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, GenICam/GenTL, PCI Express External Cabling Specifications compliant
