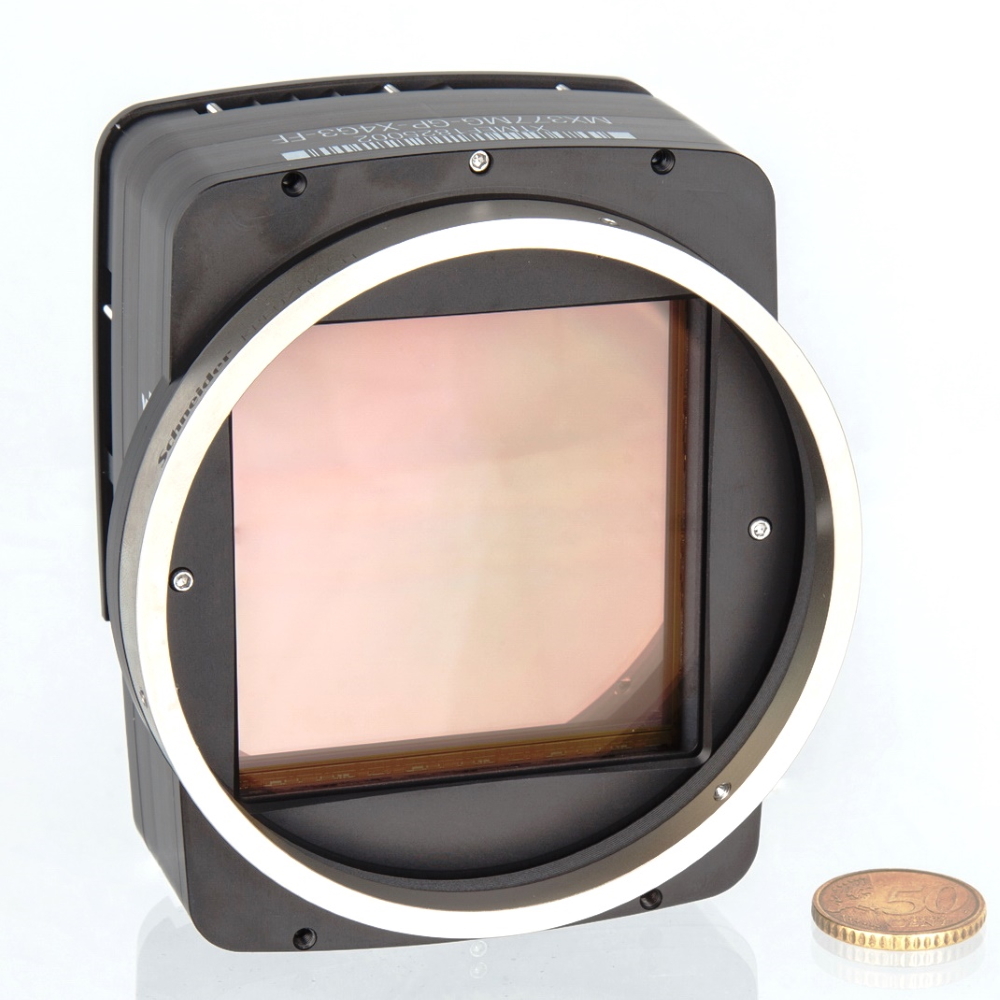

MX377
MX377MR-GP-Fx-X4G3-MTP

Cooled large 62 x 61 mm sensor camera with 38 Mpix based on Gpixel GSENSE6060 FSI sCMOS

Product statusEngineering-Sample
Sensor vendorGpixel
Sensor modelGSENSE6060 FSI
Sensor technologysCMOS
Shutter typeRolling shutter
Frame rate48 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
Built with the latest 6k x 6k sCMOS sensors from the Gpixel's GSENSE family. With 37 Mpix resolution and 10 µm pixel size, these are fine tuned for quantitative imaging
Highlight_Robust
ROBUST
Aluminum alloy, CNC machined, rugged housing designed to achieve long life and minimize size.
Highlight_Cool
COOL
Thermoelectric Peltier sensor cooling down to -20°C, enhanced with air fan or liquid water module option
Highlight_Scientific
SCIENTIFIC
Different sensor grades with sCMOS technology for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging
Specification
Sensor properties
Resolution 38 MPix
Sensor resolution 6200 x 6144
Sensor vendor Gpixel
Sensor model GSENSE6060 FSI
Sensor type Monochrome
Sensor technology sCMOS
Sensor size Medium format
Sensor active area 62 x 61 mm
Sensor diagonal 87.3 mm
Pixel size 10 µm
Shutter type Rolling shutter
Camera properties
Frame rate 48 FPS
Bits 12, 14, 2 x 12, 2 x 14 bits
On-chip downsampling 4x4
On-chip decimation 1x4
Interface PCIe Gen 3
Data interface speed 32 Gbit/s
Data connector type PCIe-FireFly-X4G3
GPIO count Inputs: 11, Outputs: 11
Exposure minimum 5 µs
Exposure maximum 2147.5 s
Power consumption 20 Watt
Heat dissipation Fan air cooling
Sensor cooling Yes, Yes
Special features HDR, Dual ADC
EMVA 1288 results
Dynamic range 90 dB
Saturation Capacity 110000 e-
Readout noise 4 e-
Signal to noise ratio 51.7 dB

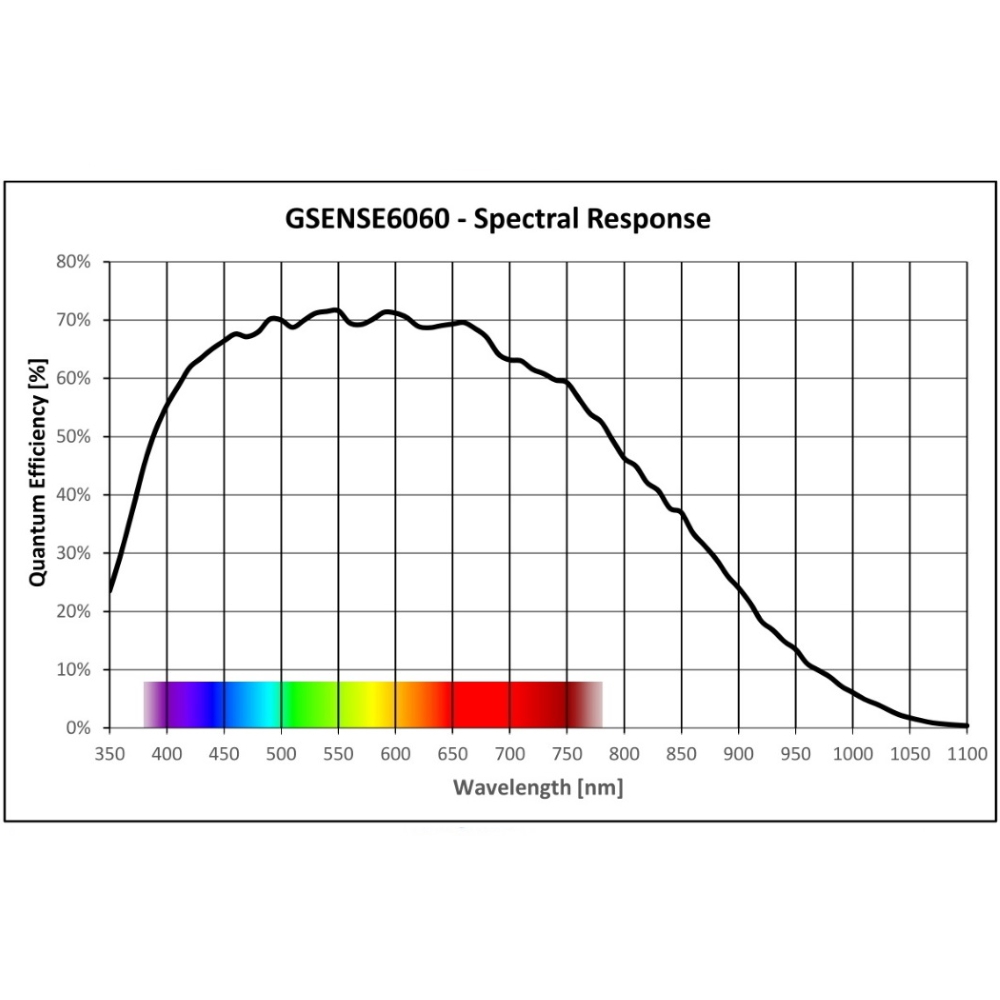

Peak QE 72%
Gain analog max 40 dB

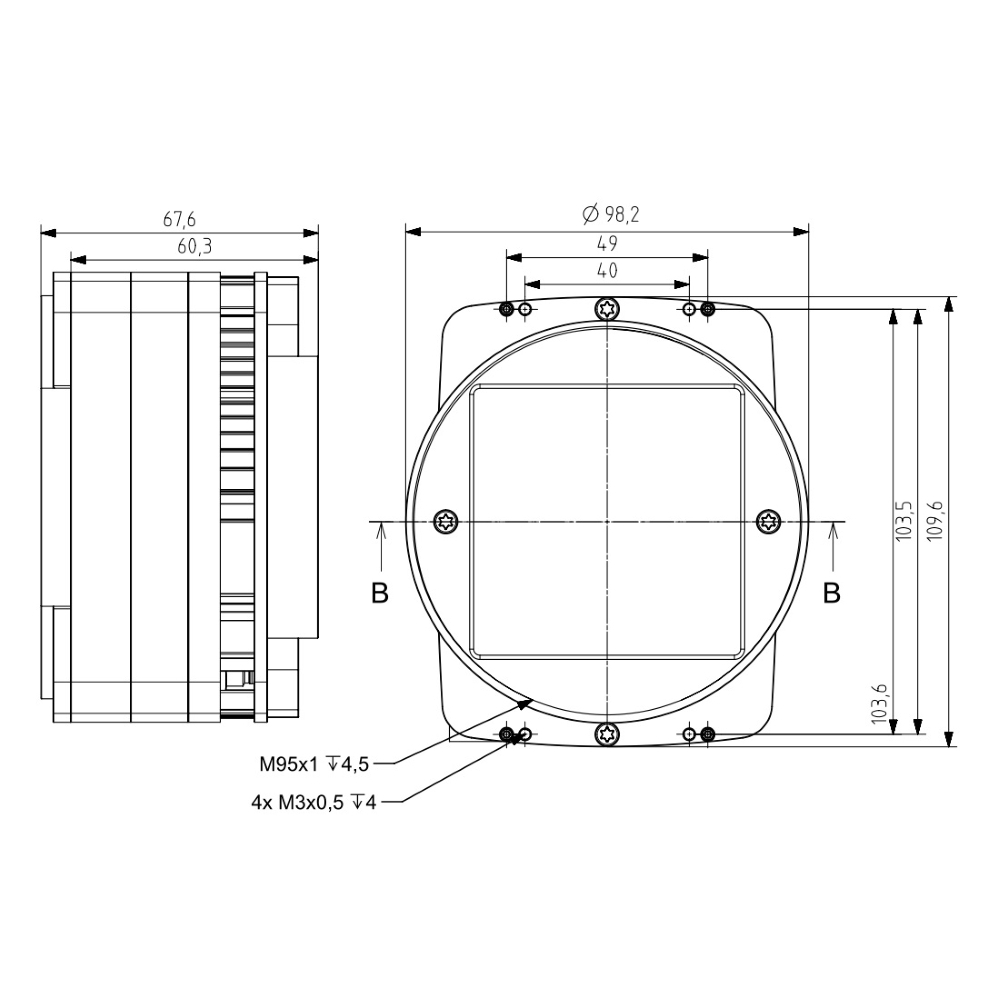

Mechanical properties
Lens mount M95 mount, M95mount-x1
Enclosure type Standard housing
Physical dimensions (WHD) 98 x 110 x 67 mm
Mass - weight 1270 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for MX377 family

Technology


Sensor technology Scientific CMOS or sCMOS
Acquisition modes Rolling shutter
Sensor versions Front side illuminated (FSI) and Backside illuminated (BSI) with various Grades
Digital Output 12, 14, 16 bit RAW pixel data digitization
PCIe interface PCI Express Gen3 x4 lanes standard compliant to PCI Express External Cabling Specifications
General purpose I/O 2x opto-isolated input, 2x opto-isolated output
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Lens mount M95 thread
Cooling Thermoelectric Peltier cooling and fan or water module

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe Gen 3 x4 port

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of MX377 sCMOS cameras in various Applications

Astonomy-Astrophysics-space-application
Space exploration
Bose-Einstein Condensation, BEC dynamics, Nanoparticle, Astronomy, Solar polarimetry, Pulsar imaging, Space debris and NEO tracking, Fluorescence correlation spectroscopy (FCS), Astrophysics
Electron-Microscopy-Fluorescence-light
Fluorescence
Förster resonance energy transfer (FRET), Fluorescence recovery after photobleaching (FRAP), Fluorescence in situ hybridization (FISH), Total internal reflection Fluorescence (TIRF), High Speed Multicolor and Light Sheet
Biomedical-gene
Biomedical
Cell Biology, Biochip reading, Protein/Lipid Trafficking, Membrane Dynamics, gene expression analysis, Biophysics, Biometrics, Genomics, Ion signaling and Transport Physiology, Corona detection
Material-science-minerology-black
Material science
Photoluminescence Spectroscopy, Mineralogy, Photovoltaic inspection, Coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, Quantum Dots and Optics, Intrinsic, Spinning disk confocal imaging
Life-science-tomography-endoscopy
Life science
Endoscopy, Phosphorescence, Digital pathology, Ophthalmology, Gated stimulated emission depletion (GSTED), Electrophysiology, Optical Coherence tomography (OCT), Calcium, Ratiometric, Voltage Sensitive Dyes
Microscopy
Microscopy
Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), Widefield Fluorescence Microscopy
