MX377XR-GP-F1-FA-CSI
X-ray camera with 38 Mpix Gpixel GSENSE6060 FSI sCMOS 62 x 61 mm sensor and PCIe Gen 3 interface
Product statusEngineering-Sample
- Direct phosphor imaging X-RAY camera
- Scientific grade scmos with 38 MPix

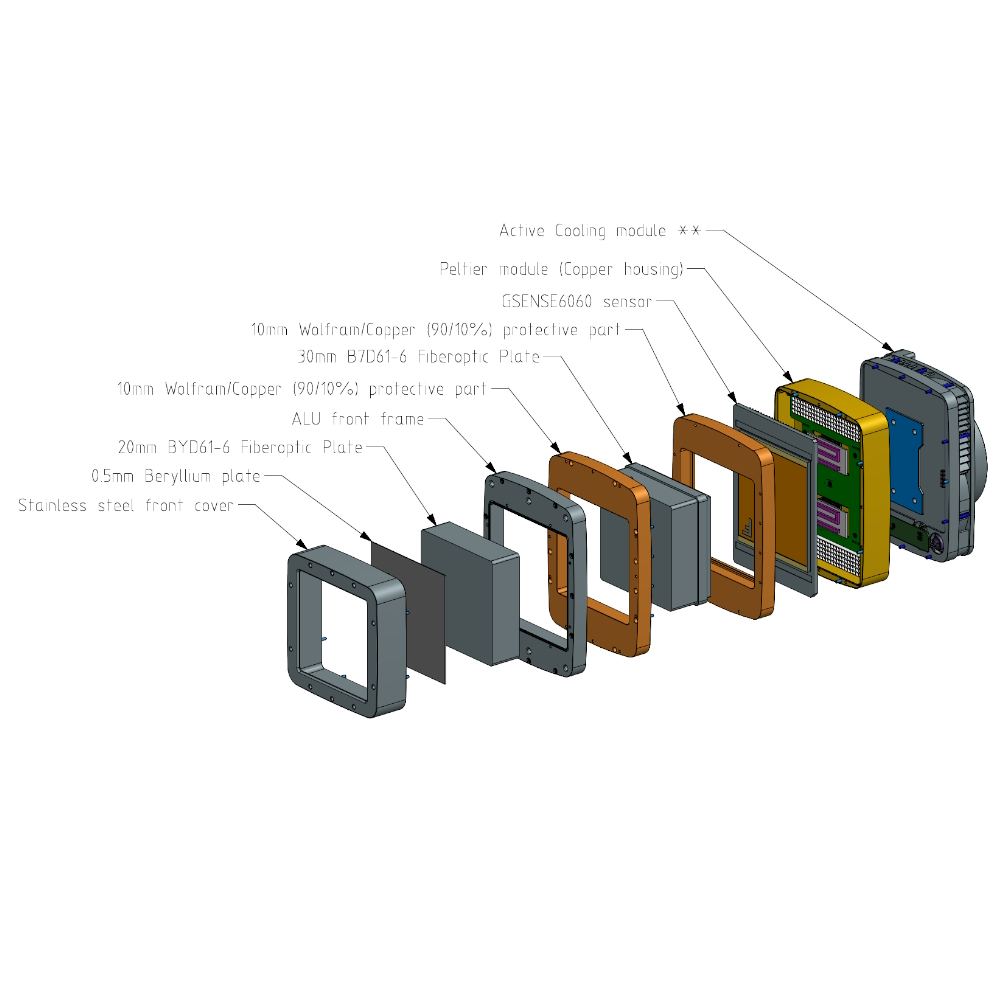

- Scintillator on top of gpixel gsense6060-fsi with optional FOP Taper
- Thermoelectrically cooled with Peltier elements
Each camera is Radiation hardened.
Support of Energy levels 7 to 100keV.
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout
ADAPTABLE
Various modes for best results in FWC, dynamic range, noise and speed.
RELIABLE
Radiation energy range from 5 keV up to 150 keV (model dependent) with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.
CUSTOMIZABLE
Modify the Scintillator material, Phosphor thickness or other parameters according to your needs for x-ray energy, resolution, field of view, pixel size and more
Specification
|
Sensor properties
|
||
| Resolution | 38 MPix | |
| Sensor resolution | 6200 x 6144 | |
| Sensor vendor | Gpixel | |
| Sensor model | GSENSE6060 FSI | |
| Sensor type | X-RAY | |
| Sensor technology | sCMOS | |
| Sensor size | Medium format | |
| Sensor active area | 62 x 61 mm | |
| Sensor diagonal | 87.3 mm | |
| Pixel size | 10 µm | |
| Shutter type | Rolling shutter | |
|
Camera properties
|
||
| Frame rate | 48 FPS | |
| Bits | 12, 14 bits | |
| On-chip downsampling | 4x4 | |
| On-chip decimation | 1x4 | |
| Interface | PCIe Gen 3 | |
| Data interface speed | 32 Gbit/s | |
| GPIO count | Inputs: 11, Outputs: 11 | |
| Exposure minimum | 24 µs | |
| Exposure maximum | 30 s | |
| Sensor cooling | Yes | |
| Special features | HDR, Dual ADC | |
|
EMVA 1288 results
|
||
| Dynamic range | 90 dB | |
| Full well Capacity | 110000 e- | |
| Readout noise | 4 e- | |
| Gain analog max | 40 dB | |
|
Mechanical properties
|
||
| Lens mount | No mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 83.2 x 109.6 x 103.3 mm | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
Life science
Micro and Nano CT (Computed tomography), Radiography, Medical and Biology research, Light sheet microscopy (LSFM), Small animal and Cell structure
Material analysis
Scanning and Transmission electron microscopy, Small molecule and protein Crystallography, Spectroscopy, Archeology, Minerology, Neutron imaging
Industrial
Solar panel and cell inspection, industrial PCB analysis (BGA - Ball grid array), Energy research, Phase contrast imaging, Structural engineering, Fluid dynamics
Diffraction and scattering
Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and Fluorescence (XRD, XRF), Powder diffraction, Coherent diffraction
