xiB, xiX, xiRay, xiJ, Legacy, xiX-XL, xiX-Xtreme, MX377 accessory
HA-2P-X4G3-MTP-X8G3

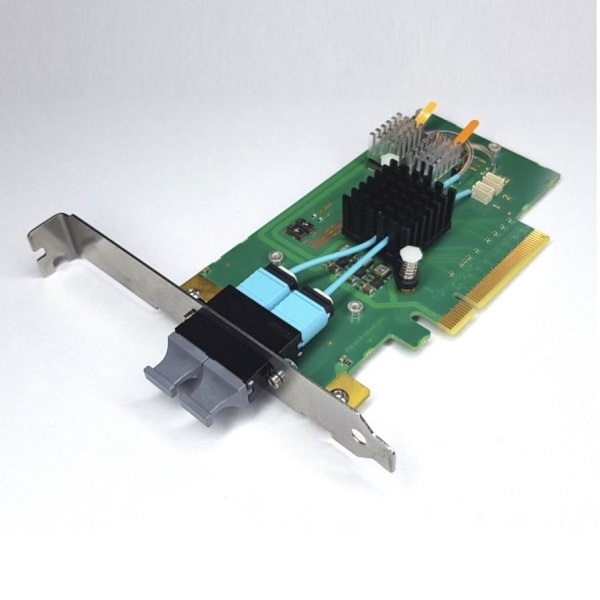

Host adapter with 2 ports for PCIe Gen.3 x4 MTP cables
Product statusEngineering-Sample
- 2 slots for PCIe Gen3 x4 MTP cables
- Can connect xiB, xiB-64 and xiX camera models
- Supports Gen 1, Gen 2 and Gen 3 (8.0 GT/s) data rates
- Use with PCIe® Active Fiber Optical Cable or copper cables
- Enables Spread-spectrum Clocking support
- Input per camera - 32 Gbps
- Low profile PCIe® I/O adaptor card
- Needs PCIe Gen.3 x8 PC slot
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Links & downloads
Related cameras
The particular accessory can be used with the following camera models or products.
