xiX, xiSpec, xiRay, xiX-XL, xiX-Xtreme accessory
XEC-NX-3P-X2G3

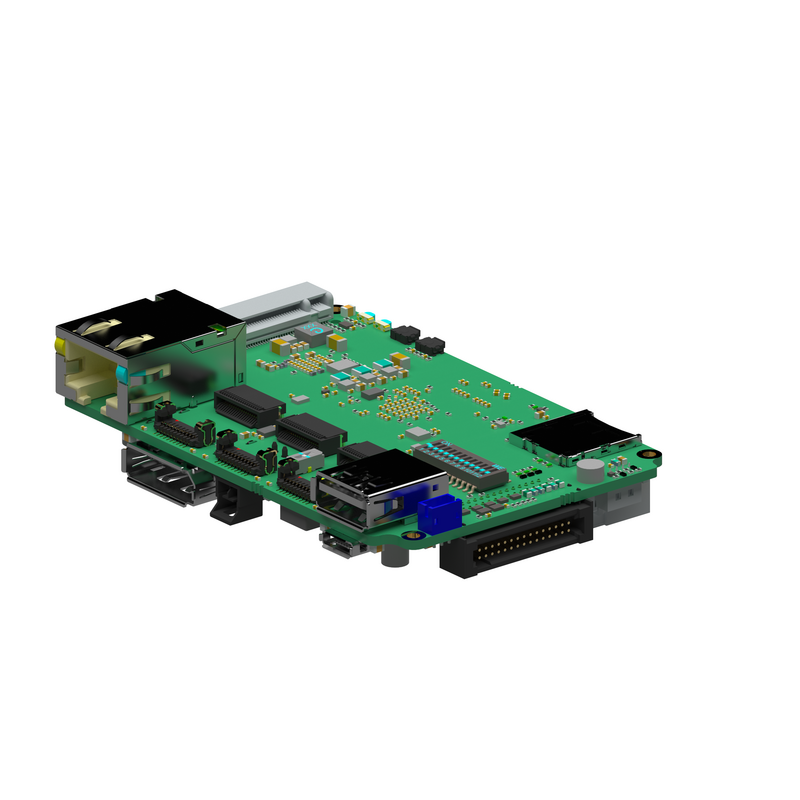

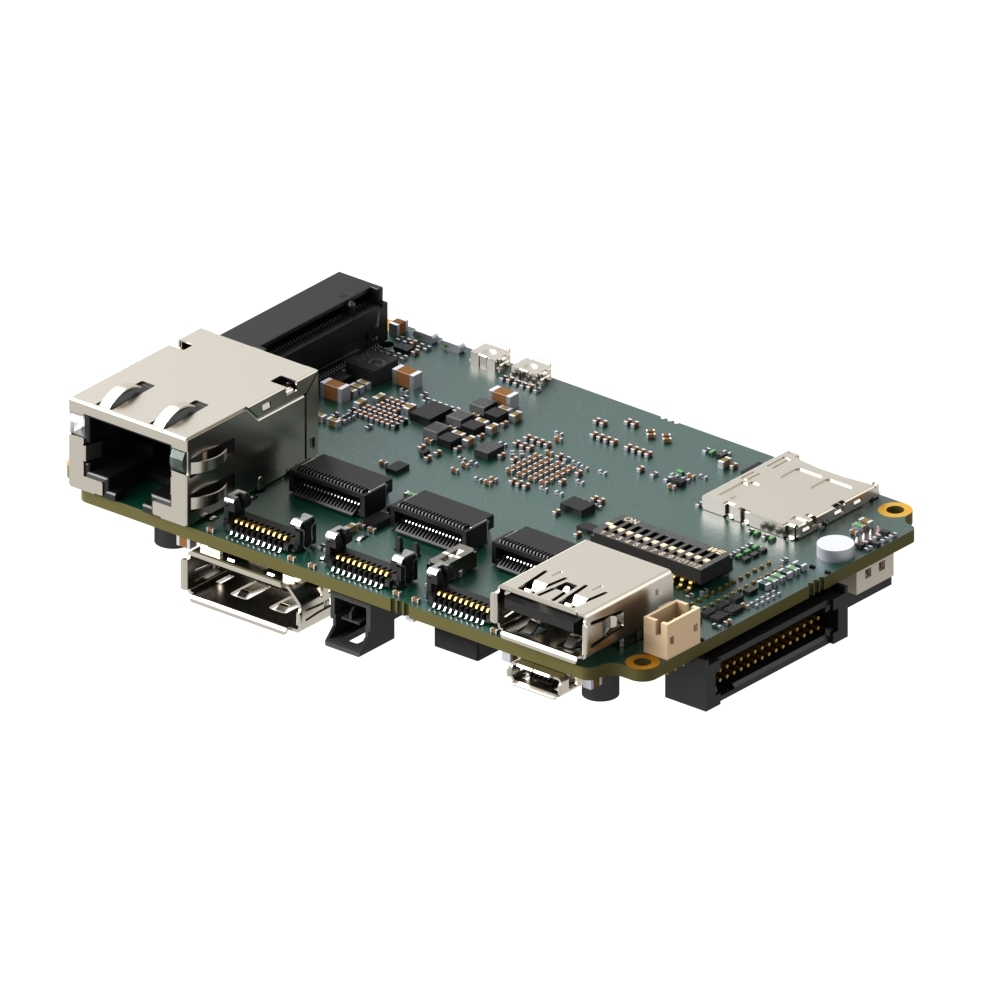

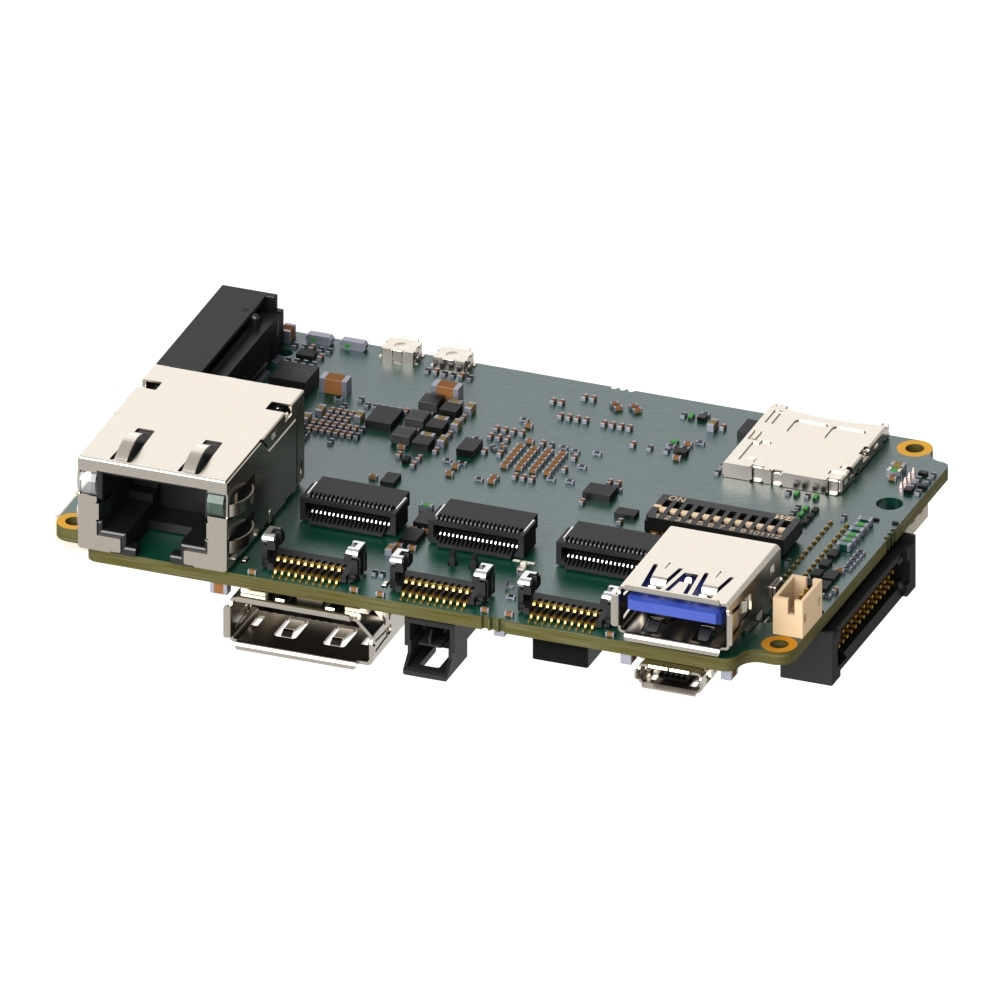

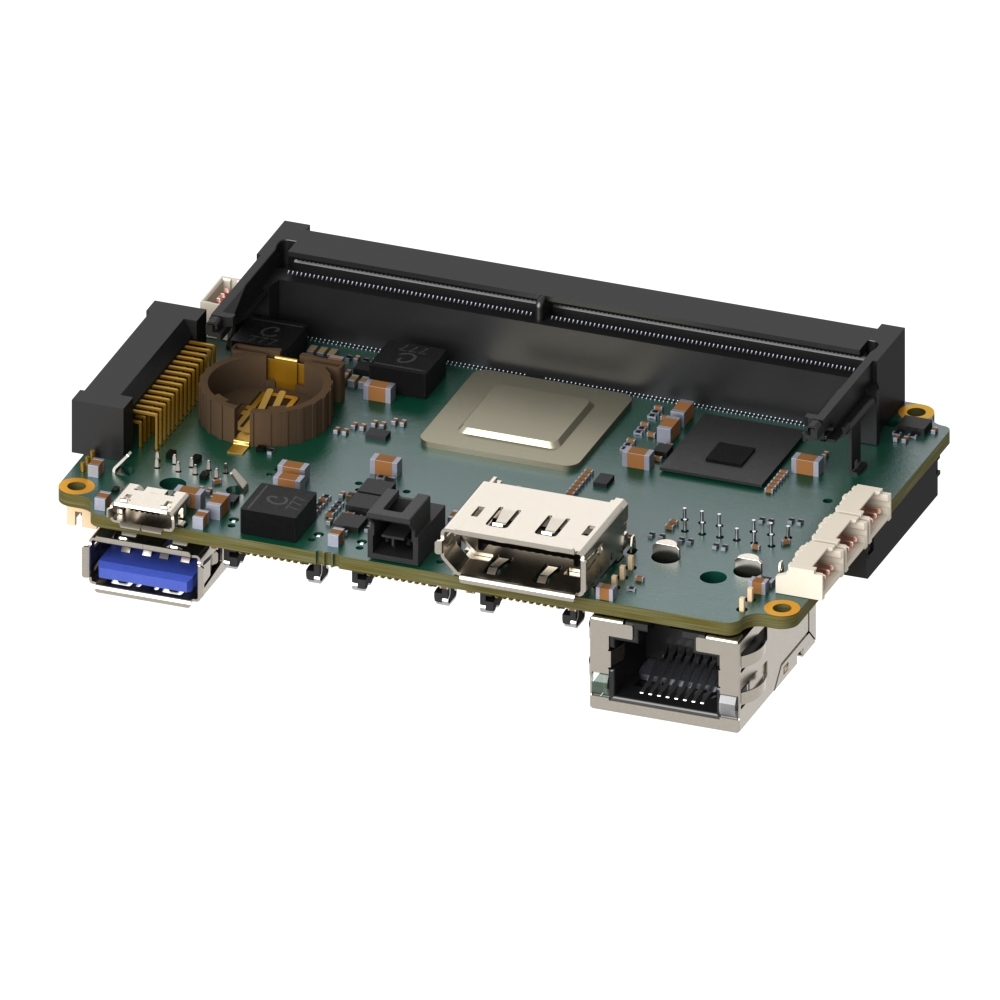

NVIDIA Jetson NX carrier board
Product statusActive
- NVIDIA Jetson NX carrier board
- Ideal for the operation and synchronization of 3 cameras and more
- 3x PCIe Firefly and 1x M.2 connector configurable in two options:
- 3x ports for xiX-X2G2 camera and 1x for M.2 (NMVe) streaming 10 Gbits
- 1x port for xiX-X4G3 camera and 1x for M.2 (NVMe) streaming 32 Gbits
- Peripherals: Ethernet, USB3 Type A, M.2, microSD, GPIO, Display port
- The Host system should be running Ubuntu 18.04 or 20.04
- Optional version combined with Orin NX module and fan
- For use with cameras from: xiX, xiX-XL and xiX-Xtreme family
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Links & downloads
Related cameras
The particular accessory can be used with the following camera models or products.
