xiB, xiX, xiSpec, xiJ, Legacy accessory
PEX4-G3-COP

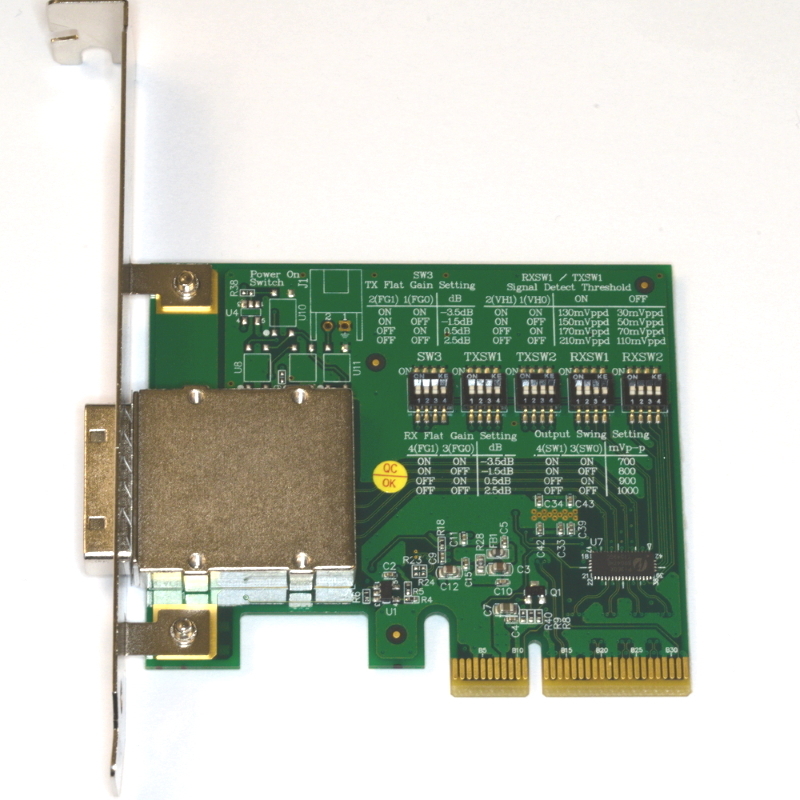

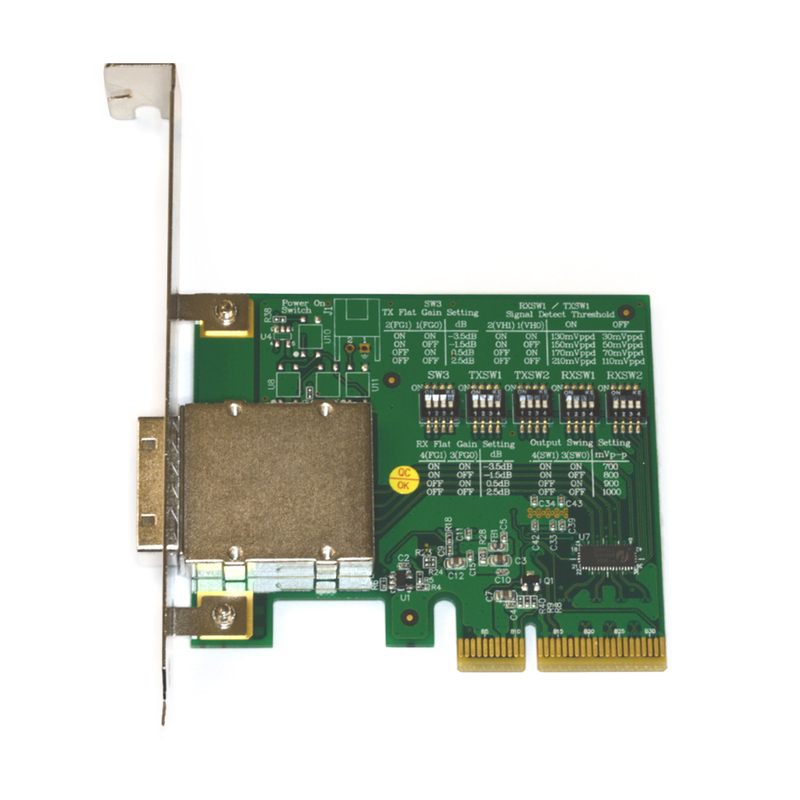

Host adapter for copper PCIe Gen.3 x4 cables - 1 port
Product statusActive
- Single slot for PCIe Gen3 x4 Cable Connector version
- Can be used with xiB camera series (or xiX)
- Compliant with PCIe 1.0/2.0/3.0 mainboards
- I2C Configuration Controls (3.3V tolerant)
- Active (with Gen 3 Redriver) PCIe x4 Cable Adapter
- 4-Lane External PCIe Cable Connector (0.8mm pitch 38pin iPassTM)
- Up to 32 Gbps
- Pin Strap configuration (Jumper Setting)
- Adjustable: Receiver Equalization, Transmitter and Output Levels
- Weight 174 grams
- Home
- Accessories
- Host Adapters
- Host adapter for copper PCIe Gen.3 x4 cables - 1 port
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Related cameras
The particular accessory can be used with the following camera models or products.
