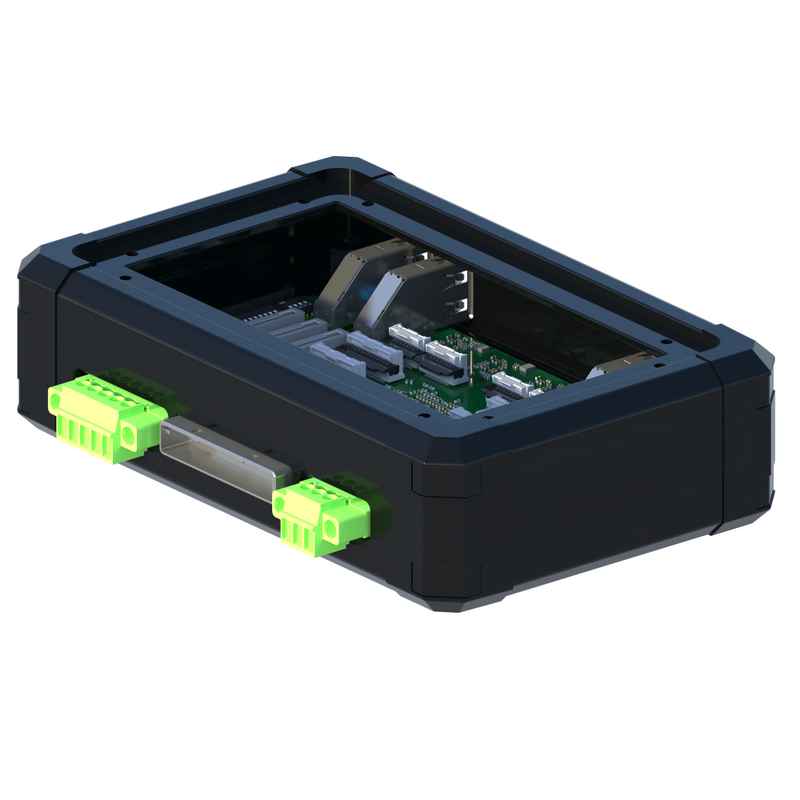

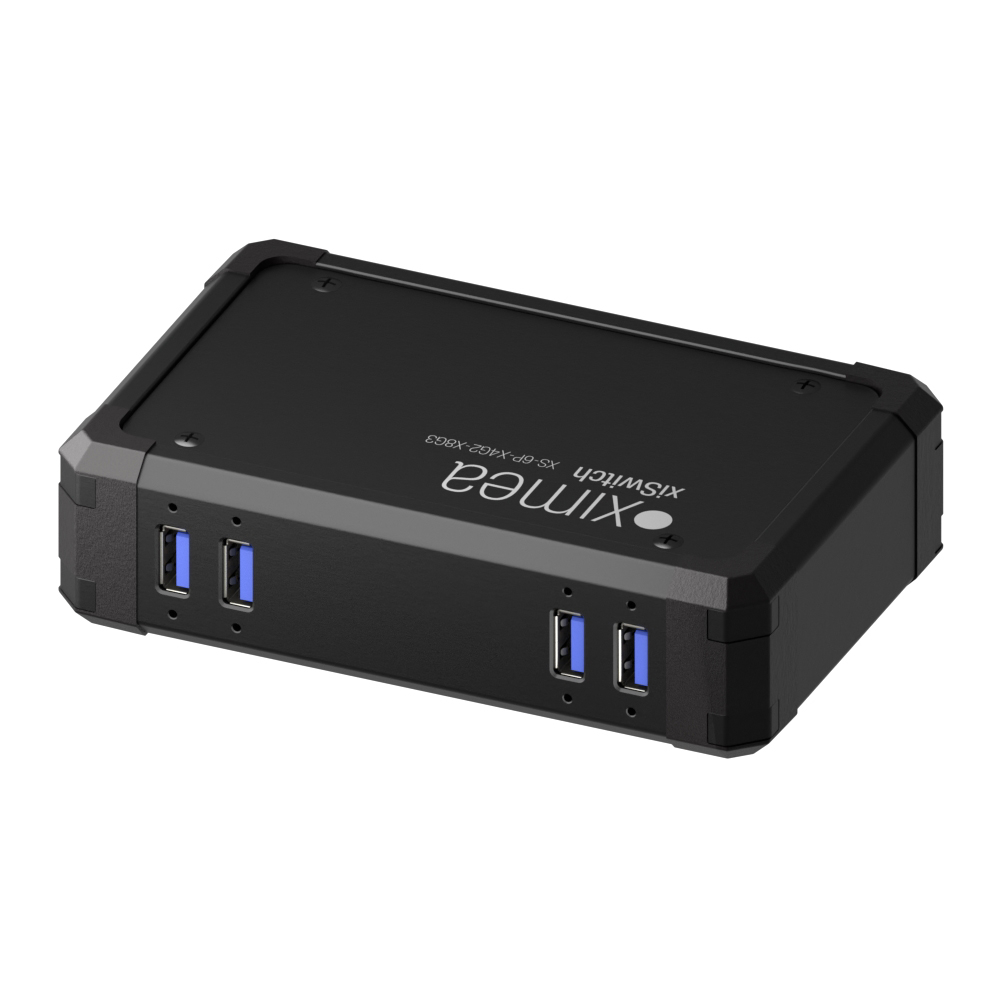

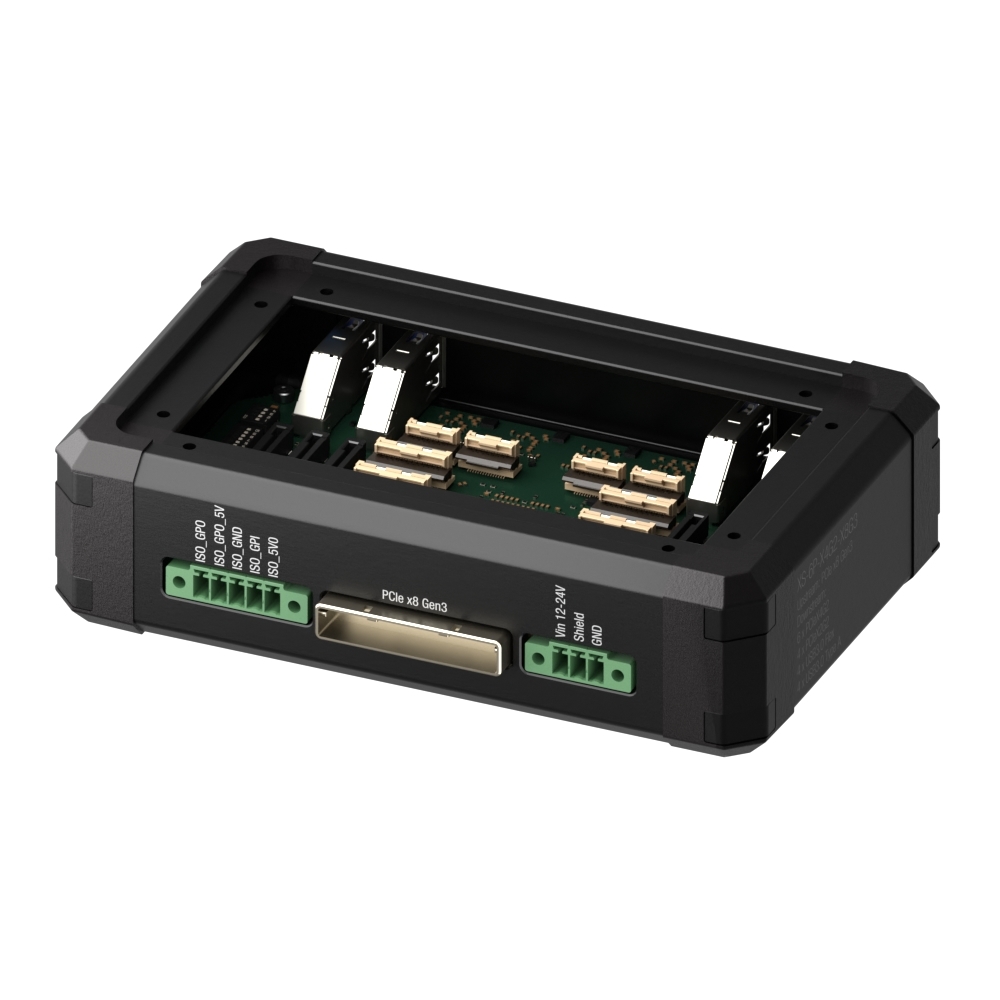

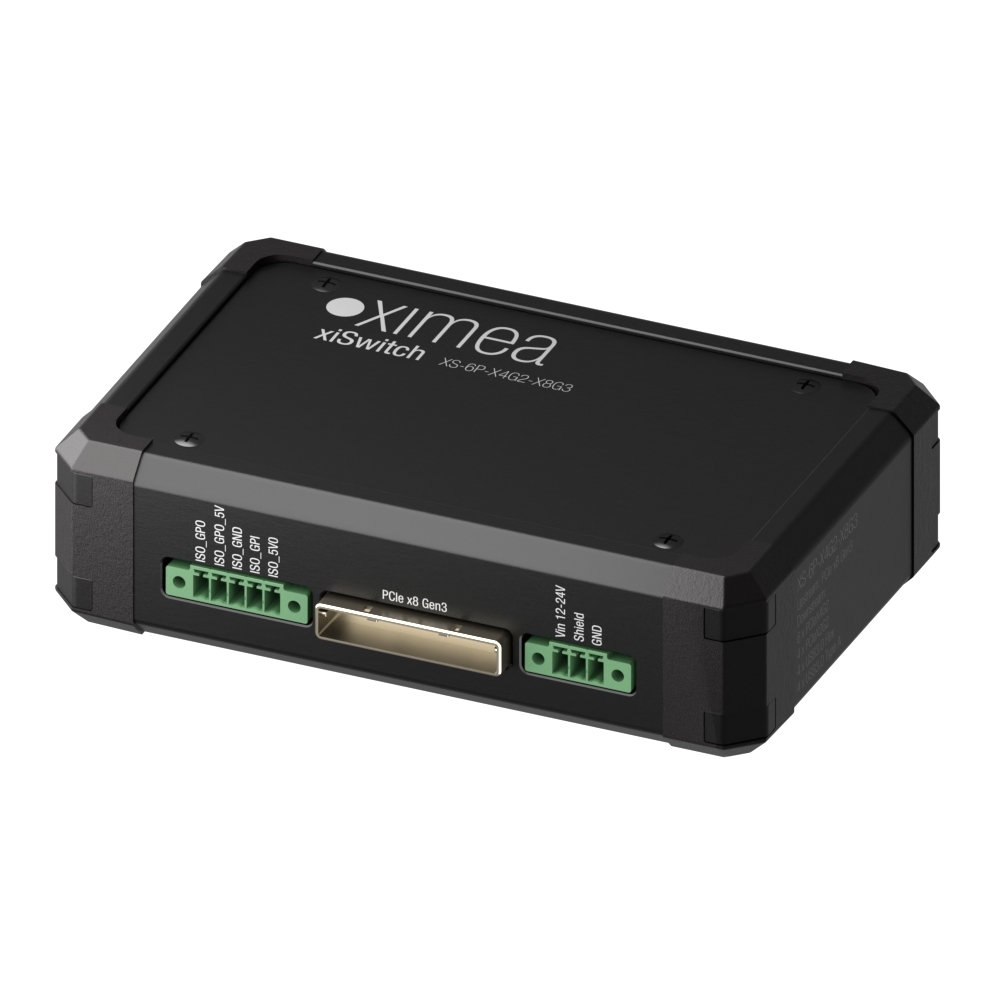

xiX, xiSpec accessory
XS-6P-X4G2-X8G3
Multi camera platform 6 main ports
Product statusActive

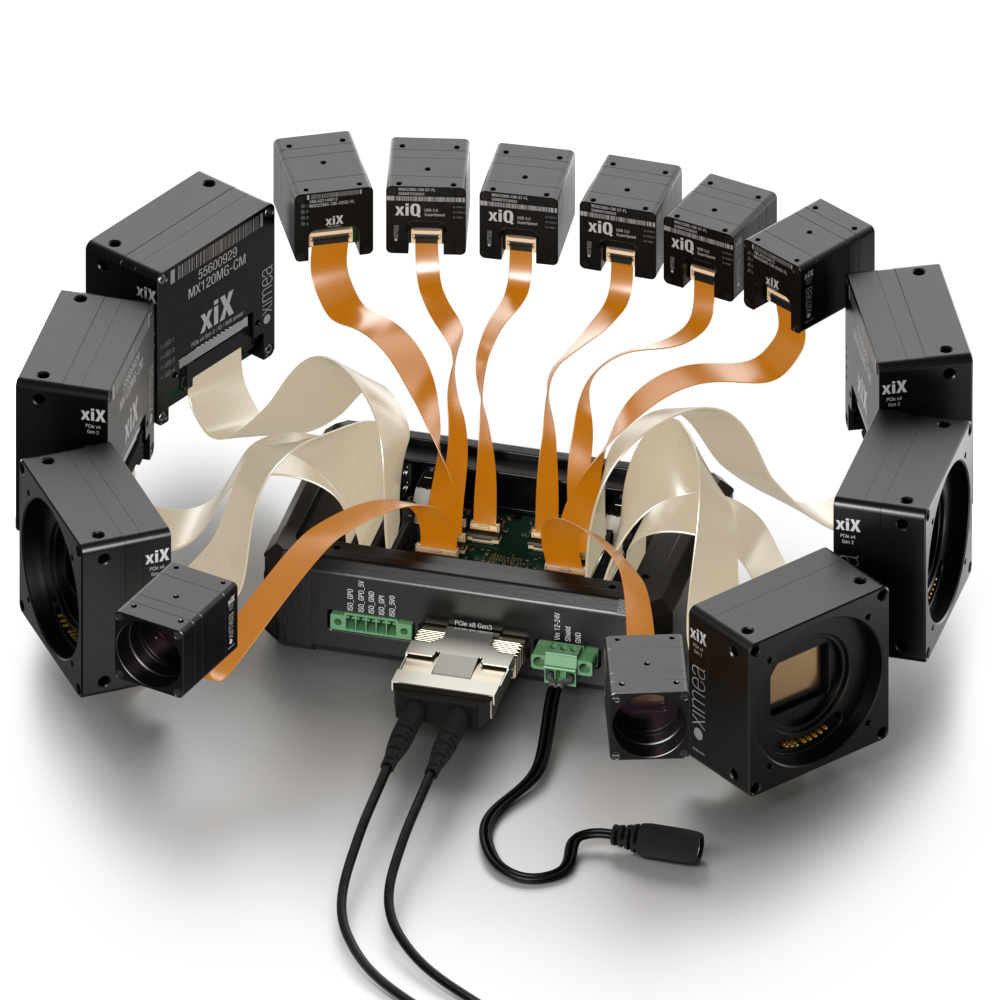

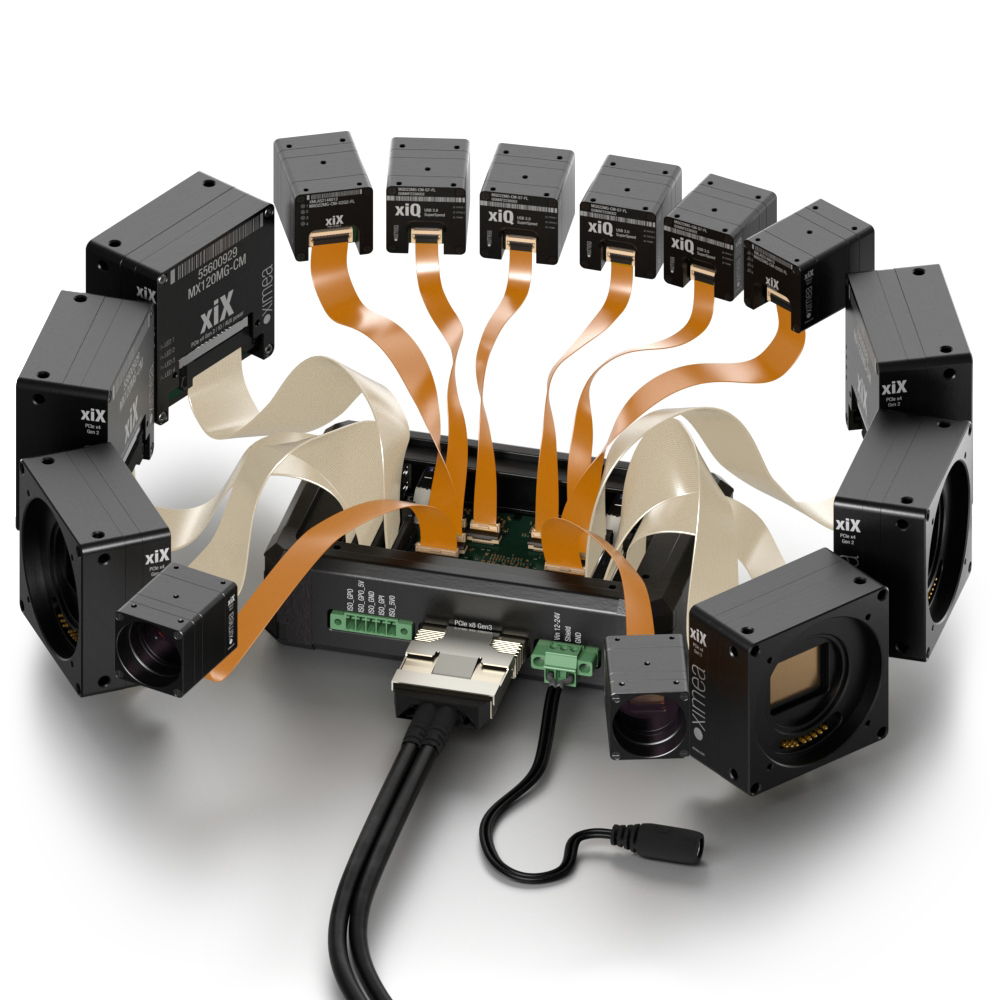

- Ideal for synchronization of various cameras from xiX family
- 6x X4G2 Flex Connectors - 20 Gbits bandwidth each
- 4x X2G2 Flex Connectors - 10 Gbits bandwidth each
- 4x USB3 Flex Connectors - 5 Gbits bandwidth each
- 4x USB3 Type-A Connectors - 5 Gbits bandwidth each
- Host port iPass X8G3 - output bandwidth of 64 Gbits
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Links & downloads
Related cameras
The particular accessory can be used with the following camera models or products.
