xiD, xiQ, xiC, xiSpec accessory
U3PE-FL1100-X4-V2

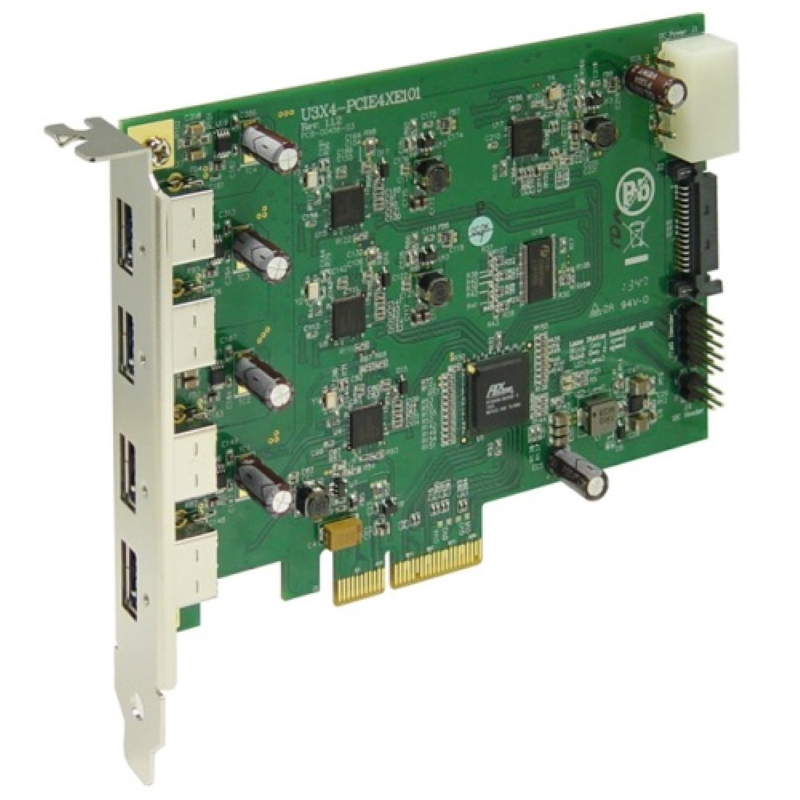

Host adapter for USB Type-A cables - 4 USB3 ports - version 2
Product statusActive
- Fresco FL1100 x4 independent USB 3.0 Host Controllers
- Host Bus: PCIe x4 Gen 2 (20.0 Gb/s) = Four (4) 5 Gb/s USB 3.0 slots - Compliant with PCI Express Base 2.0
- Full line rate on all Ports
- Supplies 900mA of power per USB port
- Four USB 3.0 Cable Ports (A-type Receptacle)
- Provides USB 3.0 cable port lock mechanism
- Compliant with USB 3.0 Specification and backward compatible with USB 2.0
- 4-pin DC+12V bus power connector and SATA 15pin Power Connector
- Link power management states: L0, L0s, L1, L2/L3 Ready, and L3
- Supports PCI Express Card Electromechanical Specification Revision 2.0
- 4 downstream USB ports support SS/HS/FS/LS data rates
- WHQL-certified driver support for Windows 7, 8, Vista, and XP
- Linux xHCI support under Linux kernel version 2.6.31 and after
- Supports UASP (USB Attached SCSI Protocol)
- Suitable for cameras from: xiQ, xiC, xiSpec and xiD family
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
