xiSpec

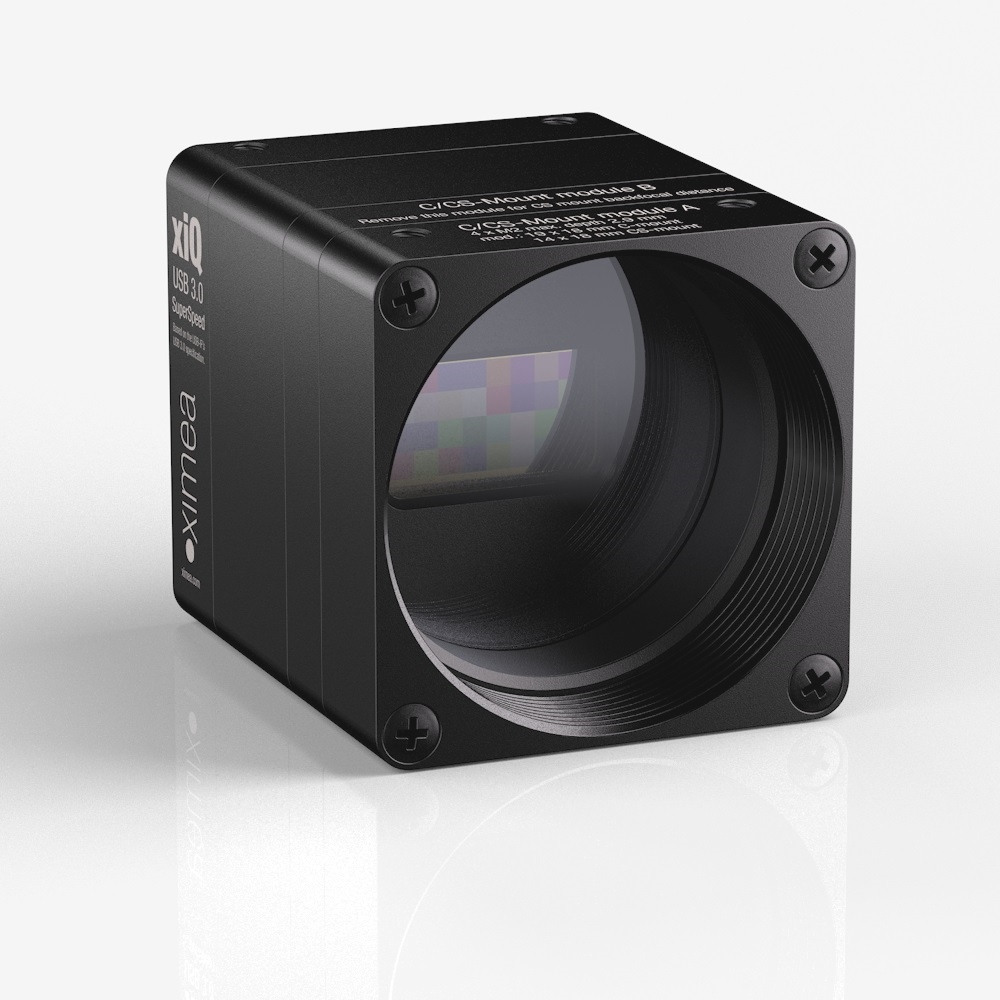

MQ022HG-IM-SM5X5-NIR2
Hyperspectral camera with 2.2 Mpix, 24 spectral bands, 665 - 960 nm range and USB3 interface
Product statusActive
Sensor vendorimec
Sensor modelCMV2K-SSM5x5-NIR
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate170 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
SCIENTIFIC

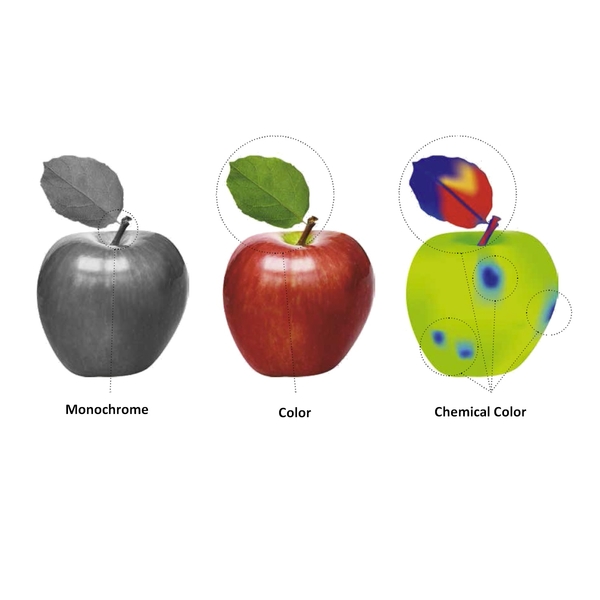

Datacubes of information about the chemical composition of the object from snapshot mosaic and line-scan models offering 15 up to 150 spectral bands through visible light to NIR
RELIABLE
Sturdy full metal jacket housing, no wobbly sheet cover parts. Designed for 24/7 operations for years. Low TCO and fast ROI.
SMALLEST
With their small form factor of 26 x 26 mm and single PCB design, these cameras can fit into places where other hyperspectral cameras would not
LIGHTWEIGHT
Payload-friendly SWAP for mobile devices like robotic arms, UAV or drones. The camera weighs only 32 g
Specification
|
Sensor properties
|
||
| Resolution | 2.2 MPix | |
| Sensor resolution | 2048 x 1088 | |
| Sensor vendor | imec | |
| Sensor model | CMV2K-SSM5x5-NIR | |
| Sensor type | HyperSpectral | |
| Sensor technology | CMOS | |
| Sensor size | 2/3" | |
| Sensor active area | 11 x 6 mm | |
| Sensor diagonal | 12.8 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 170 FPS | |
| Bits | 10 bits | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |

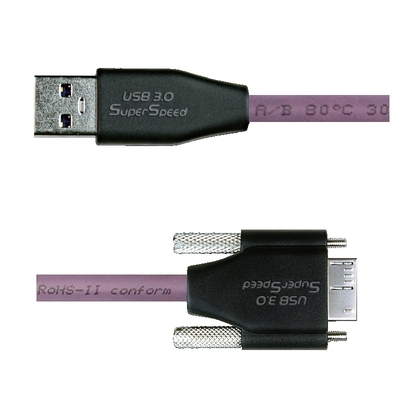

| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 30 µs | |
| Exposure maximum | 2 s | |
| Power consumption | 1.5 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
| Special features | HDR | |
|
EMVA 1288 results
|
||
| Dynamic range | 60 dB | |
| Saturation Capacity | 13500 e- | |
| Readout noise | 13 e- | |
| Signal to noise ratio | 41.3 dB | |
| Gain analog max | 6 dB | |
| Spectral bands | 24 channels | |
| Spectral Range | 665 - 960 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |

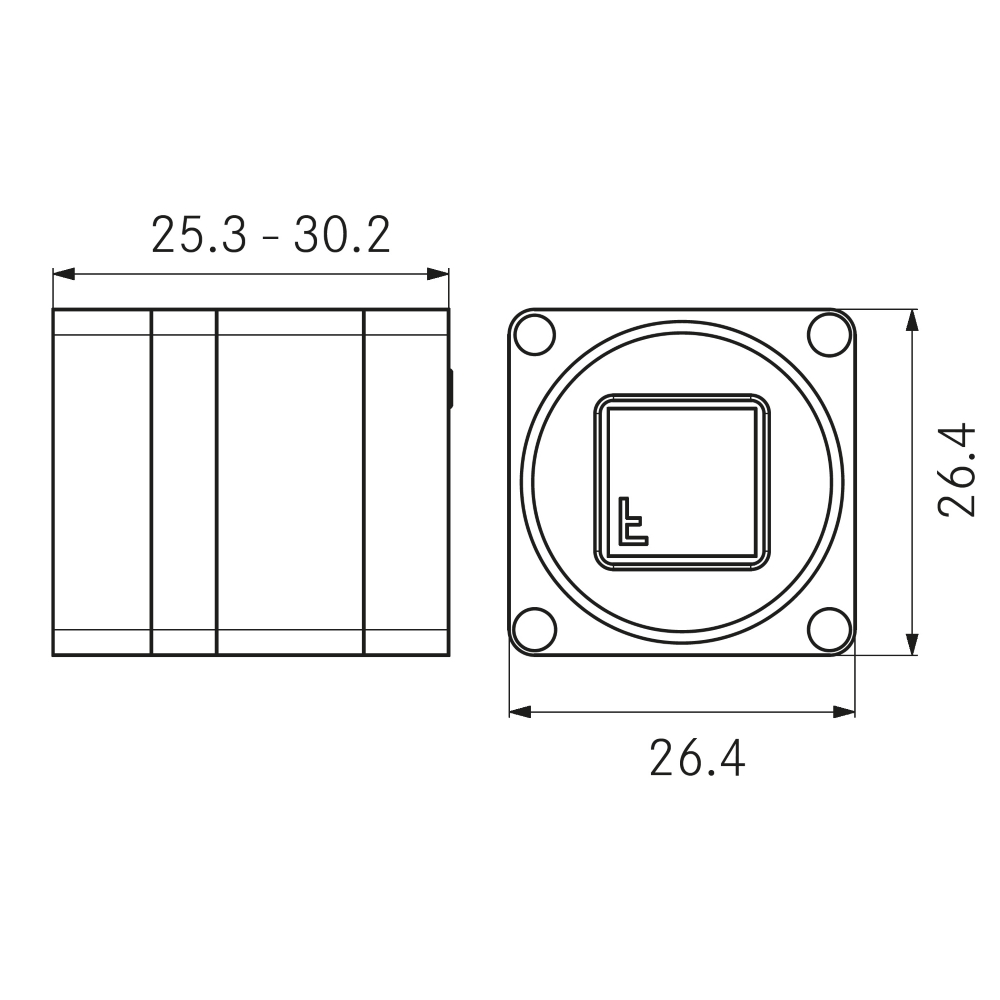

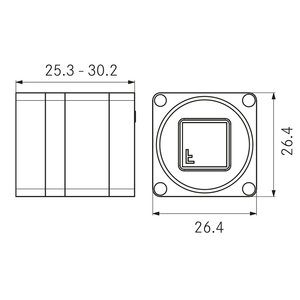

| Physical dimensions (WHD) | 26.4 x 26.4 x 30.2 mm | |
| Mass - weight | 31.8 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications

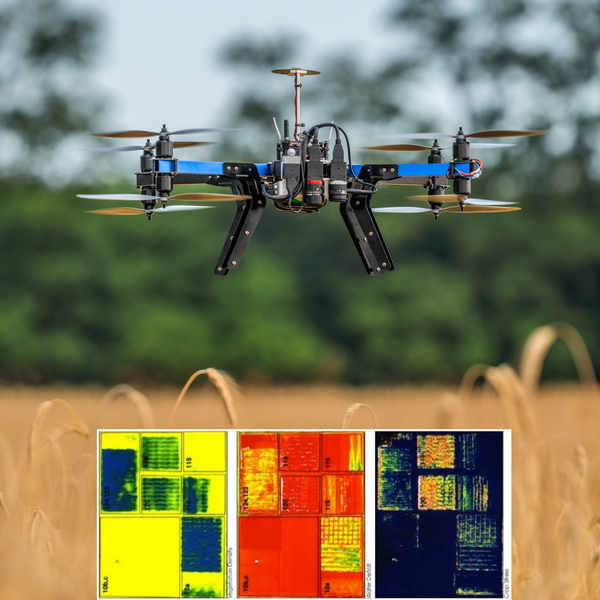

Remote sensing
Precision Agriculture / Farming, Terrestrial and Maritime earth observation, Archaeology, Environmental monitoring, Contamination detection, Security, Surveillance, UAV and drones
Scientific
Fluorescence, Photoluminescence,
Skin tones and tissue analysis, Cancer cells inspection, Space exploration, Astronomy, Spectroscopy, Forensics, Material and Life science microscopy
Medical
Ophthalmology, DNA sequencers and flow cytometers, Healthcare, Tumor detection, Cytogenetics, Medical imaging for endoscopy, Wound diagnostics, Biotechnology, Pathology
Optical sorting
Pharmaceutical, Waste recycling, Food safety and inspection (quality grading), Defect detection,
Art and Antiques Conservation,
Chemical analysis of material composition
Variants
More flavors, more options: Explore alternative versions of the selected model.
Accessories
Use this section to find the right components and equipment for your camera model. All our standard accessories are tested and approved for quality, fit, and performance.

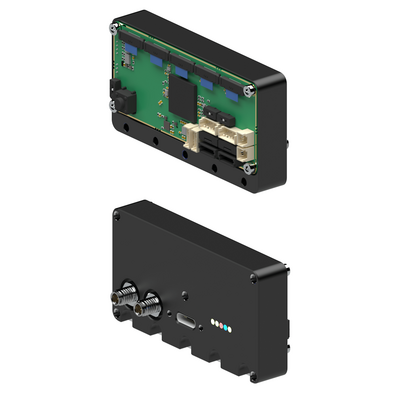

XS-5P-U3-UC-TC
