xiQ
MQ042RG-CM-S7

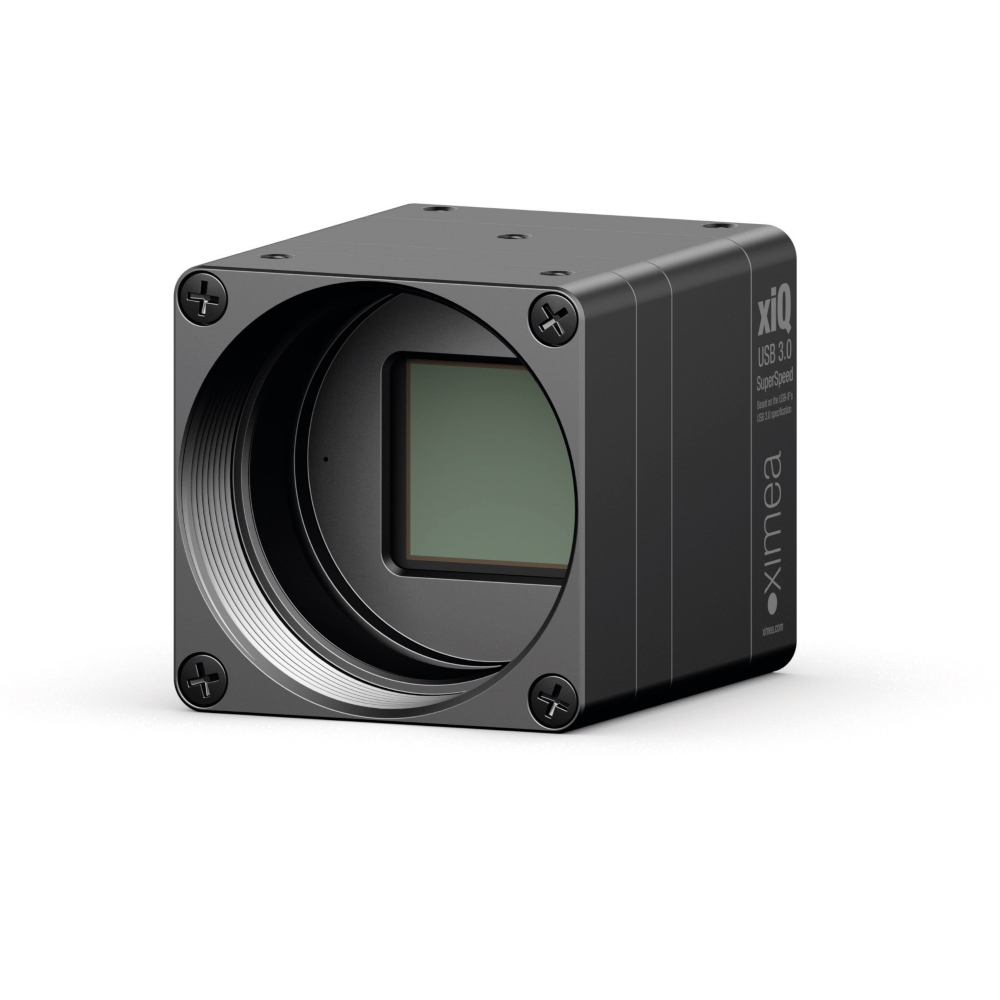

Industrial camera with 4.1 Mpix NIR CMOSIS CMV4000 Global shutter sensor and USB3 interface

Product statusActive
Sensor vendorCMOSIS
Sensor modelCMV4000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate90 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Smallest
SMALL
Only 26 x 26 mm small, single PC board electronics. Fits into places where other cameras can’t
Highlight_Fast
FAST
SuperSpeed USB3. High speed, high frame rate: around 1000 FPS at VGA and 90 FPS at 4 Mpix resolutions
Highlight_Omnipresent
WIDE CHOICE
Global shutter CMOS sensors, up to 4.2 Mpix resolution, b/w, color and NIR extended. Available as Board level and with different connector types
Highlight_Reliable
RELIABLE
Designed for 24/7, 365 days operations throughout multiple years. Low TCO and fast ROI, easy integration into OEM solutions
Specification
Sensor properties
Resolution 4.1 MPix
Sensor resolution 2048 x 2048
Sensor vendor CMOSIS
Sensor model CMV4000
Sensor type NIR
Sensor technology CMOS
Sensor size 1"
Sensor active area 11 x 11 mm
Sensor diagonal 15.9 mm
Pixel size 5.5 µm
Shutter type Global shutter
Camera properties
Frame rate 90 FPS
Bits 10 bits
Interface USB3
Data interface speed 5 Gbit/s
Data connector type USB3 Micro-B
GPIO count Inputs: 1, Outputs: 1
Exposure minimum 30 µs
Exposure maximum 2 s
Power consumption 1.55 Watt
Heat dissipation Natural convection
Sensor cooling No
Special features NIR, HDR
EMVA 1288 results
Dynamic range 60 dB
Saturation Capacity 13500 e-
Readout noise 13 e-
Signal to noise ratio 41 dB
Peak QE 66%
Gain analog max 6 dB
Spectral Range 400 - 1000 nm
Mechanical properties
Lens mount C-mount
Enclosure type Standard housing
Physical dimensions (WHD) 26.4 x 26.4 x 36.8 mm
Mass - weight 35 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiQ family

Technology


Sensor technology CMOS
Acquisition modes Global shutter
Digital Output 8, 10, 12 bit RAW pixel data digitization
USB3 Interface USB 3.1 Gen1 default Micro-B with screw lock threads or optional flat ribbon connector for embedded vision systems
General purpose I/O 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Power requirements Bus powered via USB3 interface
Lens mount Standard C mount. Available options are CS mount, S-mount (M12) adapter and board level

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure; HDR (High Dynamic range)
Flat field corrections Host assisted pixel level shading and lens corrections
Buffer memory 256kB of memory for stable USB transfer located in CYUSB3035 SuperSpeed USB Controller, additional small buffers inside FPGA
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed, USB3 Vision Compliant

USB 3.1 Gen1 xiQ camera utilization Fields and Applications

Ultra-fast-scanning
Ultra-fast scanning
3D and FACS scanning. Face recognition, Eye Tracking, Body scanner, People counting. Wide area motion imaging and surveillance.
VR-and-AR
VR and AR
Virtual and augmented reality. High definition Motion capture, 360 Panorama, HMC - head mounted camera. Cinematography and Entertainment.
Medical-and-Scientific
Medical and Scientific
Medical imaging, Ophthalmology, Histology and Retinal imaging, Material and Life science microscopy (IR-DIC), Biometrics and Cell biology.
Aerial-mapping
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or autonomous vehicles.
Broadcasting
Broadcasting
Instant replays and rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis, football, hockey, basketball and more.
Quality-inspection
Quality inspection
Flat panel display (FPD), Photovoltaics, Photolithography, Semiconductor wafer scanning, Metrology, Electronics measurement and assemblies.
Portable
Portable
Miniature and accurate robotic arms. Industrial and Factory Automation, Machine Vision, Precision Moldings, Robotic Welding.
Lola
LoLa
Ideal for Low Latency audio and visual streaming systems used in educational or presentation purposes around the globe.

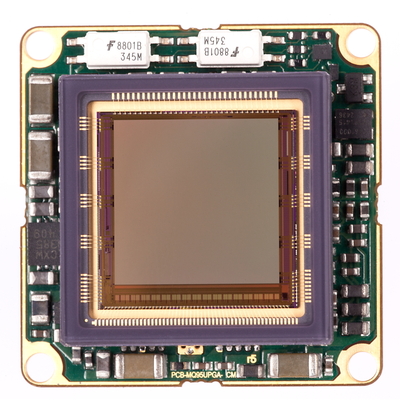

Variants
