xiC accessory
CBL-702-8P-SYNC-2M0

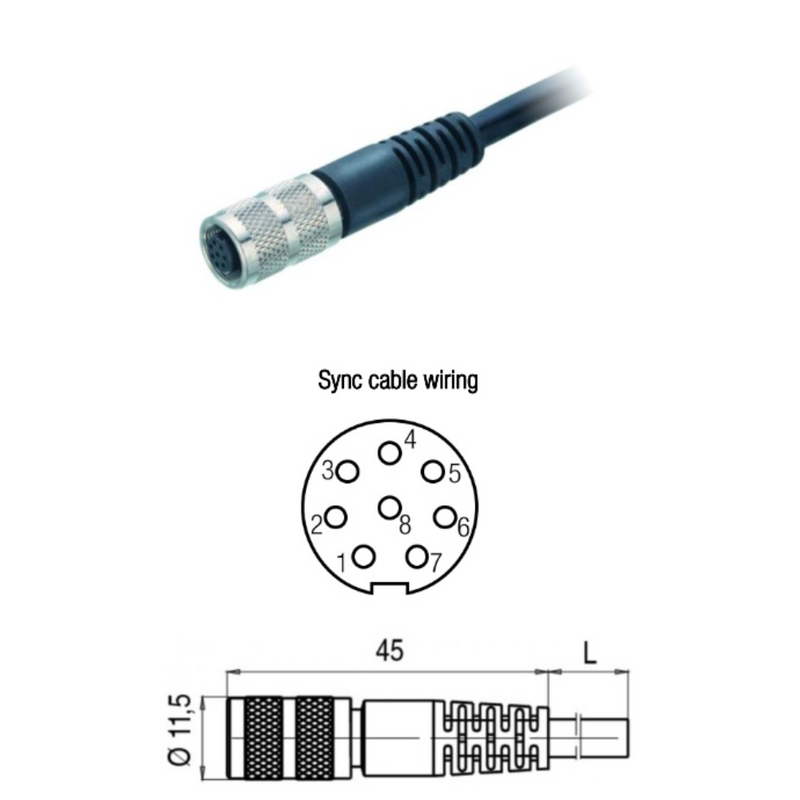

2m Sync trigger GPIO cable for xiC cameras
Product statusActive
- GPIO trigger/synchronization cable
- Female straight connector
- M9 IP67 Shielded and moulded
- 8 contact poles
- Connector locking system - screw
- Mechanical operation > 500 mating cycles
- Bending radius fixed / moving - ≥ 15 x ⊘ / ≥ 75 x ⊘
- Bending cycles >1 million
- Ends with pigtail - easily extendable in length
- Suitable for cameras from xiC family
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Related cameras
The particular accessory can be used with the following camera models or products.
