xiB-64, Legacy accessory
PEX8-G3-X1-DOL

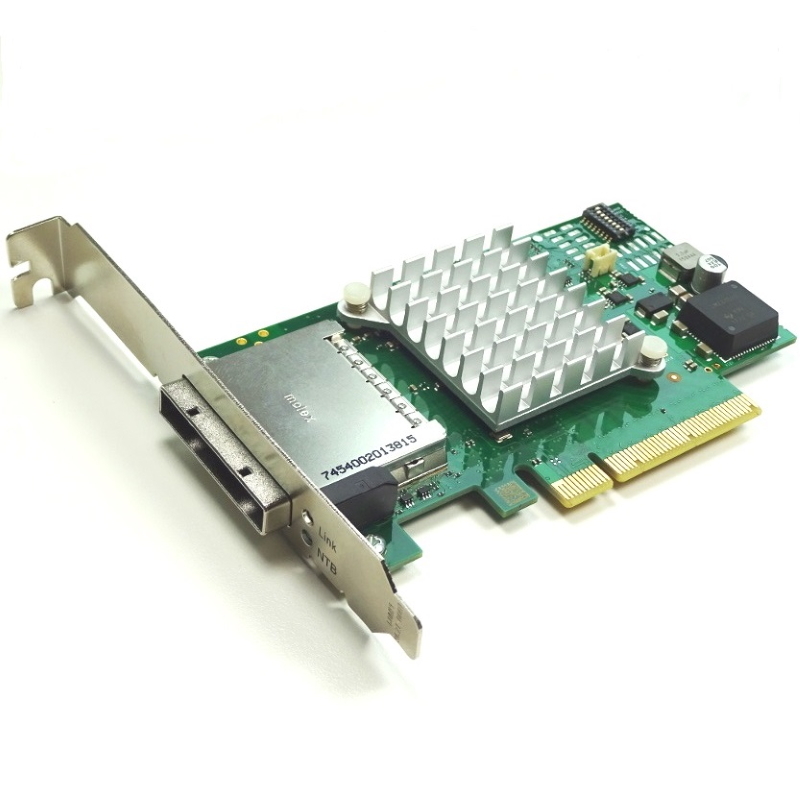

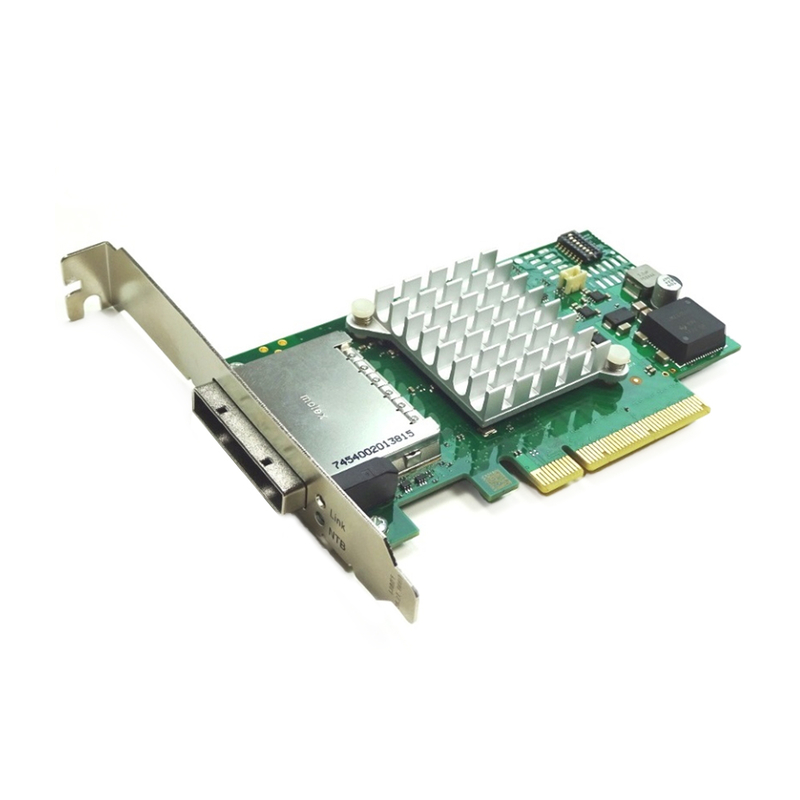

XIMEA - PCIe Gen3 x8 host adapter

Product statusActive
  • Single slot for PCIe Gen3 x8 Cable Connector version
  • Can be used with xiB-64 camera series (or xSWITCH)
  • Low profile -68.90 mm (2.7 inches) x 120mm (6.6 inches)
  • Support for: One x8 iPass® PCI Express copper cable or fiber optic cable
  • Cut through latency 138 nanoseconds
  • Link Speed 64 Gb/s
  • Topologies: Point to Point, Switched
  • Weight 106 grams
Get a quote
Overview

XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.

XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.

Related accessories
The particular accessory can be used in combination or instead the following accessories.
Related cameras
The particular accessory can be used with the following camera models or products.
