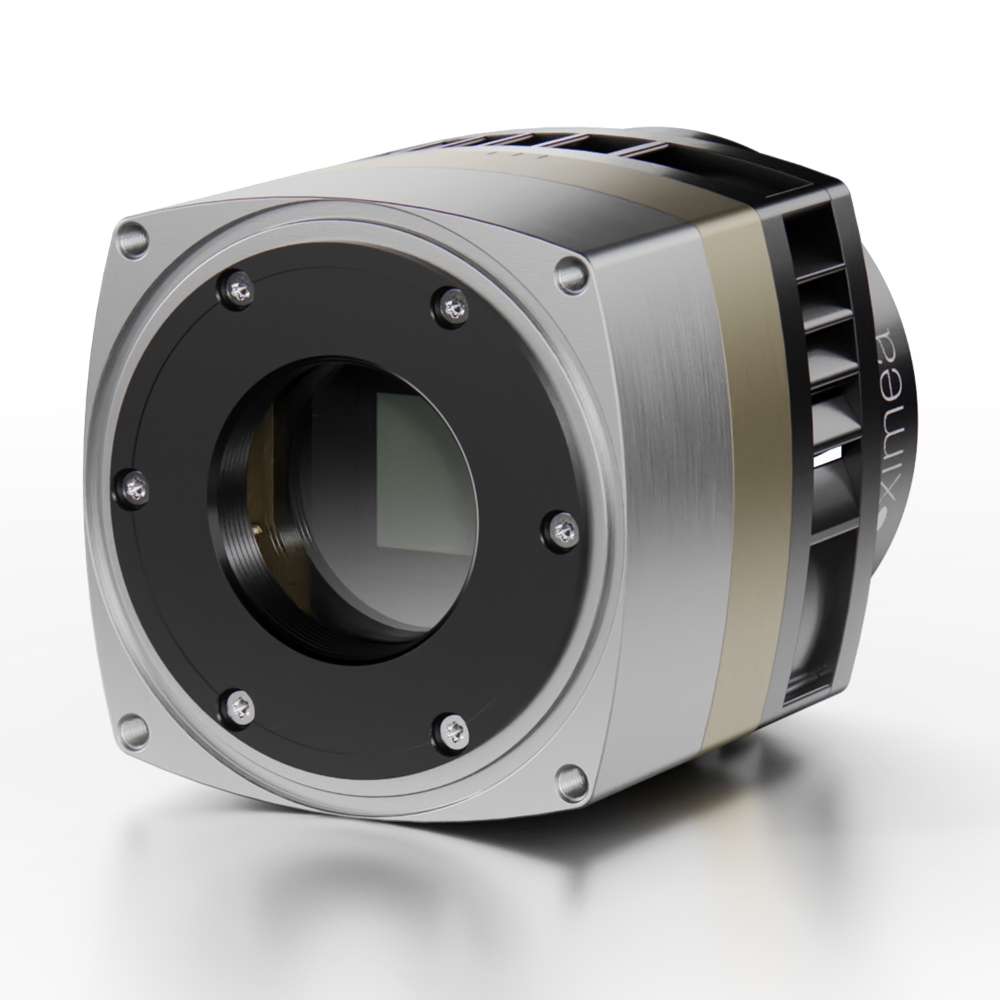

MJ150MR-GP
Scientific grade camera with 15.1 Mpix Gpixel GSENSE5130 sCMOS sensor and USB3 interface
Product statusEngineering-Sample
Sensor vendorGpixel
Sensor modelGSENSE5130
Sensor technologysCMOS
Shutter typeRolling shutter, Global reset release
Frame rate16 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
Built with the latest sCMOS sensors from the Gpixel's GSENSE family focused on sensitivity and speed - up to 37 Mpix resolution
FUNCTIONAL
Flexible binning configurations, ability to utilize RAW data or dual amplifier HDR imaging capabilities for the best results in Dynamic range or Full well capacity.
COOL

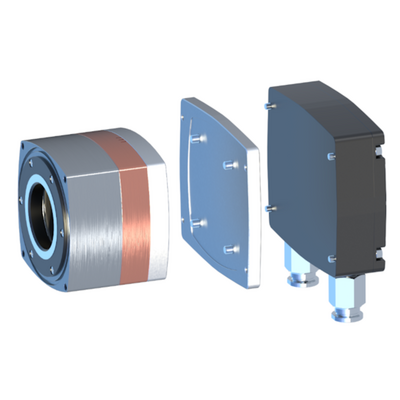

Thermoelectric Peltier sensor cooling down to -20 °C, enhanced with air fan or liquid cooler module option.
SCIENTIFIC
Equipped with sCMOS sensors for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging.
Specification
|
Sensor properties
|
||
| Resolution | 15.1 MPix | |
| Sensor resolution | 5120 x 2968 | |
| Sensor vendor | Gpixel | |
| Sensor model | GSENSE5130 | |
| Sensor type | Monochrome | |
| Sensor technology | sCMOS | |
| Sensor size | APS-C | |
| Sensor active area | 21 x 12 mm | |
| Sensor diagonal | 25.2 mm | |
| Pixel size | 4.25 µm | |
| Shutter type | Rolling shutter, Global reset release | |
|
Camera properties
|
||
| Frame rate | 16 FPS | |
| Bits | 12, 2 x 12 bits | |
| On-chip downsampling | 16x8 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |

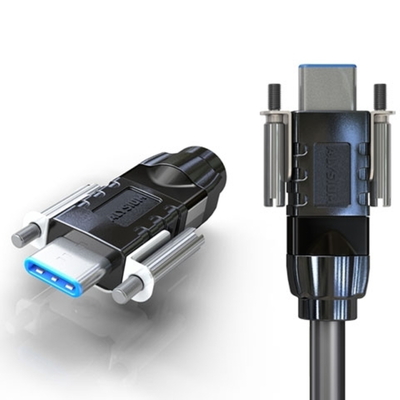

| Data connector type | USB3 Type-C | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 20 µs | |
| Exposure maximum | 2147.5 s | |
| Power consumption | 3.5 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | Yes, Yes | |
| Special features | HDR, Dual ADC | |
|
EMVA 1288 results
|
||
| Dynamic range | 77 dB | |
| Saturation Capacity | 16500 e- | |
| Readout noise | 1.6 e- | |
| Signal to noise ratio | 42 dB | |
| Peak QE | 72% | |
| Gain analog max | 25 dB | |

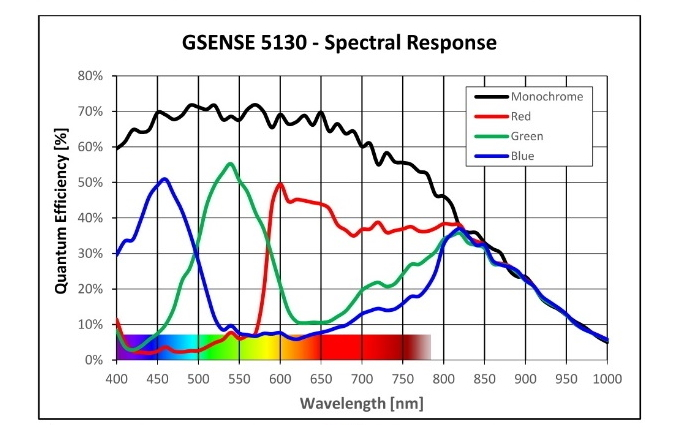

| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |

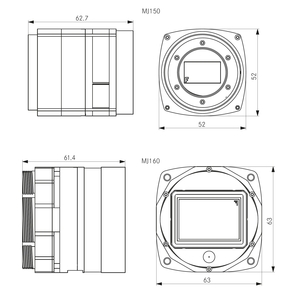

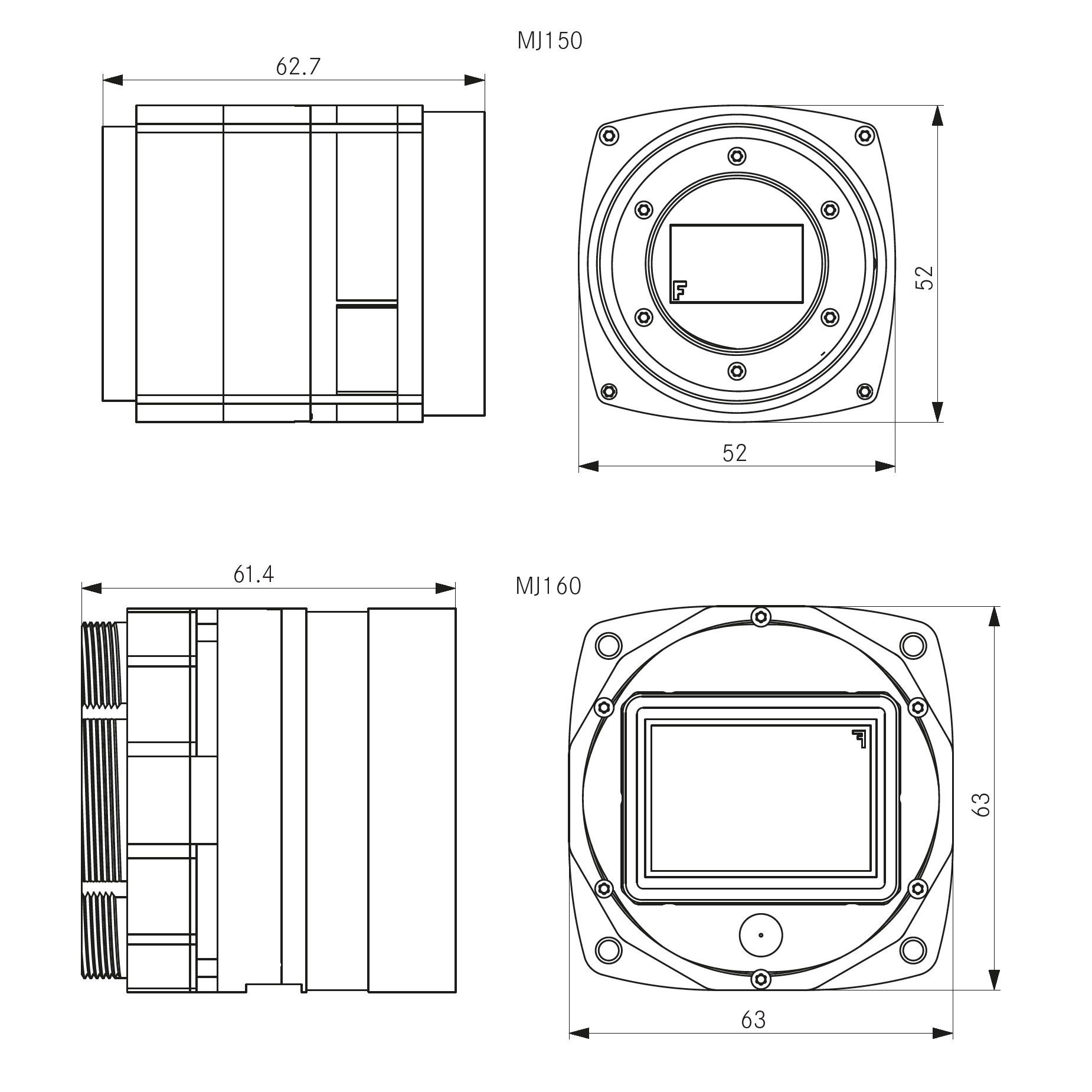

| Physical dimensions (WHD) | 52 x 52 x 62 mm | |
| Mass - weight | 170 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
Fluorescence
Förster resonance energy transfer (FRET), Fluorescence recovery after photobleaching (FRAP), Fluorescence in situ hybridization (FISH), Total internal reflection Fluorescence (TIRF), High Speed Multicolor and Light Sheet
Microscopy
Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), Widefield Fluorescence Microscopy
Biomedical
Cell Biology, Biochip reading, Protein/Lipid Trafficking, Membrane Dynamics, gene expression analysis, Biophysics, Biometrics, Genomics, Ion signaling and Transport Physiology, Corona detection
Life science
Endoscopy, Phosphorescence, Digital pathology, Ophthalmology, Gated stimulated emission depletion (GSTED), Electrophysiology, Optical Coherence tomography (OCT), Calcium, Ratiometric, Voltage Sensitive Dyes
Space exploration
Bose-Einstein Condensation, BEC dynamics, Nanoparticle, Astronomy, Solar polarimetry, Pulsar imaging, Space debris and NEO tracking, Fluorescence correlation spectroscopy (FCS), Astrophysics
Material science
Photoluminescence Spectroscopy, Mineralogy, Photovoltaic inspection,
Coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, Quantum Dots and Optics, Intrinsic, Spinning disk confocal imaging
Variants

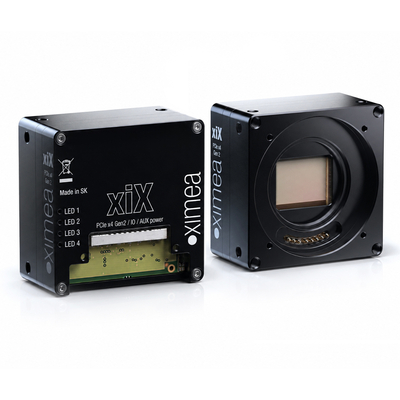

More flavors, more options: Explore alternative versions of the selected model.
Accessories
Use this section to find the right components and equipment for your camera model. All our standard accessories are tested and approved for quality, fit, and performance.

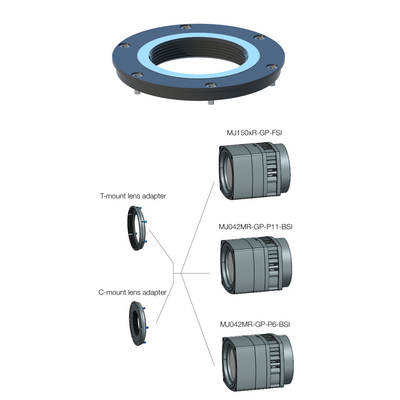

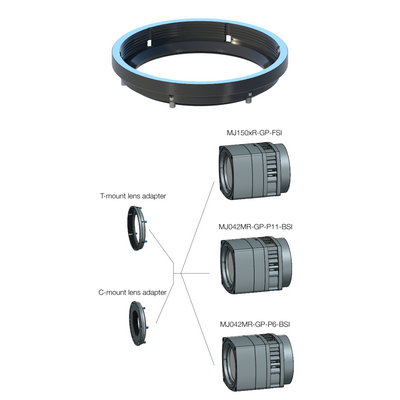

LA-MJ-C-MOUNT-A-KIT
C-mount lens ring
Compare
Add to cart
LA-MJ-T-MOUNT-A-KIT
T-mount lens ring
