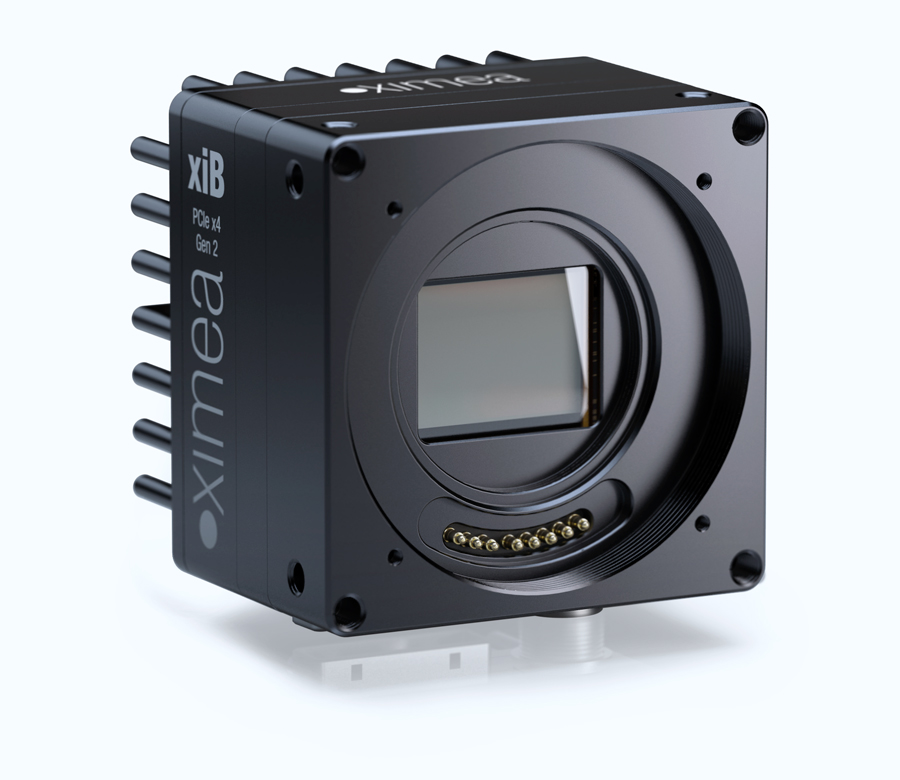

CB120MG-CM
High resolution camera with 12.5 Mpix Monochrome CMOSIS CMV12000 and PCIe Gen 2 interface
Product statusActive
Sensor vendorCMOSIS
Sensor modelCMV12000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate138 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
High resolution (up to 50 Mpix) Global shutter sensors without motion artifacts
DIVERSE
Large format full frame 35 mm sensors including taped glass versions
COMPACT
Periscope like design and a size of mere 60 x 60 x 36 mm simplifies multi-camera setups for 360 panorama applications
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure
Specification
|
Sensor properties
|
||
| Resolution | 12.5 MPix | |
| Sensor resolution | 4096 x 3072 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV12000 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | APS-C | |
| Sensor active area | 22 x 16 mm | |
| Sensor diagonal | 28.2 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 138 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| On-chip decimation | 1x1, 2x2 | |
| Interface | PCIe Gen 2 | |
| Data interface speed | 16 Gbit/s | |
| Data connector type | PCIe-iPass-X4G2 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 22 µs | |
| Exposure maximum | 117 s | |
| Power consumption | 7.4 Watt | |
| Heat dissipation | Natural convection, Optional Heatsink | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 57.3 dB | |
| Full well Capacity | 13500 e- | |
| Saturation Capacity | 10195.6 e- | |
| Readout noise | 13.4 e- | |
| Signal to noise ratio | 40.4 dB | |
| Peak QE | 46% | |
| Gain analog max | 63 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 60 x 60 x 36 mm | |
| Mass - weight | 159 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
VR and AR
Virtual and augmented reality. High definition Motion capture and tracking, 360 Panorama, 3D Face and body scanner for video games
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping and surveying with UAV / UAS drones or autonomous vehicles.
Broadcasting
Cinematography, Entertainment, Instant replays for sports imaging - baseball, tennis, football, basketball and more. Print and Film scanning.
Security
Wide area motion scanning and boarder or stadium surveillance, people counting, Geographical Information Systems (GIS), Aviation
Machine vision
Industrial and Factory Automation, Production line monitoring, Sorting, Electronics bonding examination, assemblies defect detection, Gauging.
Medical and Scientific
Medical technology, Material and Life science microscopy (IR-DIC), Genomics, Pharmaceutical,
Patient diagnostics, Biometrics and Cell biology.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB), Photovoltaics, Metrology, Electroluminescence on Solar panels, Semiconductor wafer scanning.
