Embedded vision camera zone

xiX - Super fast high resolution camera family and platform

xiC-rechts-cut

Documents and details

xiX-infographic-cooperation-black-menu
xiX and xiC - Embedded vision cameras infographics
Overview of various versions and options possible through modularity of the camera architecture. Clear benefits for classic system integrators or startups with new ideas that are offered through the diversity of multiple setups. All with a small footprint and detachable parts or switchable sets of components.
xiX-slide-black-diagram-embedded-multiple-cameras-setup-vision
xSwitch - Embedded vision systems infographics
This document explains XIMEA concept for embedded vision systems. Topology, cables (e.g. flat-flex ribbon), switches, boards, adapters - presenting a plethora of various interchangeable elements allowing to assemble a system with a perfect fit for your particular application. Easy to compile, easy to exchange and suitable for remote operation.
VR-AR-360-panorama-embedded-vision-multiple-camera-setup-system-applications
Application examples of embedded camera systems
360 panorama, augmented or virtual reality (AR, VR), autonomous self-driving vehicles, street/city mapping, deep learning tasks, stereo camera systems, portable medical devices, 3D scanning, entertainment, photogrammetry, FACS scanning, face recognition, motion capture, UAV/UAS (drones), cinematography, videogrammetry, LoLa (low latency audio visual streaming).
NVIDIA_logo_horizontal
NVIDIA Jetson TX1/TX2
xiX cameras and carrier boards are the ideal solution for designing portable, compact embedded vision systems. They offer high resolution, high data bandwidth, modular architecture, and the smallest form factor. The cameras provide the highest speed of data transmission while consuming the least amount of power. They are designed to be customized and offer the fastest time to market path with exhaustive customer support.

Comparison of embedded camera and sensor interfaces


  LVDS
  subLVDS
  MIPI CSI-2
  C-PHY
  USB/GigE

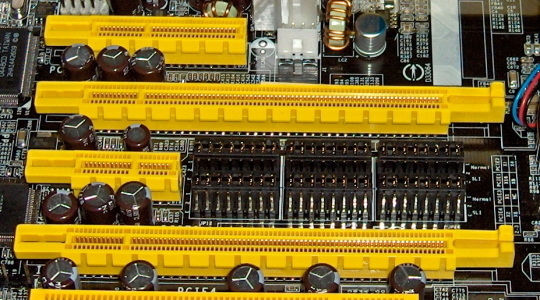

  PCIe
Standard No Yes Yes Yes
Imager HW overhead Low Low High Medium
Imager SW overhead Medium Low High Low
Processor HW overhead High Medium High Low
Processor SW overhead Medium Medium High Low
Multiple imagers No No Yes Yes
Latency Low Low High Yes
Power consumption Low Low Medium Medium
Distance mm to cm mm to m cm to 100 m mm to 100 m
Bandwidth per lane, in GB/s 0.3 ... 3 2.5 0.5 ... 10 2.5 ... 8
Number of lanes 1 ... 64 1 ... 4 1 1 ... 16
Aggregated bandwidth, in GB/s 0.3 ... 200 2.5 ... 10 0.5 ... 10 2.5 ... 128

Camera models and accessories

xiX-picture-vector-Embedded-vision-Multiple-cameras-setup-compact-fast

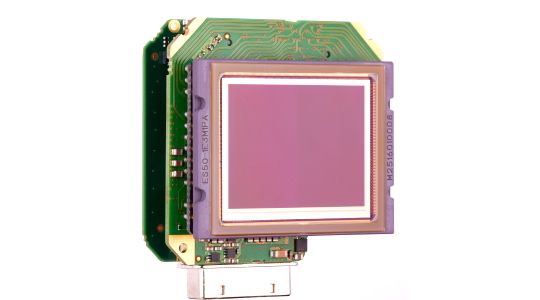

xiX
Compact form factor cameras with high-speed data connections and sensor options for nearly all imaging needs with flexibility for multi-camera configurations.
Detached-cobra-no-shadow
xiX - Xtreme
Maximized performance from Sony Pregius™ sensors in a flexible and small package - let these Xtreme cameras fit where you need them and outperform all the rest.
xiX-XL-High-resolution-large-medium-format-sensor-backside-illuminated-BSI-Sony-CMOS-cameras-IMX411-IMX461
xiX - XL
When size matters: large sensor formats and ultra-high resolutions up to 151 Mpix, paired with efficient interfaces and modular housing designs.
multi-camera-setup-low-latency-system
Adapters, cables and other accessories
Interconnects with miscellaneous systems. Mini PCIe, M.2, PCIe x4, x8, iPass, USB- Flat flex ribbon cables or iPass cables.Adapter boards, Hosts, Switches, GPIO.
Carrier_board_NVIDIA_Jetson_camera-white
Carrier board for NVIDIA Jetson and cameras
Sony CMOS Pregius™ line up to 12.4 Mpix. Ams CMOSIS CMOS line with new CMV50000. 2 to 50 MP at full sensor speed. Multi camera use in embedded vision systems.
xSwitch-black-menu-multiple-camera-setup
Switches for multi camera connections
Multiple inputs for various interface slots. Compact multiplexor for 4 - 12 cameras. Single high speed 64 Gbits output cable. Simultaneous synchronization and triggering.

Embedded Vision and multiple camera system applications

ultra-fast-scanning_man
Ultra-fast scanning
3D and Facial action coding scanning (FACS), Face recognition, Eye Tracking, Body scanner, People counting. High definition Motion capture.
VR-AR-360-panorama-embedded-vision-multiple-camera-setup-system-applications
VR and AR
Virtual and augmented reality: 360 spherical Panorama, cyclorama imaging, HMC - head mounted camera, Stereo camera systems.
Aerial-mapping-photogrammetry-city-videogrammetry-UAV-drone-applications
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping, Wide area motion imaging, stadium and border surveillance.
Robotic-arm-portable-remotely-controlled-alignment-automation-applications
Robotics
Accurate robotic arms, Deep learning tasks, Portable medical devices and Remotely controlled miniature robots, Alignment and assembly.
Portable-drone-vehicle-autonomous-self-driving-unmanned-aerial-UAV-applications
Vehicles
Autonomous, self-driving, Unmanned aerial vehicles (UAV) and Unmanned aircraft systems (UAS), Advanced driver assistance systems (ADAS), drones.
Broadcasting-sport-tennis-rapid-movements-campture-instant-replays-applications
Broadcasting
Cinematography, Entertainment, Instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.
PCB-Quality-inspection-wafer-semiconductor-section-applications
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.
Lola-low-latency-audio-video-streaming-concert-applications
LoLa
Ideal for Low Latency audio and visual streaming systems used in Education or Commercial Film, Television and Studio Production.
