What is xiB-64?

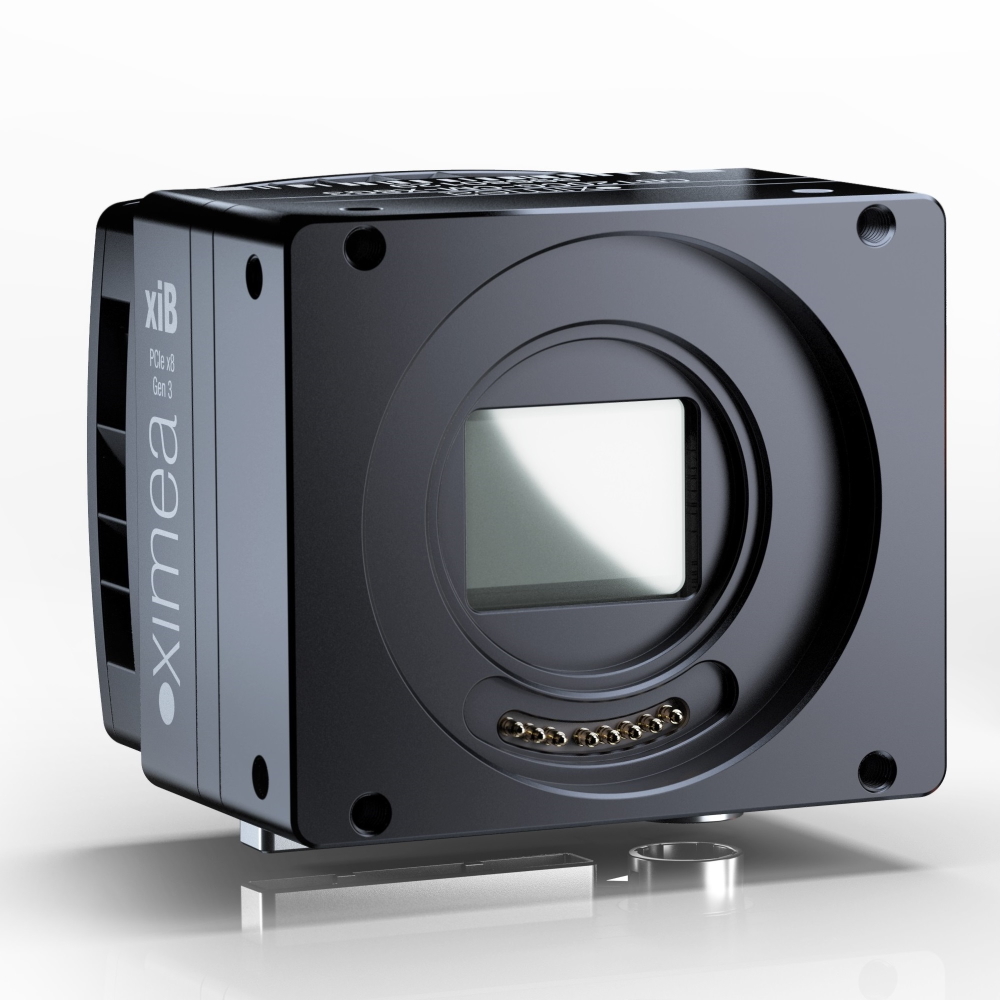

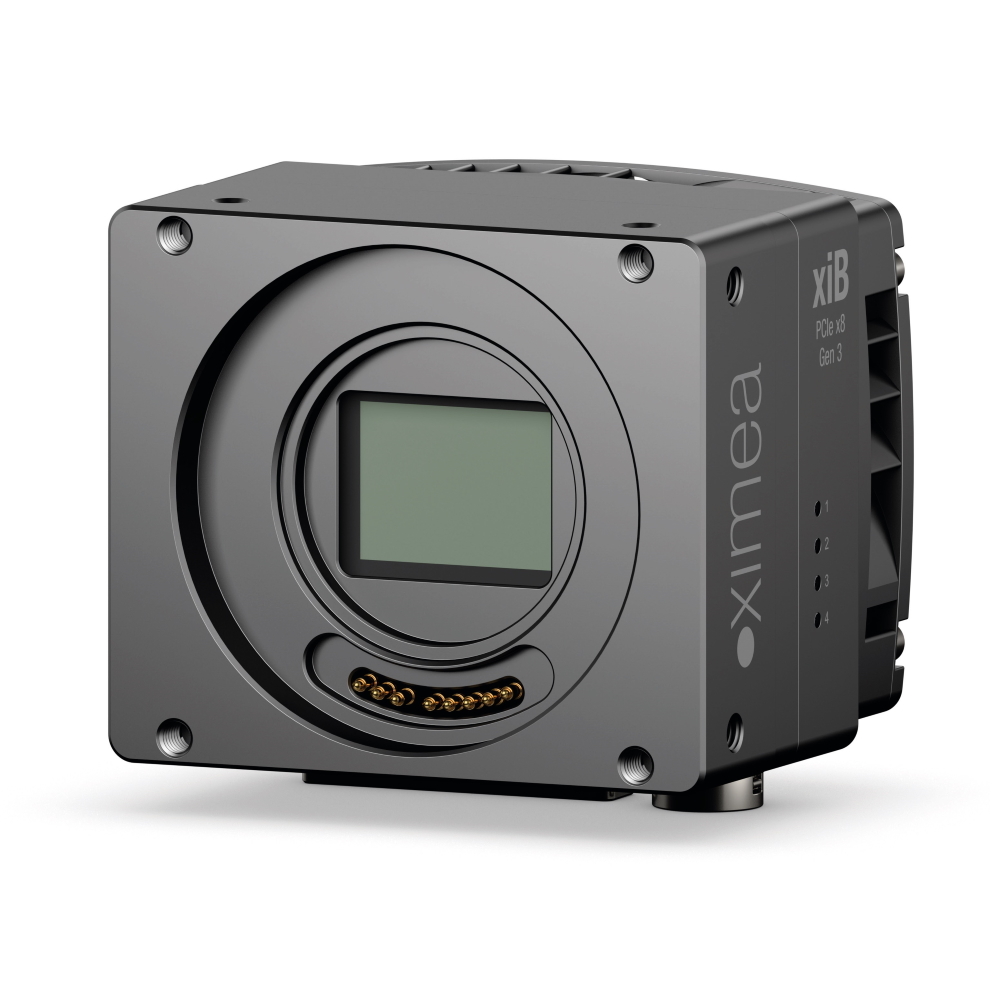

The xiB-64 cameras stream images to the host computer via 8 lanes on a PCI Express Gen3 bus, boasting a 64 Gbit/s sustainable transfer rate.
Due to the underlying technology, there is no additional latency and hardly any CPU load.
This series does not compromise and is extremely useful where the highest data rates are required, either for simultaneous speed, bit depth, and resolution or for extremely high frame rates. It features high-speed sensors (1.3 Mpix at > 3500 FPS) all the way to ultra high-res sensors with unmatched framerates (65 Mpix at 72 FPS). An integrated 4 GB buffer ensures that no frames are dropped. The cameras can be fully synchronized with their multiple GPIOs.

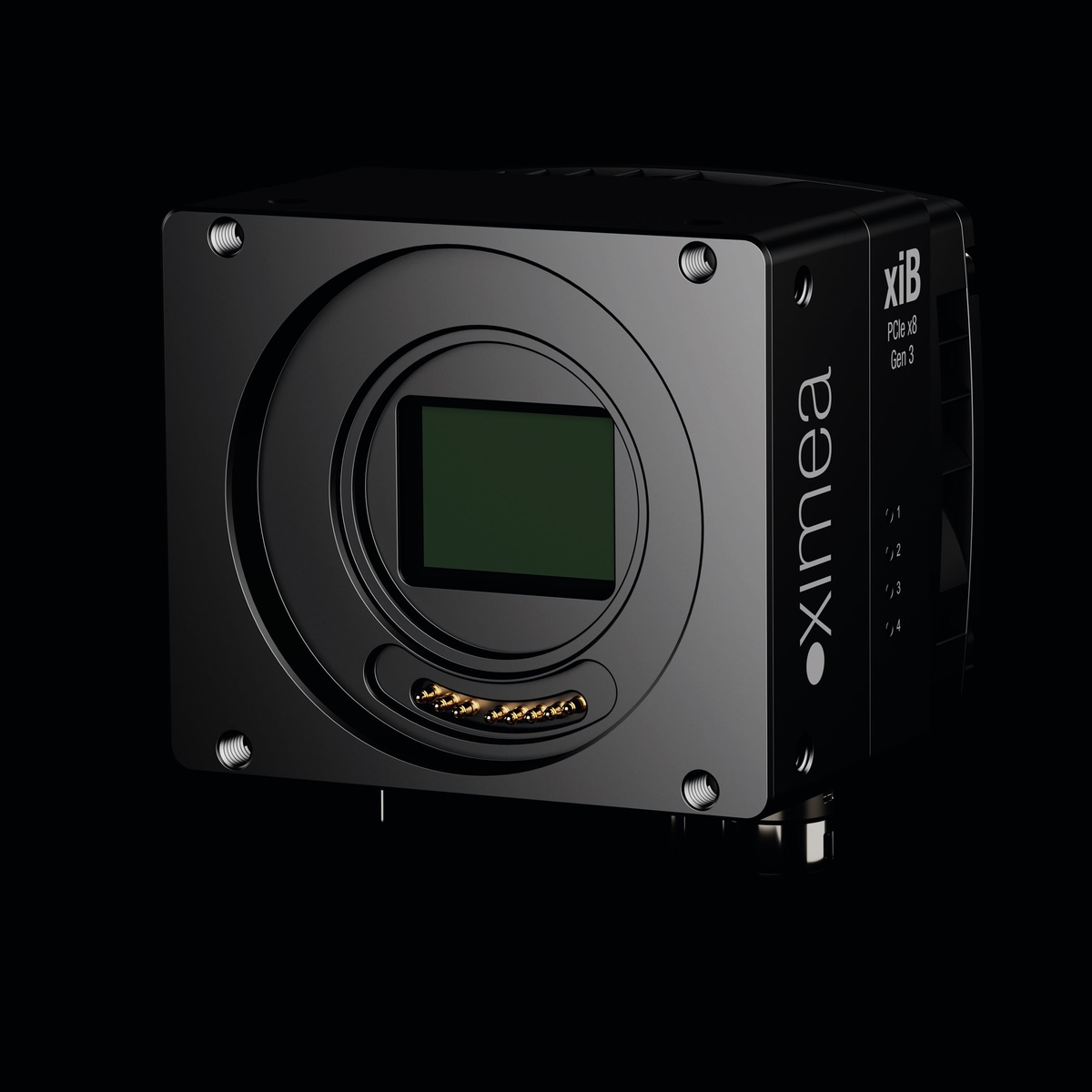

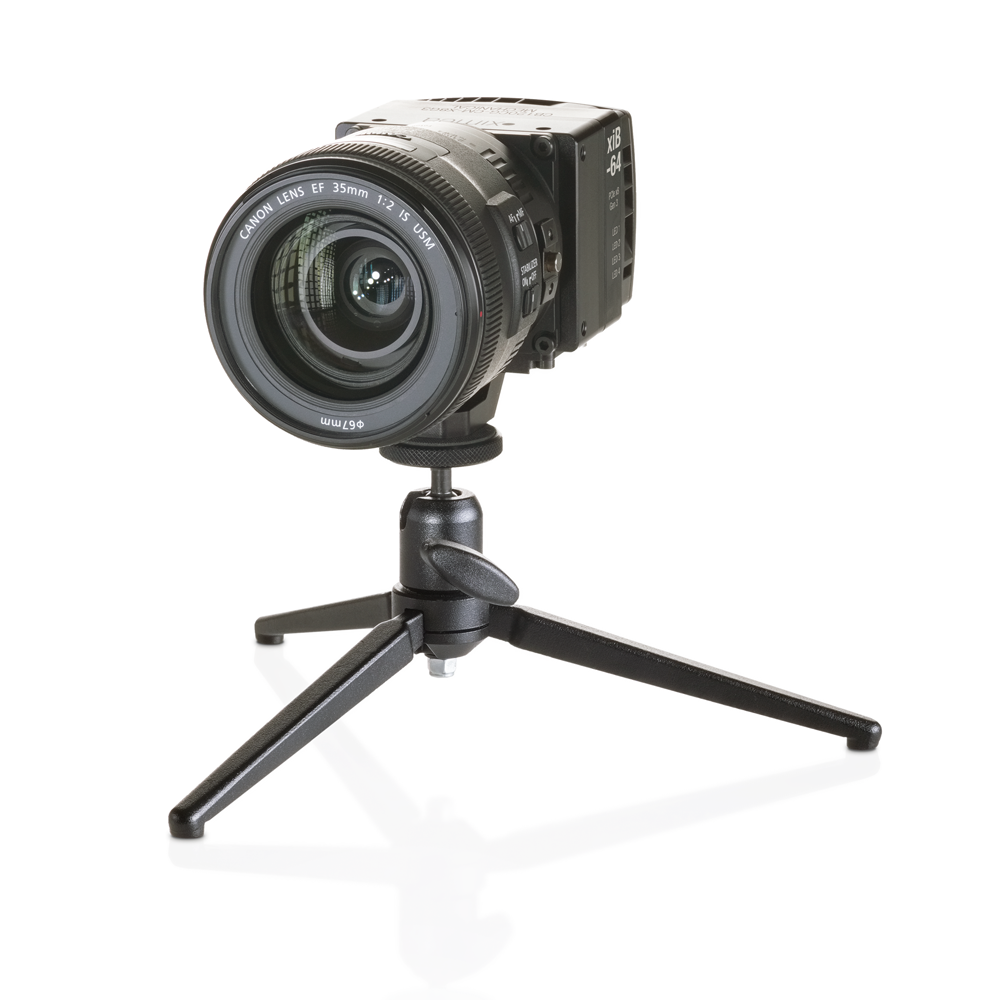

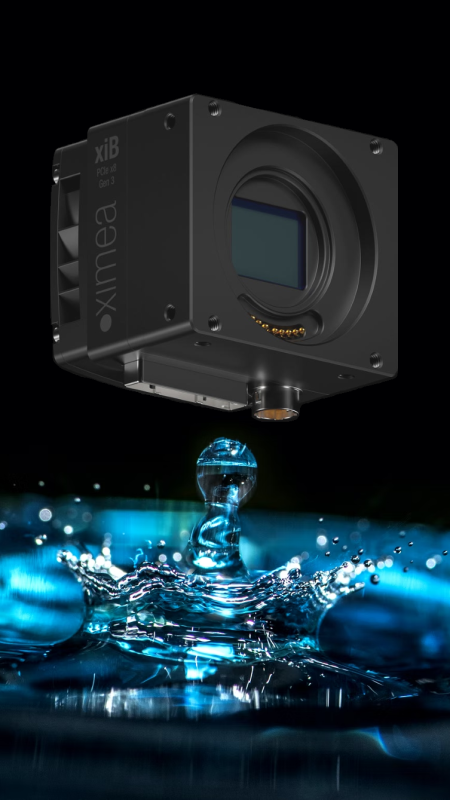

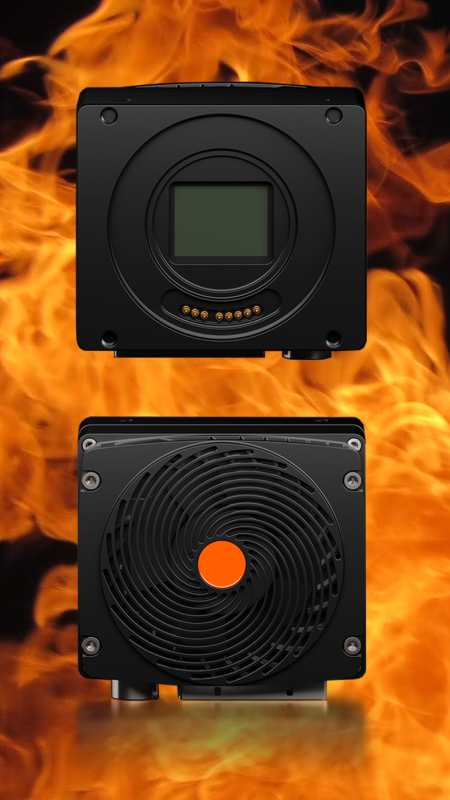

The active EF lens mount adapter enables the combination with a wide array of superb optics, with direct control over the aperture and the focus.
The use of optical fiber cables allows distances up to 100 m between cameras and host computer without any performance penalty and even 300 m with reductions in frame rate. Put your camera where the action is: Monitor and record high-speed activity from a distance.

Fastest overall speed - 64 Gbit/s, with real bandwidth of 7000 MB/s
High resolution up to 65 Mpix, fast sensors 1 Mpix at 3500+ FPS
Future potential - Highest speed utilizing of PCIe x8 Gen3 interface
Long reach - Can work with optical cable at 300 m distances

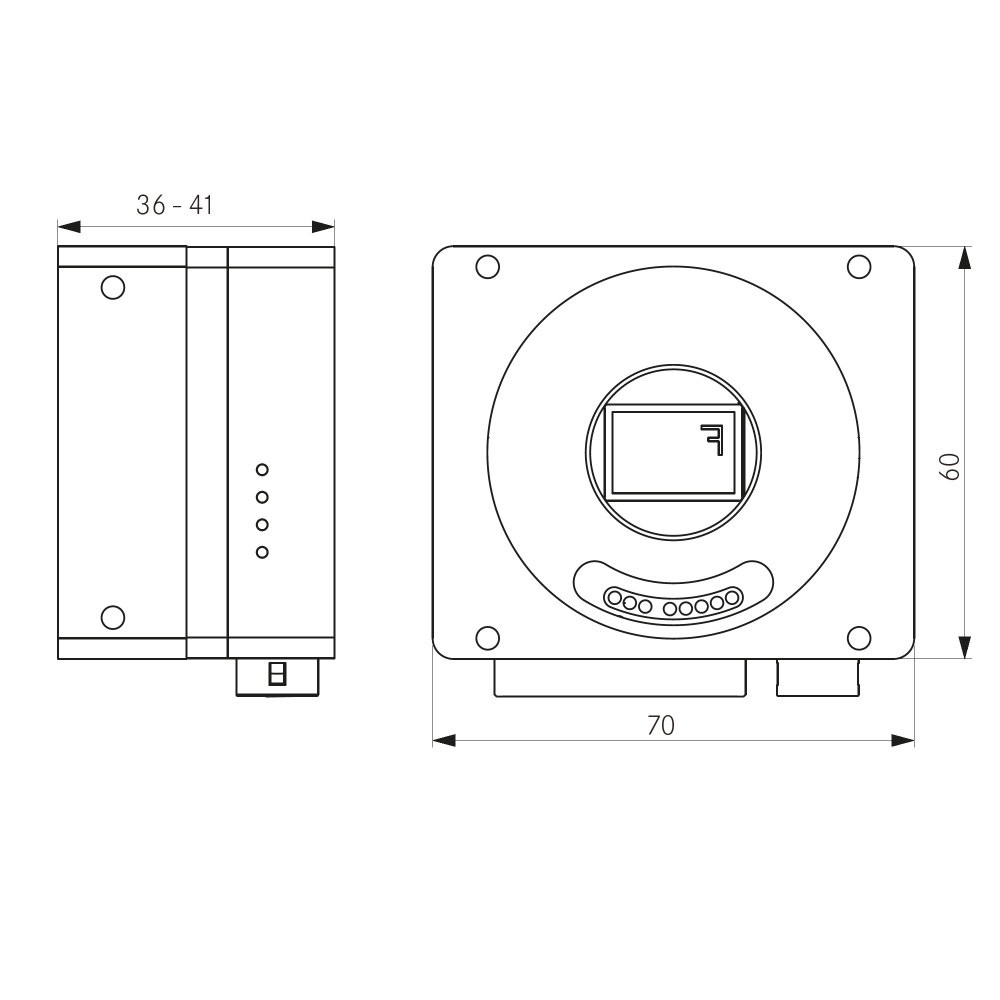

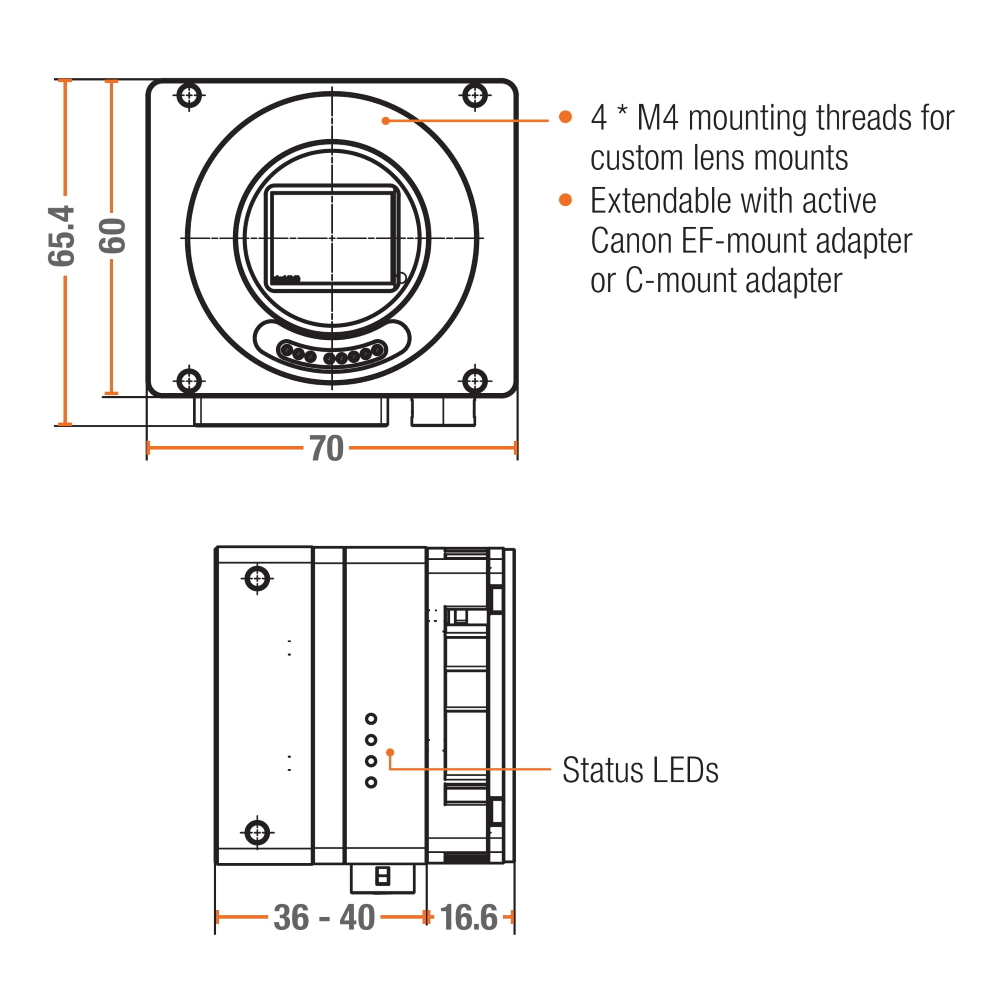

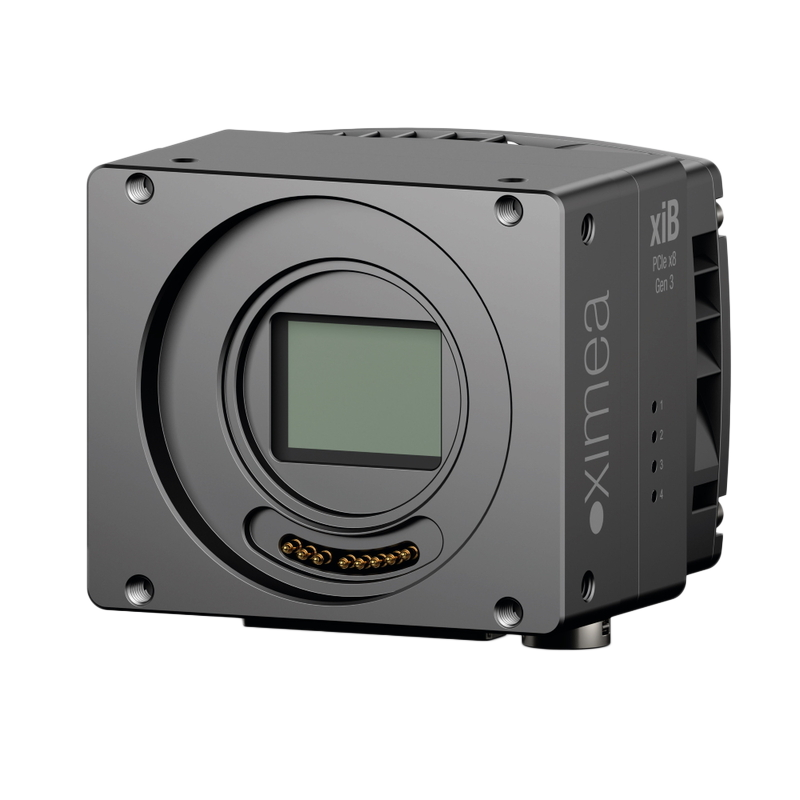

Versatile mini camera - Subtle 60 x 70 x 55 mm, weight of mere 268 grams

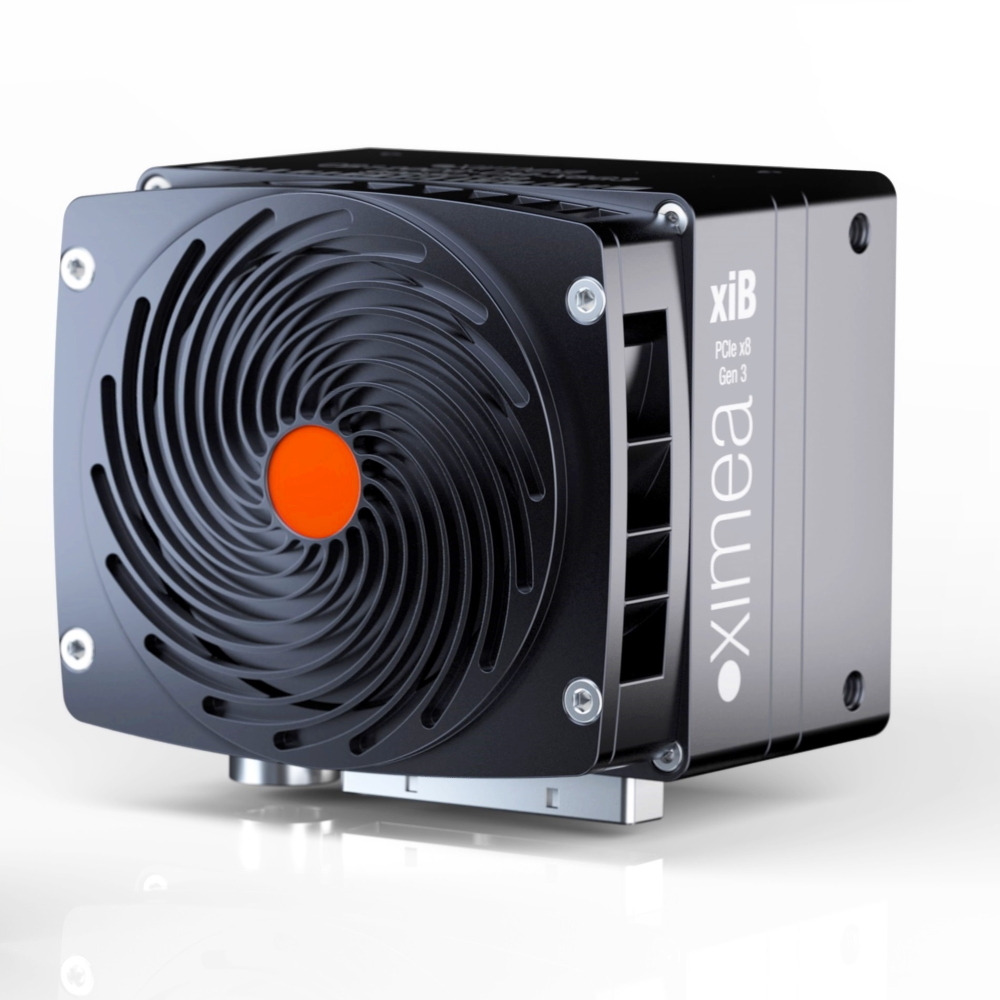

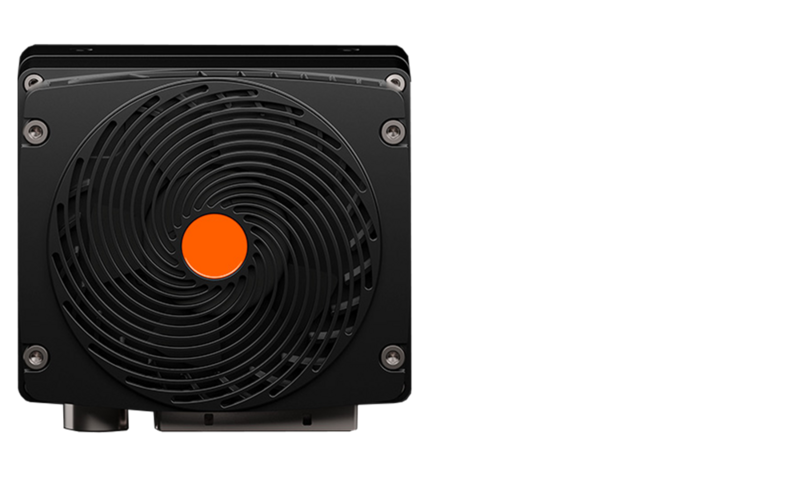

Cool - Minimal heat dissipation with additional fan cooling
Power efficient - Low power consumption of around 17 watts
Compatible - Support for Windows 7 and 10, Linux, macOS, ARM
Synchronization - 2/2 isolated GPI/GPO, 4 programmable status LEDs
Interface complies with PCI Express external cabling specifications
Active EF-mount allows remote control of aperture and focus
Temperature control with heatsink or water block
Range of various accessories and no need in frame grabbers

Models and sensors

High speed and high resolution Monochrome and Color models.

Model	Resolution	Sensor type	Sensor model	Sensor resolution	Sensor size	Pixel size	Bits	Frame rate
CB013MG-LX-X8G3	1.1 MPix	Monochrome	LUX13HS	1280 x 864	4/3"	13.7 µm	10 bits	3709 FPS
CB013CG-LX-X8G3	1.1 MPix	Color	LUX13HS	1280 x 864	4/3"	13.7 µm	10 bits	3709 FPS
CB013CG-LX-X8G3-R2	1.1 MPix	Color	LUX13HS	1280 x 864	4/3"	13.7 µm	10 bits	3675 FPS
CB013MG-LX-X8G3-R2	1.1 MPix	Monochrome	LUX13HS	1280 x 864	4/3"	13.7 µm	10 bits	3675 FPS
CB019CG-LX-X8G3	2 MPix	Color	LUX19HS	1920 x 1080	4/3"	10 µm	10 bits	2279 FPS
CB019MG-LX-X8G3	2 MPix	Monochrome	LUX19HS	1920 x 1080	4/3"	10 µm	10 bits	2279 FPS
CB024CG-GP-X8G3	2.4 MPix	Color	GSPRINT4502	2048 x 1216	2/3"	4.5 µm	8,10,12 bits	2400 FPS
CB024MG-GP-X8G3	2.4 MPix	Monochrome	GSPRINT4502	2048 x 1216	2/3"	4.5 µm	8,10,12 bits	2400 FPS
CB100MG-GP-X8G3-SFF	10 MPix	Monochrome	GSPRINT4510	4608 x 2176	4/3"	4.5 µm	8,10,12 bits	600 FPS
CB100CG-GP-X8G3-SFF	10 MPix	Color	GSPRINT4510	4608 x 2176	4/3"	4.5 µm	8,10,12 bits	600 FPS
CB120CG-CM-X8G3	12.5 MPix	Color	CMV12000	4096 x 3072	APS-C	5.5 µm	8,10,12 bits	335 FPS
CB120MG-CM-X8G3	12.5 MPix	Monochrome	CMV12000	4096 x 3072	APS-C	5.5 µm	8,10,12 bits	335 FPS
CB160MG-LX-X8G3	16.1 MPix	Monochrome	LUX160	4704 x 3424	4/3"	3.9 µm	10 bits	311 FPS
CB160CG-LX-X8G3	16.1 MPix	Color	LUX160	4704 x 3424	4/3"	3.9 µm	10 bits	311 FPS
CB209CG-GP-X8G3	20.9 MPix	Color	GSPRINT4521	5120 x 4096	APS-C	4.5 µm	8,10,12 bits	300 FPS
CB209MG-GP-X8G3	20.9 MPix	Monochrome	GSPRINT4521	5120 x 4096	APS-C	4.5 µm	8,10,12 bits	300 FPS
CB262MG-GP-X8G3	26.2 MPix	Monochrome	GMAX0505	5120 x 5120	1.2"	2.5 µm	10,12 bits	150 FPS
CB262CG-GP-X8G3	26.2 MPix	Color	GMAX0505	5120 x 5120	1.2"	2.5 µm	10,12 bits	150 FPS
CB262RG-GP-X8G3	26.2 MPix	NIR	GMAX0505 Red Fox	5120 x 5120	1.2"	2.5 µm	10,12 bits	150 FPS
CB654CG-GP-X8G3	65.4 MPix	Color	GMAX3265	9344 x 7000	2.3"	3.2 µm	10,12 bits	71 FPS
CB654MG-GP-X8G3	65.4 MPix	Monochrome	GMAX3265	9344 x 7000	2.3"	3.2 µm	10,12 bits	71 FPS

SWIPE FOR MORE

Full resolution at RAW 8 bits; Server computers with bigger PCIe TLP packet size can increase the throughput by an additional 10%.

Keyfacts

Advantages for high speed and high resolution applications

PRECISE

High resolution (up to 64 Mpix) global shutter sensors without motion artifacts.

DIVERSE

Large format 35 mm sensors including taped glass versions.

FAST

High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.

LOW-LATENCY

Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.

COMPACT

Periscope like design and a size of mere 60 x 70 x 55 mm simplifies multi-camera setups for 360 panorama applications.

FUNCTIONAL

Active Canon EF-mount option for aperture and focus control through the camera.

ROBUST

Full metal housing, CNC-machined with precision, no moving parts or sheet metal covers for maximum stability and durability.

ECONOMICAL

No frame grabber required.

COMPATIBLE

Windows, Linux, MacOS. Support for various machine vision libraries.

Applications

Fast speed camera ideal for these industries and applications

Machine vision

Industrial and factory automation, production line monitoring, electronics bonding examination, assemblies defect detection, gauging.

PIV-particle-image-velocimetry-micro-LIF-laser-induced-fluorescence-applications

Rapid process

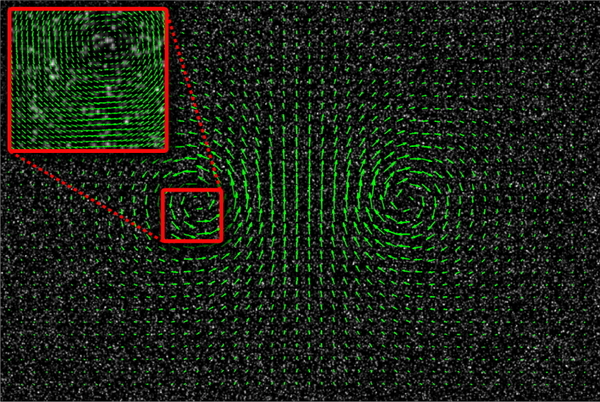

Flow visualization and flight, bullet, glass dynamics, digital image correlation (DIC), fluidics and particle image velocimetry (PIV), laser illumination, schlieren.

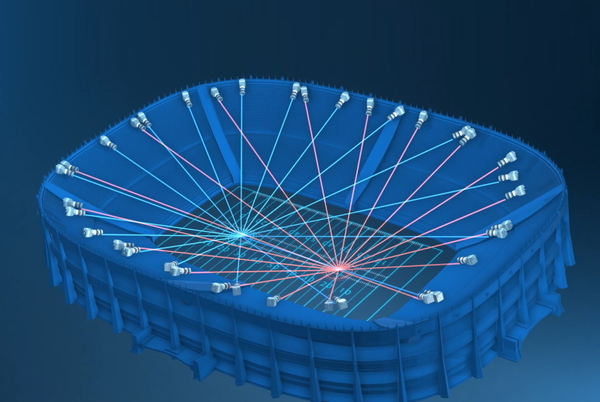

Broadcasting

Cinematography, entertainment, instant replays for sports imaging - baseball, tennis, football, basketball, golf, ping pong and more. Print and film scanning.

Scientific

Cell sorting, microfluidics, neurology, animal behavior, flight kinematics, walking mechanics, force vector analysis, fluorescence microscopy.

High speed

Projectile, explosives, ballistics, combustion and missile launch tracking, vehicle impact, airbag deployment, safety restraints testing.

PCB-inspection-quality-printed-circuit-board-scanning-FPD-applications

Quality inspection

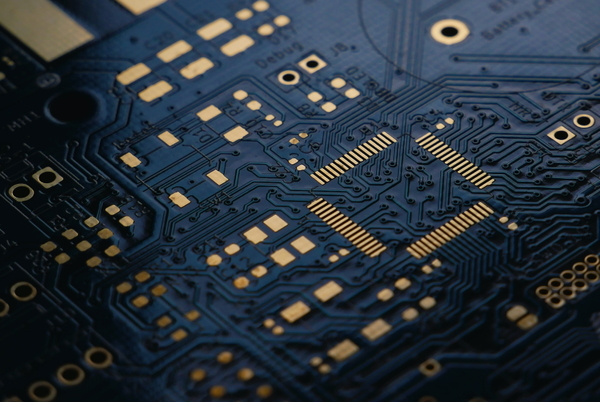

Flat panel display (FPD), printed circuit board (PCB), photovoltaics, metrology, electroluminescence on solar panels, semiconductor wafer scanning.
