Thunderbolt cameras - xiT

Thunderbolt enabled industrial cameras

Camera models offered for high volume projects only

World's first industrial Thunderbolt™ 2 enabled cameras
Resolutions from 2.3 Mpix to 20 Mpix
Speeds 165 fps and 30 fps respectively
Sony Pregius™ pixel technology
Smallest design: 26 x 26 x 38 mm (small model)
Support for Windows, macOS (Linux and 30 Libraries prepared)
No frame grabbers, powered by Thunderbolt cable

certified thunderbolt camera CMOS CMOSIS Sony IMX174

XIMEA presents unique Thunderbolt™ 2 enabled cameras that currently include models with the newest sensors from Sony (IMX174) and CMOSIS (CMV20000).

MT200 model is further equipped with an active EF-mount interface for control of dynamic aperture and focus. Falcon Ridge 4C dual port makes daisy chain interconnection possible. MT023 model is exceptionally compact with 26x26x38mm and can be bus powered removing the need for additional cables.

MT200 is CERTIFIED and MT023 is CERTIFIED, which approves XIMEA to ship both models with Thunderbolt Trademark and Logo for PC and Mac.

Minimal system requirements when using with XIMEA CamTool: Windows 32/64 and macOS, Intel Core i5, 400MB, 3GB RAM (for recording to h264)

Thunderbolt interface camera models

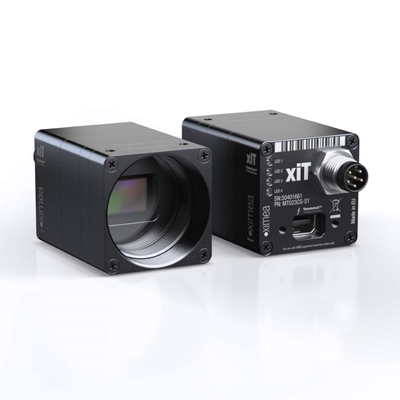

MT023MG-SY

SONY IMX174 industrial mono thunderbolt camera

Resolution: 2.3 MPixSensor resolution: 1936 x 1216 Interface: Thunderbolt™ Frame rate: 166 FPSSensor technology: CMOS Sensor size: 1/1.2" Sensor vendor: SONY Sensor model: IMX174 Enclosure type: Standard housing Sensor type: Monochrome Camera family: xiT

Compare Add to cart

MT023CG-SY

SONY IMX174 industrial color thunderbolt camera

Resolution: 2.3 MPixSensor resolution: 1936 x 1216 Interface: Thunderbolt™ Frame rate: 166 FPSSensor technology: CMOS Sensor size: 1/1.2" Sensor vendor: SONY Sensor model: IMX174 Enclosure type: Standard housing Sensor type: Color Camera family: xiT

Compare Add to cart

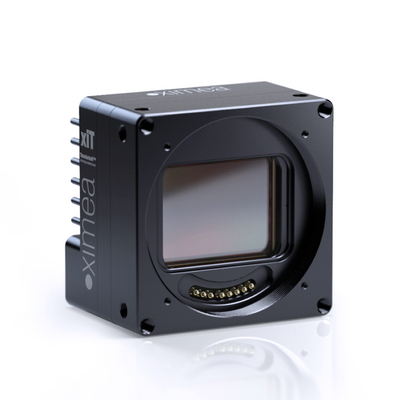

MT200MG-CM

CMOSIS CMV20000 industrial mono thunderbolt camera

Resolution: 19.6 MPixSensor resolution: 5120 x 3840 Interface: Thunderbolt™ 2 Frame rate: 32 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: CMOSIS Sensor model: CMV20000 Enclosure type: Standard housing Sensor type: Monochrome Camera family: xiT

Compare Add to cart

MT200CG-CM

CMOSIS CMV20000 industrial color thunderbolt camera

Resolution: 19.6 MPixSensor resolution: 5120 x 3840 Interface: Thunderbolt™ 2 Frame rate: 32 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: CMOSIS Sensor model: CMV20000 Enclosure type: Standard housing Sensor type: Color Camera family: xiT

Compare Add to cart
