Case Study: Metal Surface Inspection system

Image 1

LCI

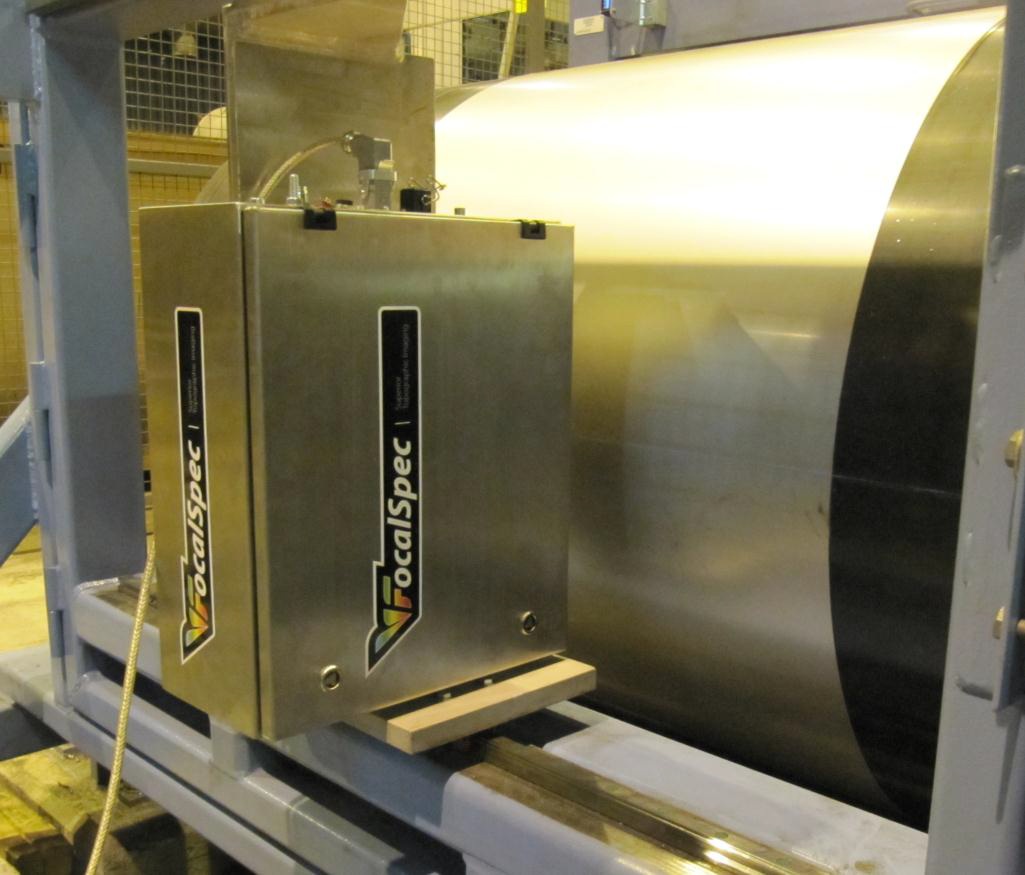

The SQM1200 measures the surface topography and gloss profiles as well as the thickness of coatings and transparent interfaces with submicron accuracy.

The system generates micro-topography maps and characterization through a newly patented Lateral Chromatic Imaging (LCI) technique.

This makes it capable of making high-precision measurements at metal-forming and coating at production speed - see Image 1.

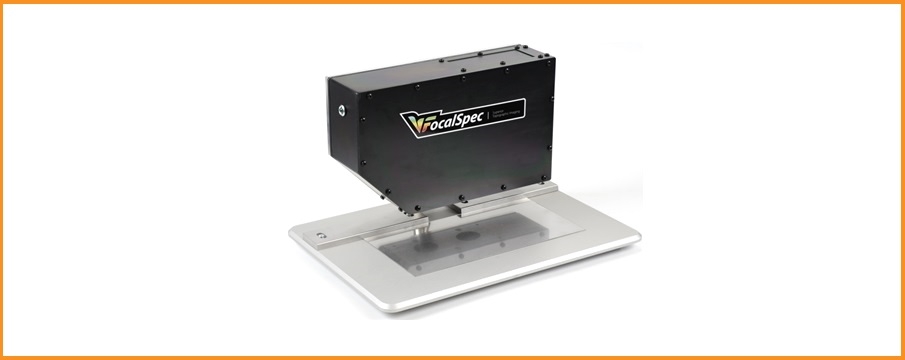

EP300 system measures sheet metal edge and burr height 3-D profile in a non-contact fashion - see Image 2.

LCI technology determines the distance to a surface based on special spectral illumination and hyperspectral imaging.

The technique is applicable for diffuse, glossy, colored, and transparent surfaces.

It also can be applied to thickness measurement of transparent objects, transparent coatings on non-transparent objects.

Originally developed at the VTT Technical Research Centre of Finland, it is fast, accurate, and immune to many disturbances present in industrial environments.

SQM

With a standoff distance of 75 mm, the SQM1200 maintains sub-micron accuracy even in the presence of large pass-line vibration.

The SQM1200 measures instant profiles of a surface using short pulsed LED illumination.

Each profile is made up of 1000 data points across an area that measures 50 µm x 6000 µm.

The vertical profile capability is up to 6000 µm and repeatability better than 1 µm.

The SQM 1200’s gloss measurement range is 0-1999 GU with a repeatability of 0.5 GU.

The operating range and resolution of the sensor are scalable to the application requirements through changing the internal optics if required.

Positive pressure purges the internal inspection area, helping the system to avoid false measurements from contamination while minimizing maintenance.

Intelligent Camera Simplifies System Development

“We chose the CURRERA-R intelligent PC camera because the camera has a number of advantages: it is a compact and rugged smart camera with user friendly development environment  and XIMEA’s commitment to providing APIs for most commercial image processing libraries allowed us to quickly develop the imaging system,” explains Dr. Karri Niemela, CTO of FocalSpec Oy. “The FocalSpec team tested a number of cameras and vendors and came to rely on XIMEA and its support team for their reliability and responsiveness.”
