Case Study: iCub Robot using CURRERA R to navigate

Method

Who was behind the project:

1. Vishnu Nath (Principal Investigator) – Vishnu Nath is currently working as a software engineer at Microsoft Corporation. He completed his MS and BS degrees from the University of Illinois at Urbana-Champaign. Vishnu has authored two books, and is the primary author of several research papers that have been presented at major academic conferences. Vishnu has also received various international awards and is also the member of several academic honor societies. He is the principal investigator in this project, and this project was done as part of his MS thesis.
2. Dr. Stephen Levinson (Vishnu’s MS thesis advisor) – From 1976 to 1997, he worked at AT&T Bell Laboratories, from 1990 to 1997, as head of the Linguistics and Research Department. He is a professor in the University of Illinois, Department of Electrical and Computer Engineering and a full-time Beckman Institute faculty member in the Artificial Intelligence Group.

Current Liaison between Ximea and UIUC:

1. Onyeama Osugwu - He is pursuing an M.S. in Applied Mathematics, and an M.S. and Ph.D. in Electrical and Computer Engineering at the University of Illinois at Urbana-Champaign. He is currently working at the Beckman Institute under the advisement of Professor Stephen Levinson, and was a research colleague of Vishnu.

Project Components:

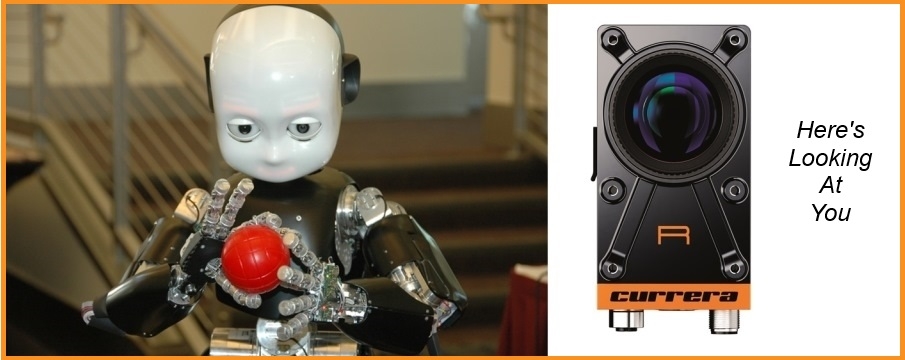

For the successful completion of the project, the most important components were the iCub robot itself and the CURRERA Starter Kit (with CURRERA RL04C camera).

The starter kit also came with demo applications of a variety of computer vision libraries. The computer vision library that was utilized for this experiment was the OpenCV library.

All the vision related processing was performed by the CURRERA camera. This includes the determination of all the internal and external edges of the maze and the initial position of the ball.

This information was then transmitted to the iCub to store it in its RAM, freeing up the CURRERA camera to deal exclusively with the live camera feed and its processing.

CURRERA unit is responsible for detecting the edge markers, the centroid of the ball and its current relative position at all times with respect to the markers.

Further important tasks also included filtering out other possible candidates for being the ball (possible with objects having similar HSV values) and for making sure that the entire board is visible at all times.

These are done by the process of inverse homography and the entire computation is done within the CURRERA unit itself. Only the output is sent to the iCub for further processing.

We believe that the CURRERA unit was able to handle such loads seamlessly because of the Atom Z530 process and the 1GB RAM that it had, making it a powerful computer in its own right.

Camera Substitution

The iCub comes with two cameras of its own. However, they are CCD based while the CURRERA is CMOS based. These cameras are always prone to noise and slow speeds.

Due to these performance reasons, the original camera of the iCub was removed and was replaced with the CURRERA camera.

Base of the skull of the iCub contains the PC104, which covers the entire interior of the skull. As a result, the camera is not visible from the back of the robot, but can be seen as the iris of an eye from the front. All the wires from the BOB144 have been passed through the neck into the body and are connected to the iCub’s control systems so that the loop is maintained.

Identifying the ball

The first thing that is needed for the entire project to run is to determine what object(s) can be classified as the ball in question. Since the ball was going to be red in color, it seemed natural to program the CURRERA module to look for red objects, i.e. objects whose R value is high in the RGB value.

The following figure gives an indication of the range of values seen by the XIMEA CURRERA camera.

As a result of the small variation in the RGB values, the smart camera was programmed to look at the HSV values instead. The results were much more promising.

The camera accurately detected four corners of the maze, and could detect the ball easily. The corner detection and the resulting inverse homography are shown in the next 2 figures.

This represents almost complete information the camera outputs to the iCub for further processing.

Until this point, CURRERA has already performed a significant amount of computer vision processing. The camera has detected the four edges of the board, the internal paths of the board, the relative position of the ball and performed an inverse homography in real time.

Yet there is something even more amazing that CURRERA can perform that made it perfect for this project. It also able to segment the image and its path (based on the HSV values), so that the iCub can generate the optimum path right away.

Furthermore, it can also detect the start and end points of the maze as well, based on the tags attached to the maze. The following figures show the true computing capability of the CURRERA camera.

The information conveyed in figures 5, 7,9 and 10 is sent to the iCub processor to conduct the next part of the project, which is to apply the artificial intelligence algorithms for further processing and being able to solve any maze.

Thus, with the rules generated (figure 13) and all the information stored in the memory, the iCub relies on the live feed streaming from the CURRERA camera to ensure that the ball is on path and is able to make decisions to guide the ball accurately from the start to the finish point.
