xiMU
MU9PM-MH

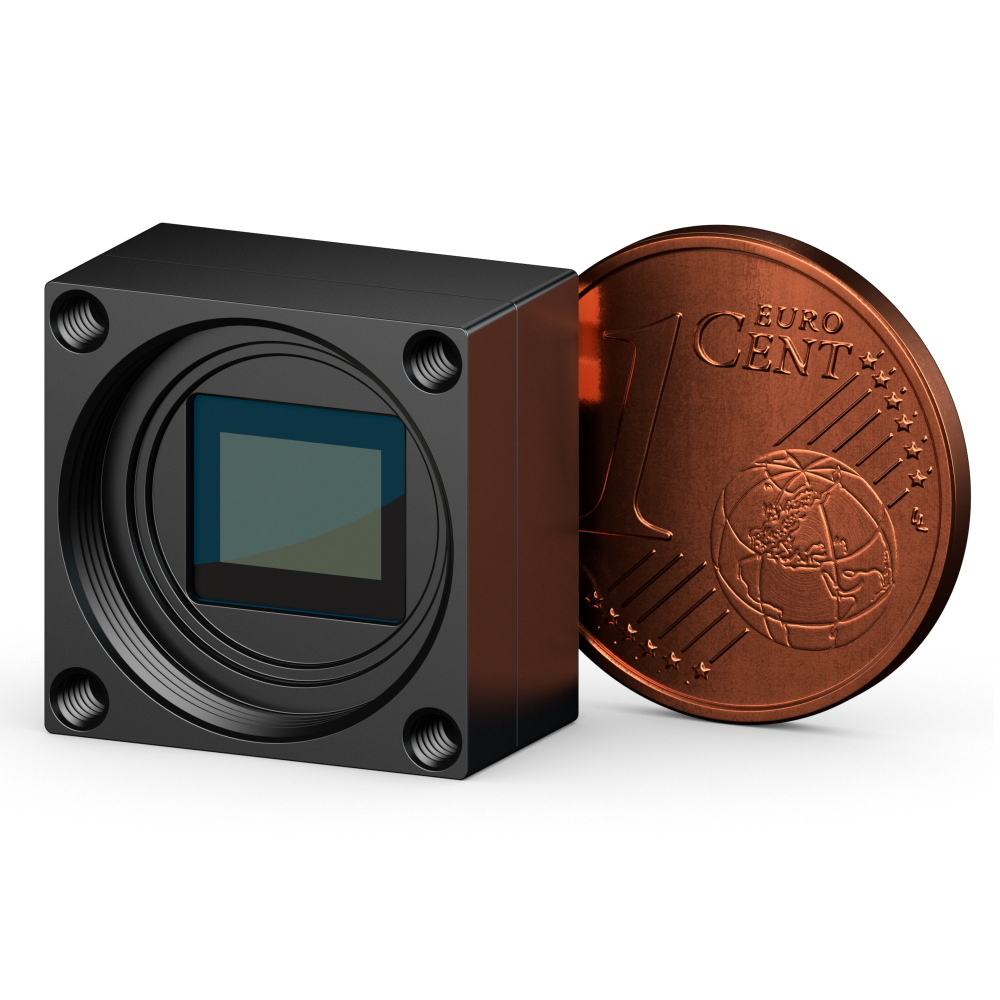

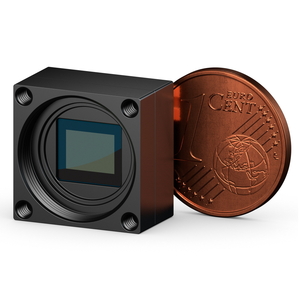

Miniature camera with 5 Mpix Monochrome Aptina MT9P031 CMOS sensor and USB 2.0 interface

Product statusActive
Sensor vendorAptina
Sensor modelMT9P031
Sensor technologyCMOS
Shutter typeRolling shutter, Global reset release
Frame rate4.6 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlight_Precise
PRECISE
High-resolution sensors up to 19.6 Mpix with backside illumination
Highlight_Smallest
SMALLEST
Fits into places where no other comparable camera can fit
Highlight_Light-weight
LIGHT-WEIGHT
Payload-friendly SWaP for mobile, robotics, gimbals, or UAV/UAS applications
Highlight_Adaptable
ADAPTABLE
Easy to use with a choice of connections like type-C, incredibly compact flex ribbon cable or micro-coax
Specification
Sensor properties
Resolution 5 MPix
Sensor resolution 2592 x 1944
Sensor vendor Aptina
Sensor model MT9P031
Sensor type Monochrome
Sensor technology CMOS
Sensor size 1/2.5"
Sensor active area 5.7 x 4.3 mm
Sensor diagonal 7.1 mm
Pixel size 2.2 µm
Shutter type Rolling shutter, Global reset release
Camera properties
Frame rate 4.6 FPS
Bits 12 bits
On-chip downsampling 1x1, 2x2, 4x4, 6x6, 7x7
On-chip decimation 1x1, 2x2, 4x4, 6x6, 7x7
Interface USB 2.0
Data interface speed 0.4 Gbit/s
Data connector type USB2 Flex cable
GPIO count Inputs: 4, Outputs: 4
Exposure minimum 110 µs
Exposure maximum 10 s
Power consumption 0.76 Watt
Heat dissipation Natural convection
Sensor cooling No
Special features Single board, Smallest size
EMVA 1288 results
Dynamic range 59 dB
Saturation Capacity 4900 e-
Readout noise 5 e-
Signal to noise ratio 37 dB
Peak QE 63%
Gain analog max 38 dB

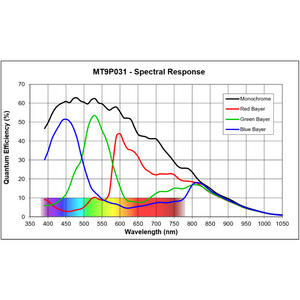

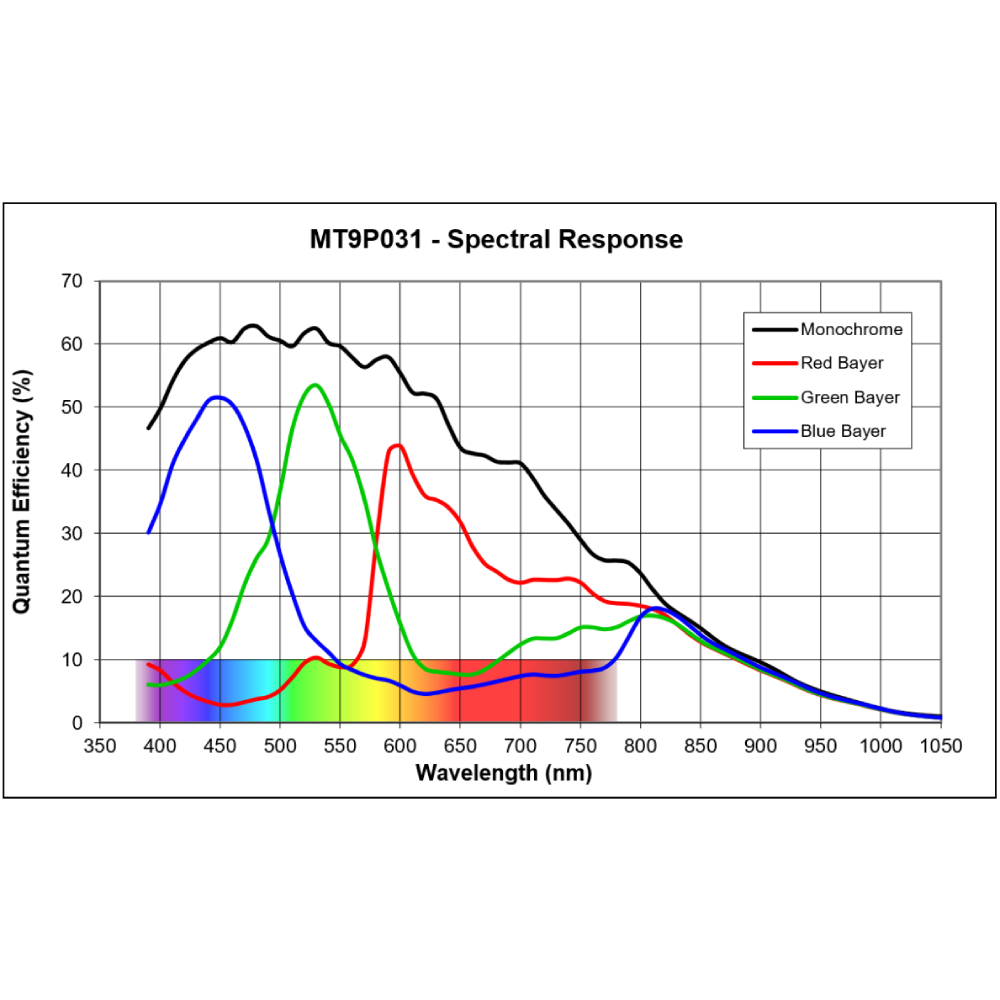

Spectral Range 400 - 1000 nm
Mechanical properties
Lens mount S-mount
Enclosure type Standard housing

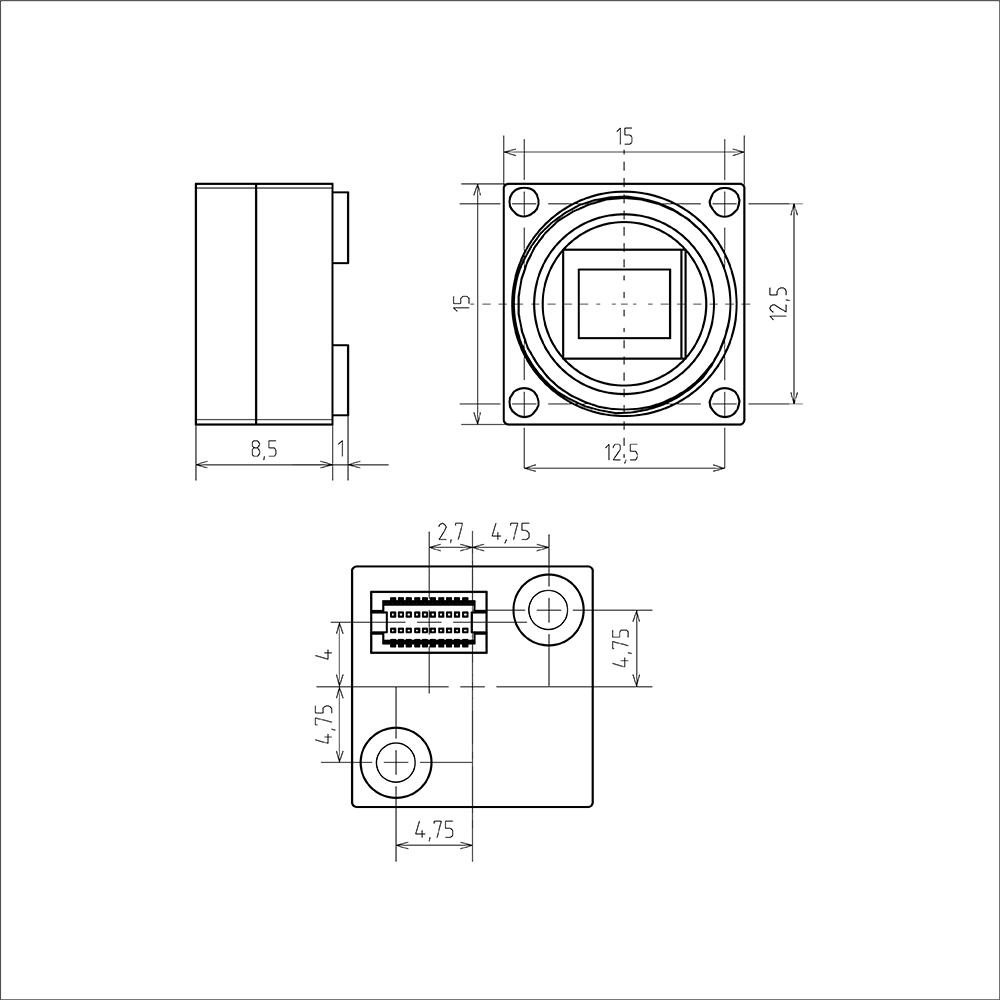

Physical dimensions (WHD) 15 x 15 x 8.5 mm
Mass - weight 3.4 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiMU family

Technology


Sensor technology CMOS
Acquisition modes Global shutter and Rolling shutter
Digital Output 8, 10, 12 bit RAW pixel data digitization

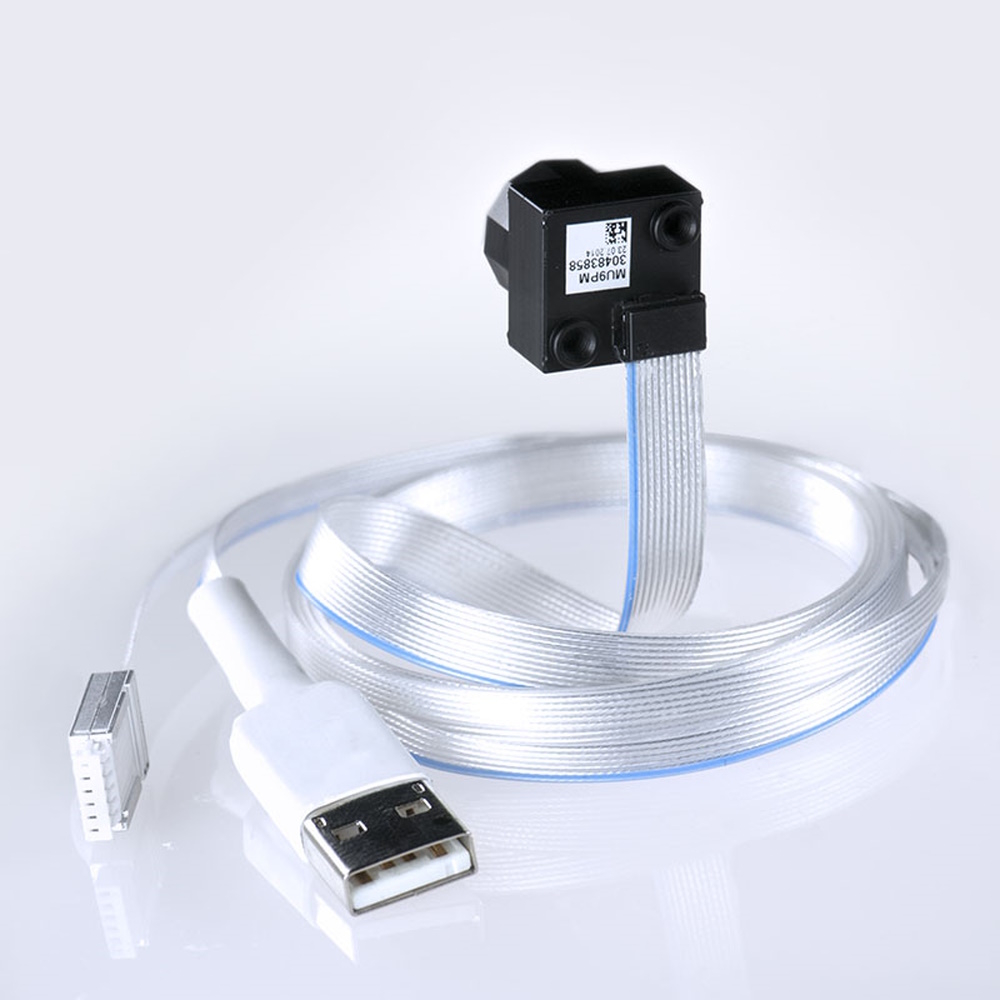

USB 2.0 interface Micro connector with USB 2.0 High-speed and digital I/O
USB3 Interface USB 3.1 Gen1 with Type-C connector or flexible flat ribbon connector for embedded vision systems
General purpose I/O 4x IO configurable as input or output
Synchronization Hardware trigger input, software trigger, exposure active, frame active, trigger ready, exposure active pulse, busy
Power requirements 0.76 Watt supplied via USB 2.0 interface, 1.4Watt supplied via USB 3.0 interface
Lens mount Standard S-mount (M12), two lens mount adapters available, and board level version

Processing


Partial image readout ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, compatible USB host adapter

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, WEEE, GenICam/GenTL, Universal Serial Bus Specification

Miniature xiMU camera Industries and Applications

Miniature-glasses-dentist-white
Miniature
Stop motion animation, HMC - head mounted camera, Kiosks, Robotic arms, Face recognition, Eye Tracking, 3D Body scanner, People counting, security.
Microscopy
Medical and Scientific
Ophthalmology and Retinal imaging, Material and Life science microscopy, Differential interference contrast (DIC), Dentistry, Biometrics and Cell biology.
Aerial-mapping
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or self-driving vehicles.
Quality-inspection
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.
