Semiconductor and Wafer Vision Inspection Cameras Applications

At present, more and more quality and process control systems are switching from human components to automation.
This automation or automatization is enabled through the use of image processing which means involving machine vision type of cameras.

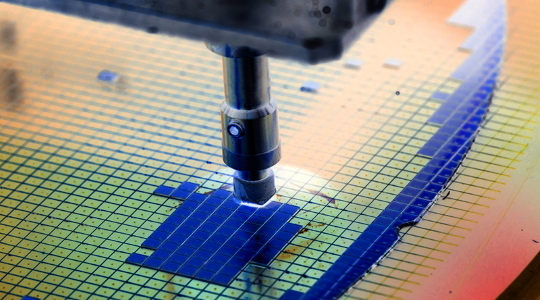

Automatic vision or optical inspection systems for semiconductors are used to identify and categorize faults on wafer samples. This ensures product quality control while also simplifying the procedure.
From car manufacturers to the smallest automotive workshops, the companies are saving a lot of resources by implementing Vision.
The areas where such products can be utilized include robotic guidance, welding, Photovoltaics, Print and Film scanning, Metrology and more.

Check below some of the typical examples and consider the suggested models for your particular requirements.
The XIMEA team is of course also happy to talk directly about the specifics to advise regarding the optimal camera choice.

The Green, renewable energy has become one of the major hopes for humanity in terms of future well being.
Companies active in photovoltaics or wind turbines all around the world are experiencing rising demand and thus increased quality concerns.

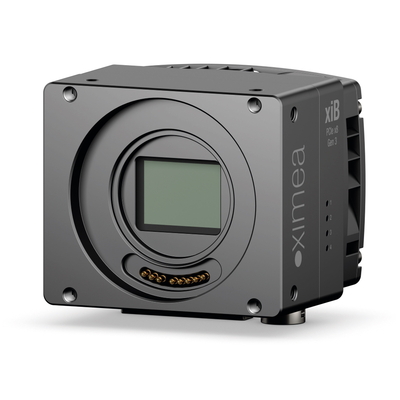

Machine vision camera models with upgraded components offer the highest parameters of speed, sensitivity, low noise and high resolution.

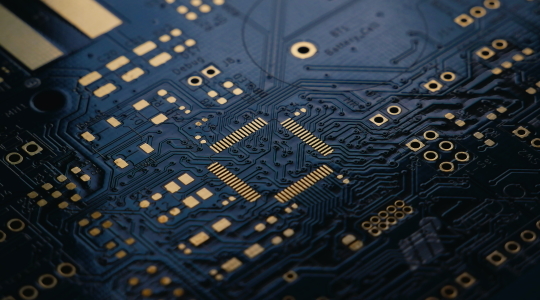

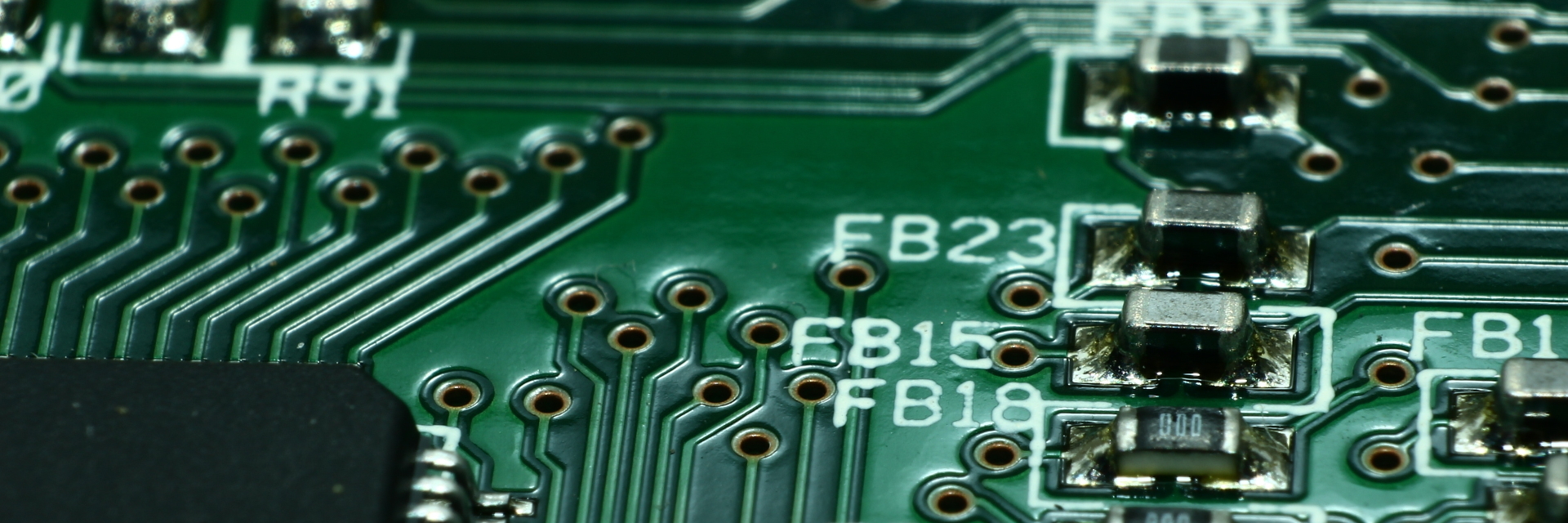

The XIMEA option is furthermore providing the easy synchronization of multiple units into a system and a simple setup for printed circuit board (PCB) inspection.

If you need the highest speed and resolution you are in the right place.

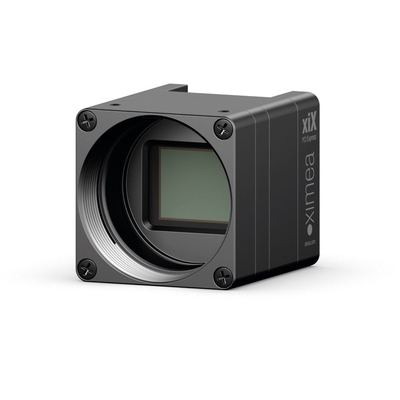

It is conveniently placed in the smallest form factor the industry provides.
