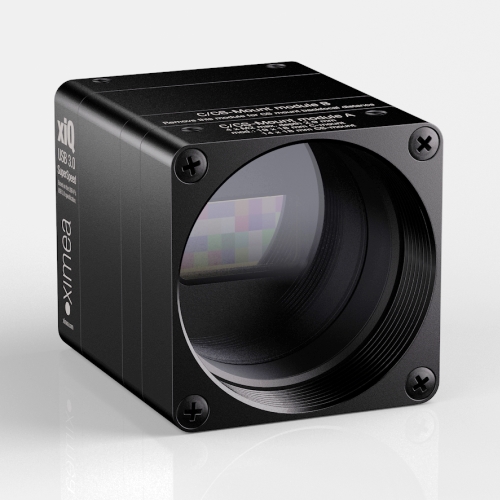

MQ022HG-IM-LS100-NIR
- Linescan model. Scans: up to 1360 lines/sec
- 100+ Bands, Spectral range 600-975 nm
- Spatial resolution equivalent: 2048 x 8 lines in 4 nm steps
- Smallest and lightest Hyperspectral camera: 26 x 26 x 31 mm, 32g
- 1.6 Watt and overall SWAP are ideal for Embedded vision systems
- USB3 Vision Compliant
Applications: Precision Agriculture, Remote Sensing, Forensics, DNA sequencers/flow cytometers, Medical Imaging (cancer cells inspection), Endoscopy, Fluorescence, Ophthalmology, Skin tones/tissue analysis, Material and Life science microscopy, Terrestrial/maritime earth observation, Space exploration, Astronomy, Environmental Monitoring, Security, Spectroscopy instrumentation, Optical sorting, Pharmaceutical, Food inspection (quality grading), Defect detection, UAV
Brochure
Manual
Product page
Support page
CONTACT SALES
Specifications: | |
Part Number | MQ022HG-IM-LS100-NIR |
Resolution | 2048 × 8 |
Frame rates | up to 1360 lines/sec |
Sensor model | IMEC LS100+ |
Sensor type | CMOS, Hyperspectral filters added at wafer-level |
Sensor size | 2/3" |
Sensor active area | 100+ Bands |
Spectral range | 600-975 nm |
Readout method | Linescan wedge |
Pixel size | 5.5 µm |
Digitization | 8, 10 bit RAW pixel data |
Data interface | USB 3.1 Gen1 or PCI Express (xiX camera model) |
I/O Ports | GPIO IN, OUT |
Power consumption | 1.6 Watt |
Lens mount | C or CS Mount |
Weight | 32 grams |
Dimensions WxHxD | 26 x 26 x 31 mm |
Operating temperature | 50 °C |
