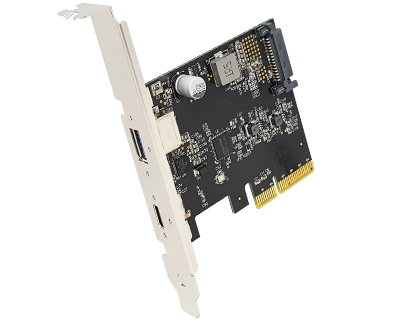

HA-1P-USB3-TC-X4G3-AS
XIMEA - Host adapter for xiJ cameras
Product statusActive
- Suitable for cameras from: xiJ family
- Host adapter for power delivery to cooled cameras
- 2-port: one Type-C with Power Delivery and another Type-A
- Type C Receptacle, USB IF TID 5200000315
- Type-A Receptacle, USB IF TID 360000145
- Asmedia ASM3142, USB IF TID 5080000010
- Compliant with Universal Serial Bus USB 3.1 specification
- Supports Source Power Delivery Profiles PDO1 & PDO2
- PDO1 (5V/3A) and PDO2 (12V/2.5A=30W)
- Provides USB 3.0 cable port lock mechanism
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
