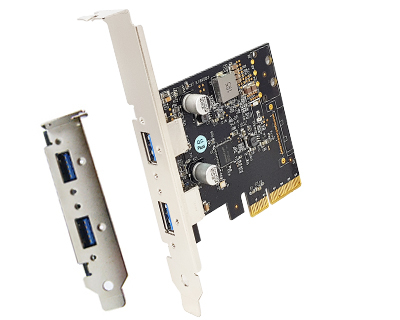

HA-2P-USB3-TA-X4G3-AS
XIMEA - Host card for xiJ cameras - 2 A
Product statusActive
- Suitable for cameras from: xiJ family
- Host adapter for power delivery to cooled cameras
- 2-port: both Type-A
- Type-A Receptacle, USB IF TID 360000145
- Asmedia ASM3142, USB IF TID 5080000010
- PCI Express x4 (x2 mode) Gen 3 Host Card
- Compliant with PCI Express Base Specification Revision 3.0
- Compliant with Universal Serial Bus 3.1 specification Revision 1.0
- Compliant with Intel's eXtensible Host Controller Interface (xHCI)
- Compliant with PCI Bus Power Management Interface Specification
- Support USB3.1 and USB2.0 Link Power Management
- Support independent port power control
- USB bus power from PCIe 12V (Step-Down)
- USB bus power from Power Connector (IDE 4-pin or SATA 15-pin)
- Provides USB 3.0 cable port lock mechanism
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
